Exploded View

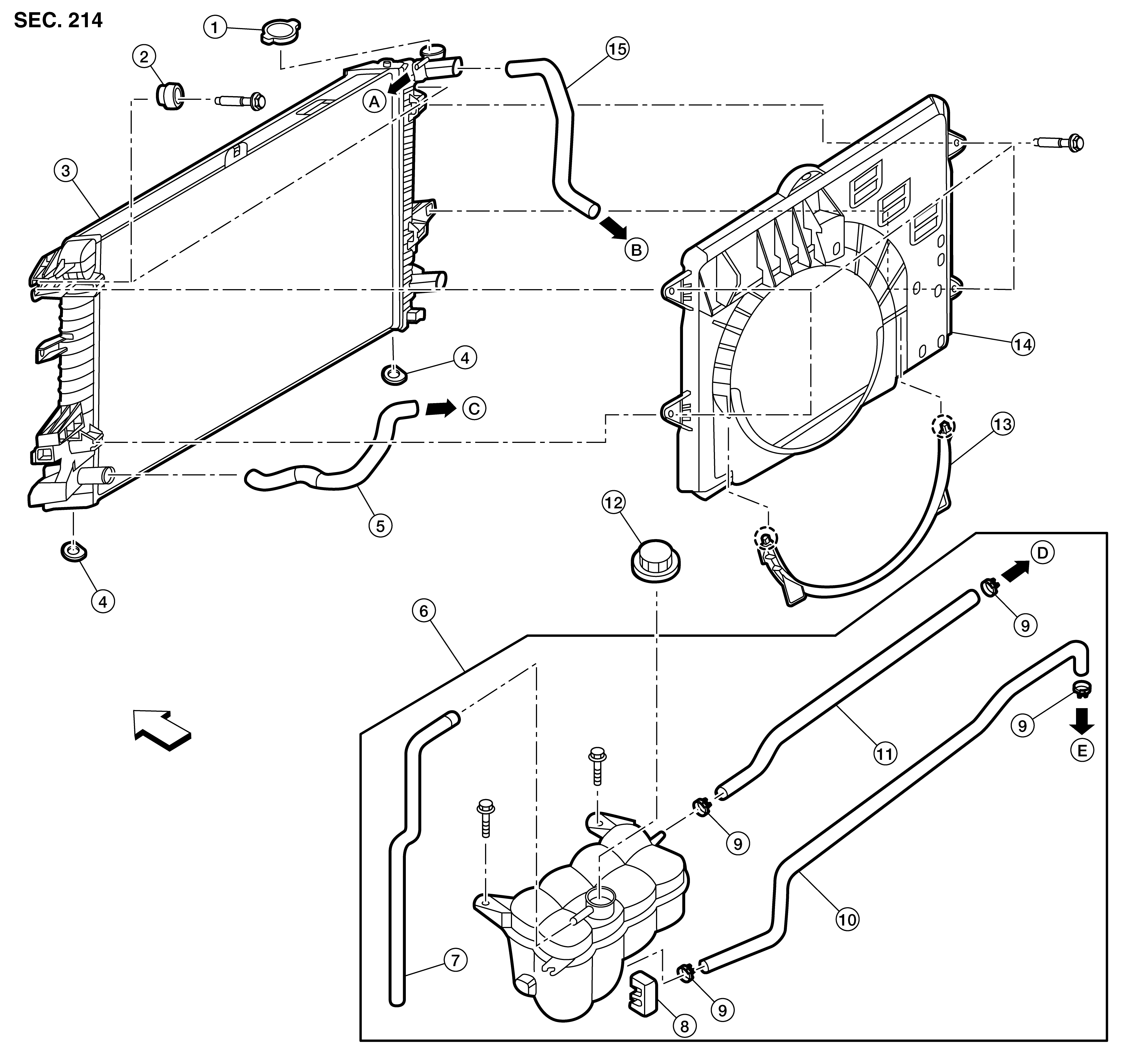

XD Models
|
1. |
Radiator cap |
2. |
Mounting rubber (upper) |
3. |
Radiator |
|
4. |
Mounting rubber (lower) |
5. |
Radiator hose (lower) |
6. |
Reservoir tank |
|
7. |
Reservoir tank overflow hose |
8. |
Clip |
9. |
Clamp |
|
10. |
Reservoir tank hose |
11. |
Radiator overflow hose |
12. |
Reservoir tank cap |
|
13. |
Fan shroud (lower) |
14. |
Fan shroud (upper) |
15. |
Radiator hose (upper) |
|
A. |
To radiator overflow hose |
B. |
To multi control valve. Refer to Exploded View . |
C. |
To water suction pipe. Refer to Exploded View . |
|
D. |
To radiator |
E. |
To multi control valve. Refer to Exploded View . |
|
Pawl |
|
|
Front |
||||

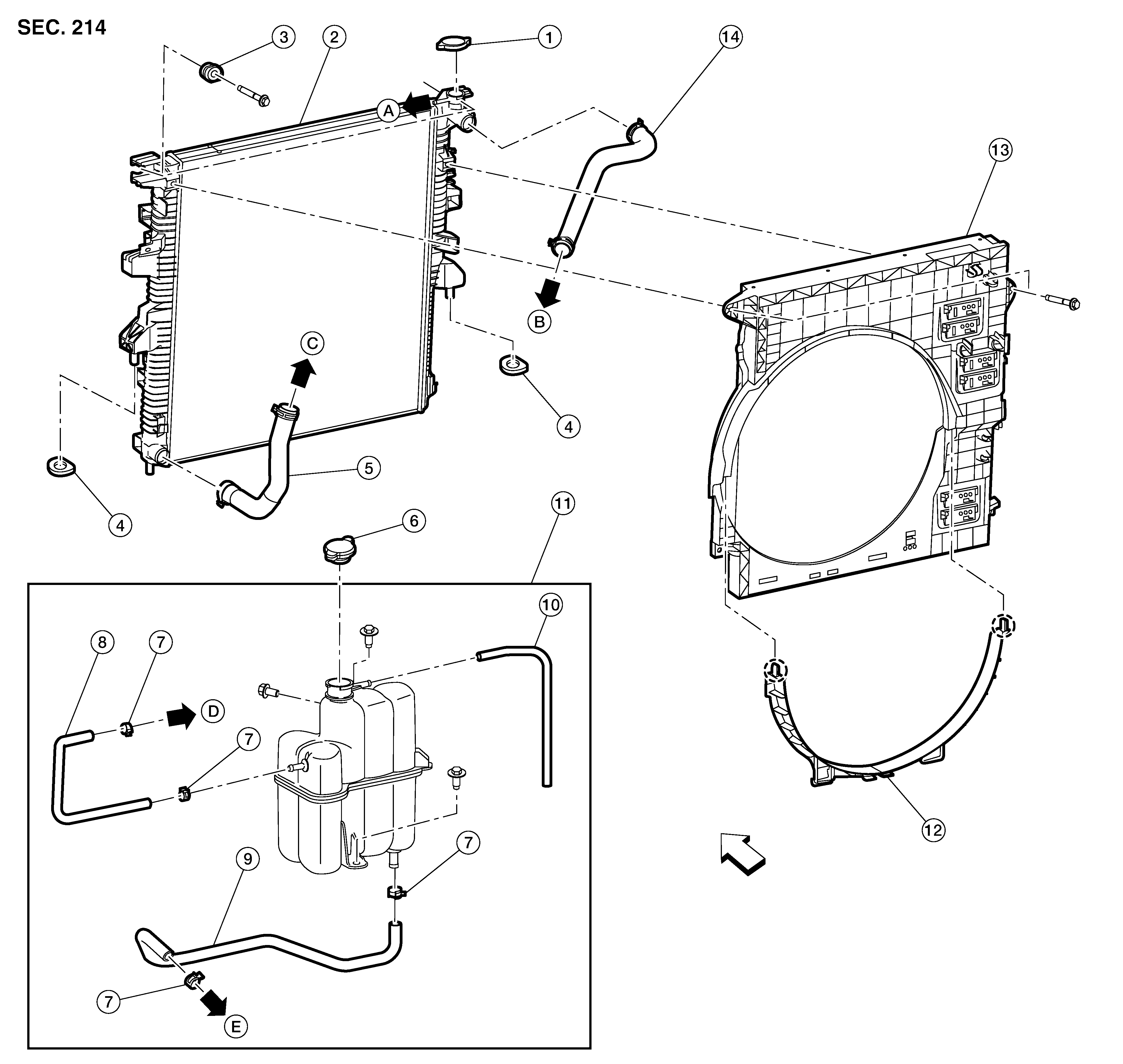

Non-XD Models
|
1. |
Radiator cap |
2. |
Radiator |
3. |
Mounting rubber (upper) |
|
4. |
Mounting rubber (lower) |
5. |
Radiator hose (lower) |
6. |
Reservoir tank cap |
|
7. |
Clamp |
8. |
Radiator overflow hose |
9. |
Reservoir tank hose |
|
10. |
Radiator overflow hose |
11. |
Reservoir tank |
12. |
Fan shroud (lower) |
|
13. |
Fan shroud (upper) |
14. |
Radiator hose (upper) |
A. |
To radiator overflow hose |
|
B. |
To multi control valve. Refer to Exploded View . |
C. |
To water suction pipe. Refer to Exploded View . |
D. |
To radiator |
|
E. |
To multi control valve. Refer to Exploded View . |
|
Pawl |
|
Front |
