Exploded View

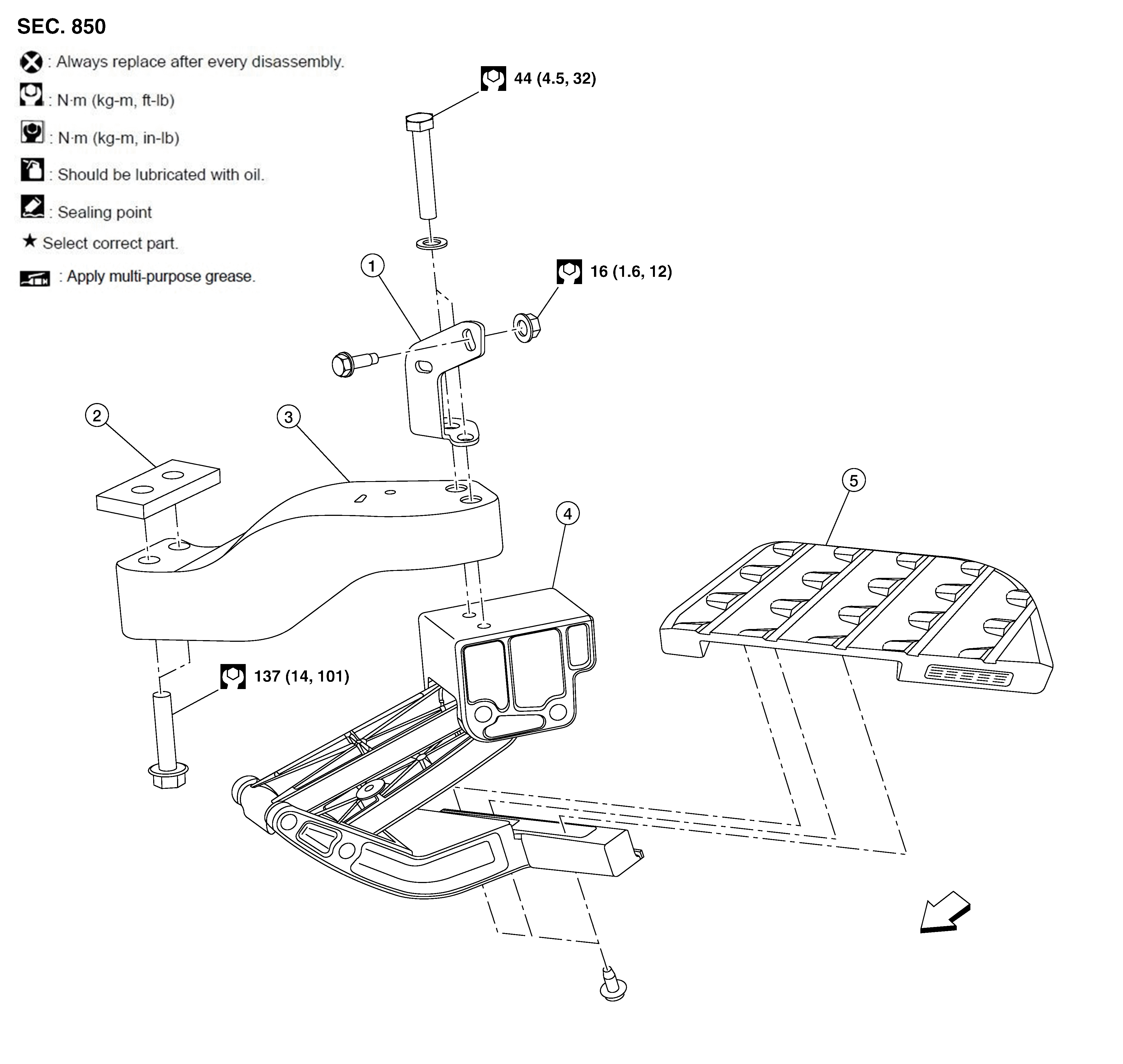

Fig 1: Step Assist Assembly With Torque Specifications
GNSALKIA1304Z-304Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bumper bracket

2.

Spacer plate (if equipped)

3.

Assembly mount

4.

Linkage assembly

5.

Step pad

SYMBOL

Front
