Exploded View

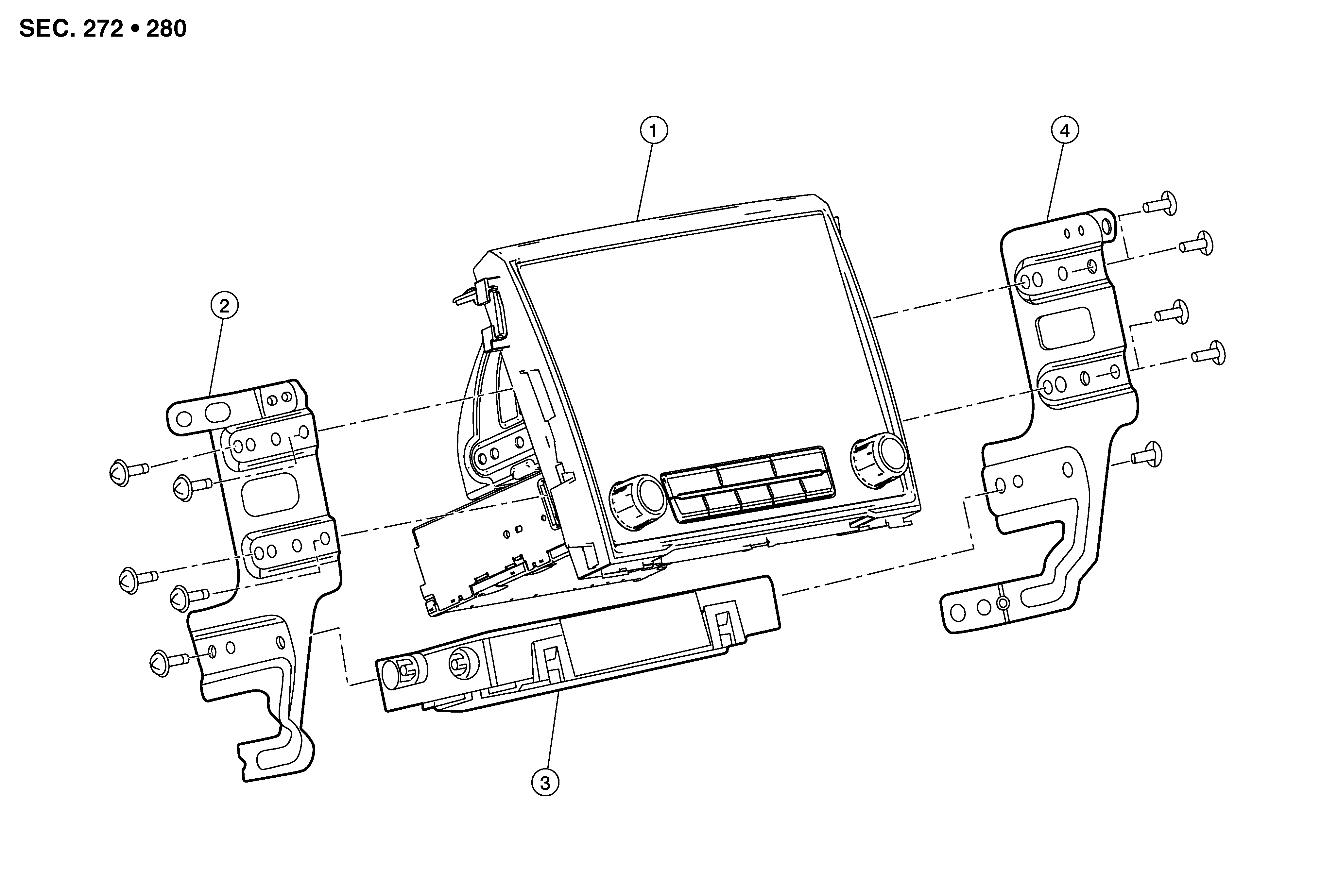

GNSAWNIA0453Z-453Courtesy of NISSAN NORTH AMERICA, INC.

1.

AV control unit

2.

AV control unit bracket (LH)

3.

A/C auto amp.

4.

AV control unit bracket (RH)
