Switch Name and Function

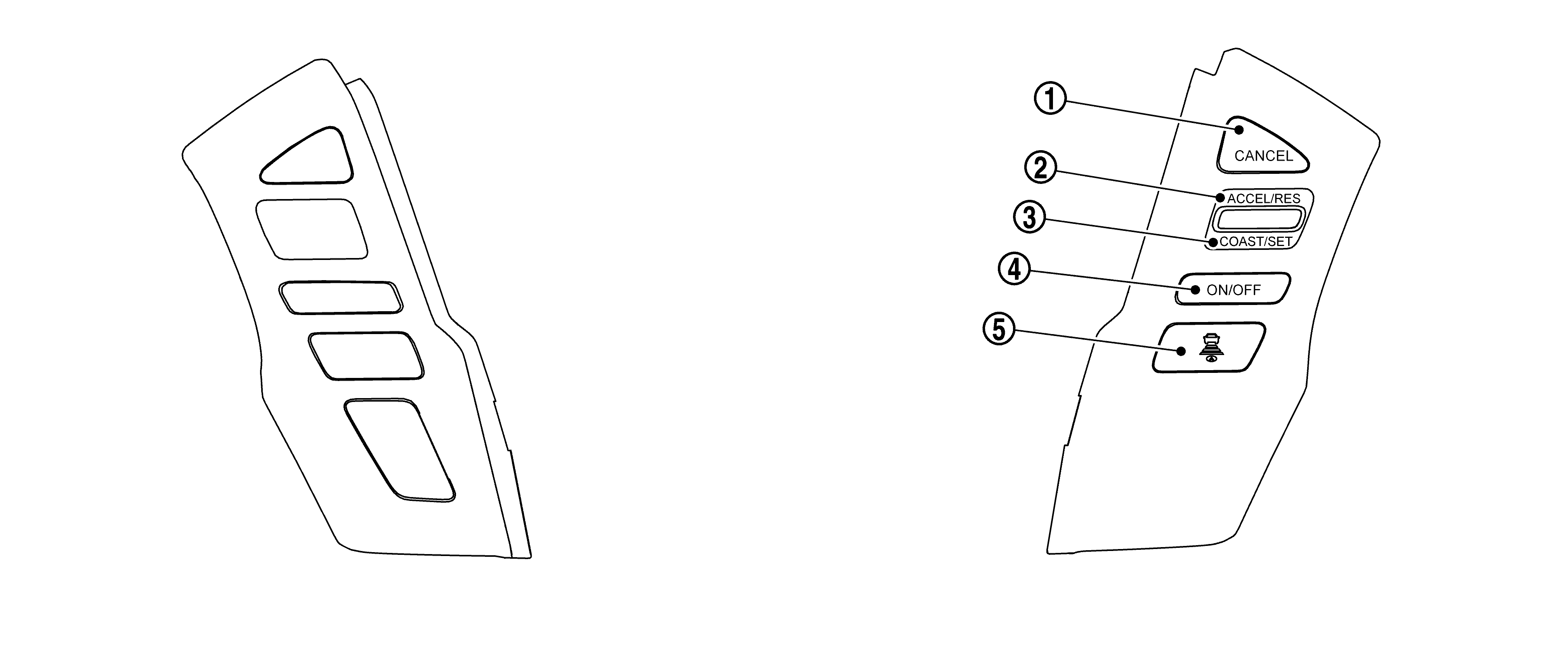

GNSILL0292130-130Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

CANCEL switch

Deactivates the system without erasing the set speed.

SYMBOL

RESUME + switch

Resumes set speed or increases speed incrementally:

  • Push and hold the switch to increase the set speed by 5 km/h (3 MPH).
  • Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)

SYMBOL

SET - switch

Sets desired cruise speed or reduces speed incrementally:

  • Push and hold the switch to decrease the set speed by 5 km/h (3 MPH).
  • Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH).
NOTE: The minimum set speed is 30 km/h (20 MPH).

SYMBOL

MAIN switch

Master switch to activate the system (Press for less than 1.5 seconds).

SYMBOL

DISTANCE switch

Changes the following distance from: Long, Middle, Short.
