System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition			Display on information display

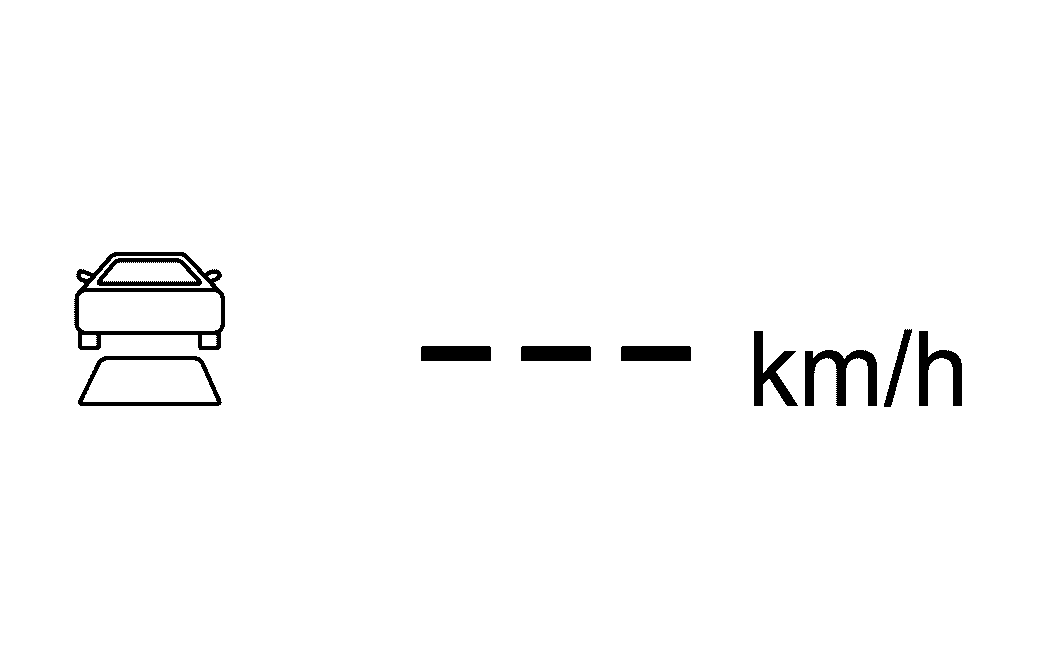

Standby mode			ICC system ON indicator: Gray Set vehicle speed indicator: -- Courtesy of NISSAN NORTH AMERICA, INC.

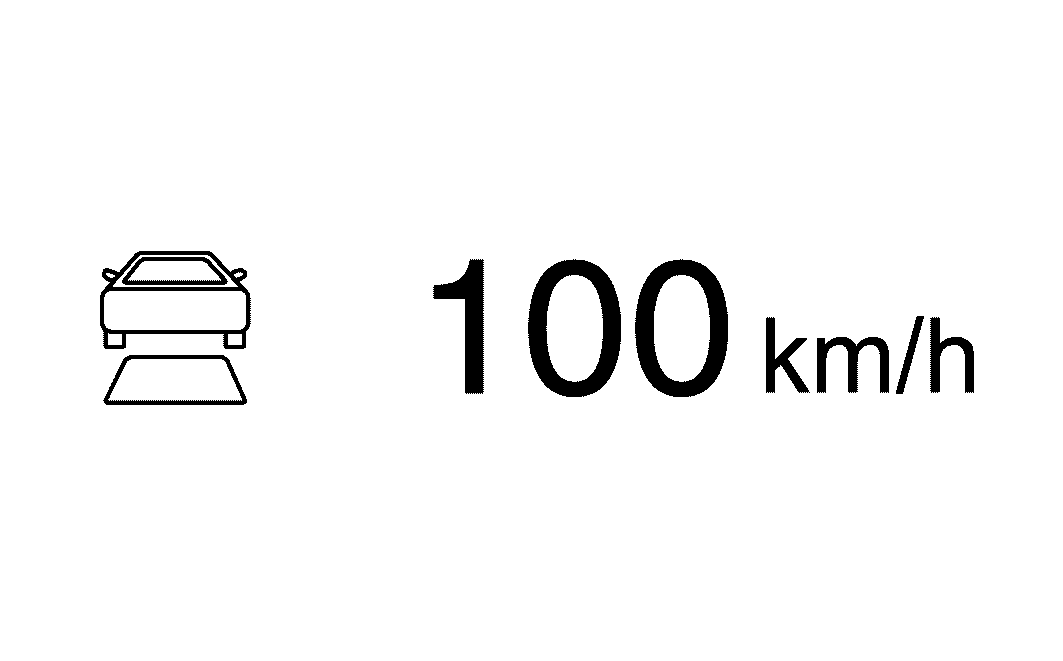

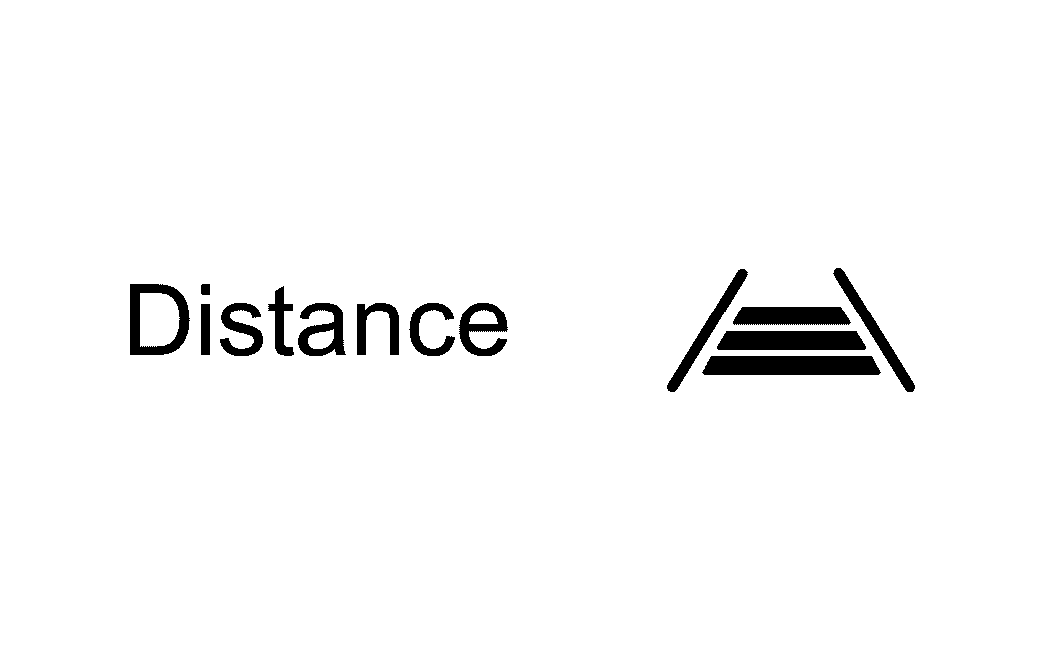

Control mode	Without a vehicle ahead	Set vehicle distance (Long)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			White Courtesy of NISSAN NORTH AMERICA, INC.

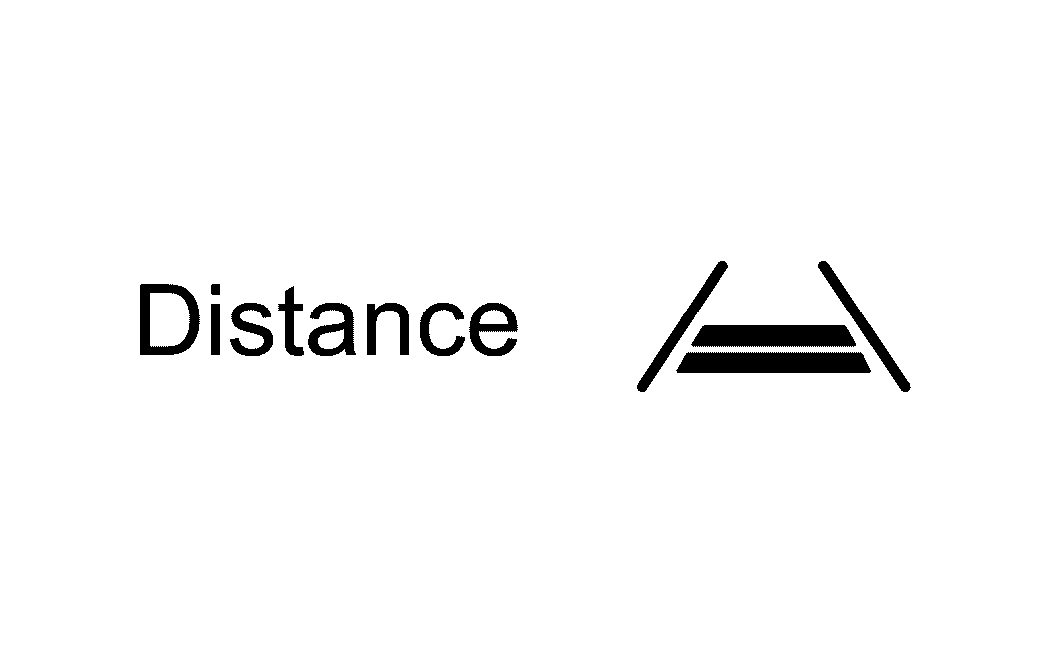

		Set vehicle distance (Middle)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			White Courtesy of NISSAN NORTH AMERICA, INC.

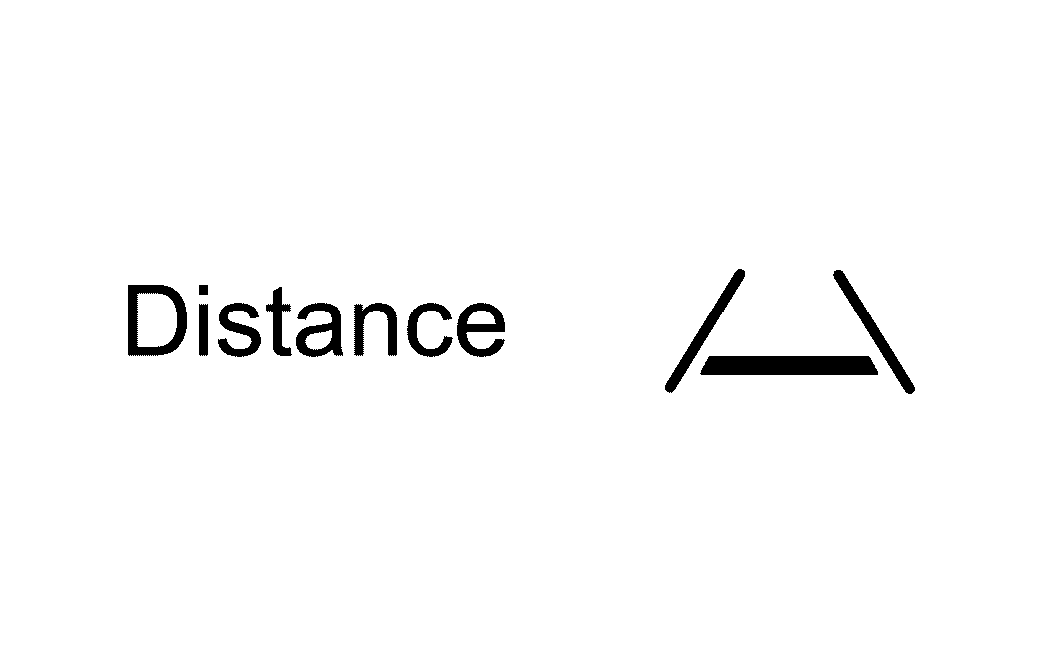

		Set vehicle distance (Short)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			White Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	ICC system SET indicator: Green Set vehicle speed indicator: Green (Blink) Courtesy of NISSAN NORTH AMERICA, INC.

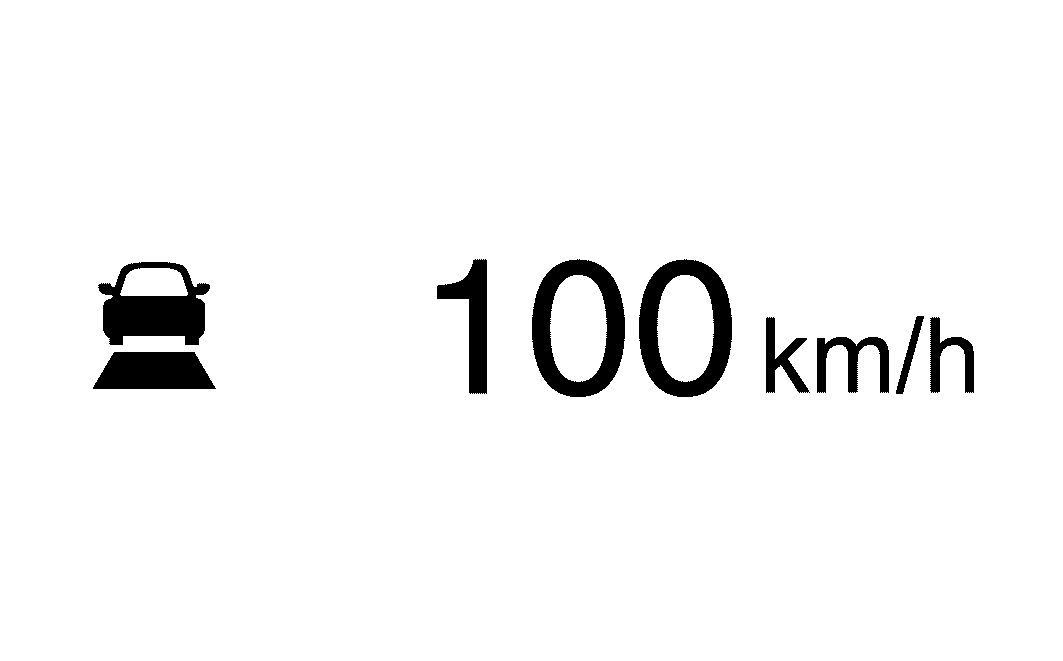

Control mode	With a vehicle ahead	Set vehicle distance (Long)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Green Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	ICC system SET indicator: Green Set vehicle speed indicator: Green Courtesy of NISSAN NORTH AMERICA, INC.
			Green Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	ICC system SET indicator: Green Set vehicle speed indicator: Green (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
