Removal and Installation: Removal

  1. Remove the center console (if equipped). Refer to Removal and Installation .
  2. Remove the cluster lid C finisher. Refer to Removal and Installation .
  3. Disconnect the push-button ignition switch electrical connector.

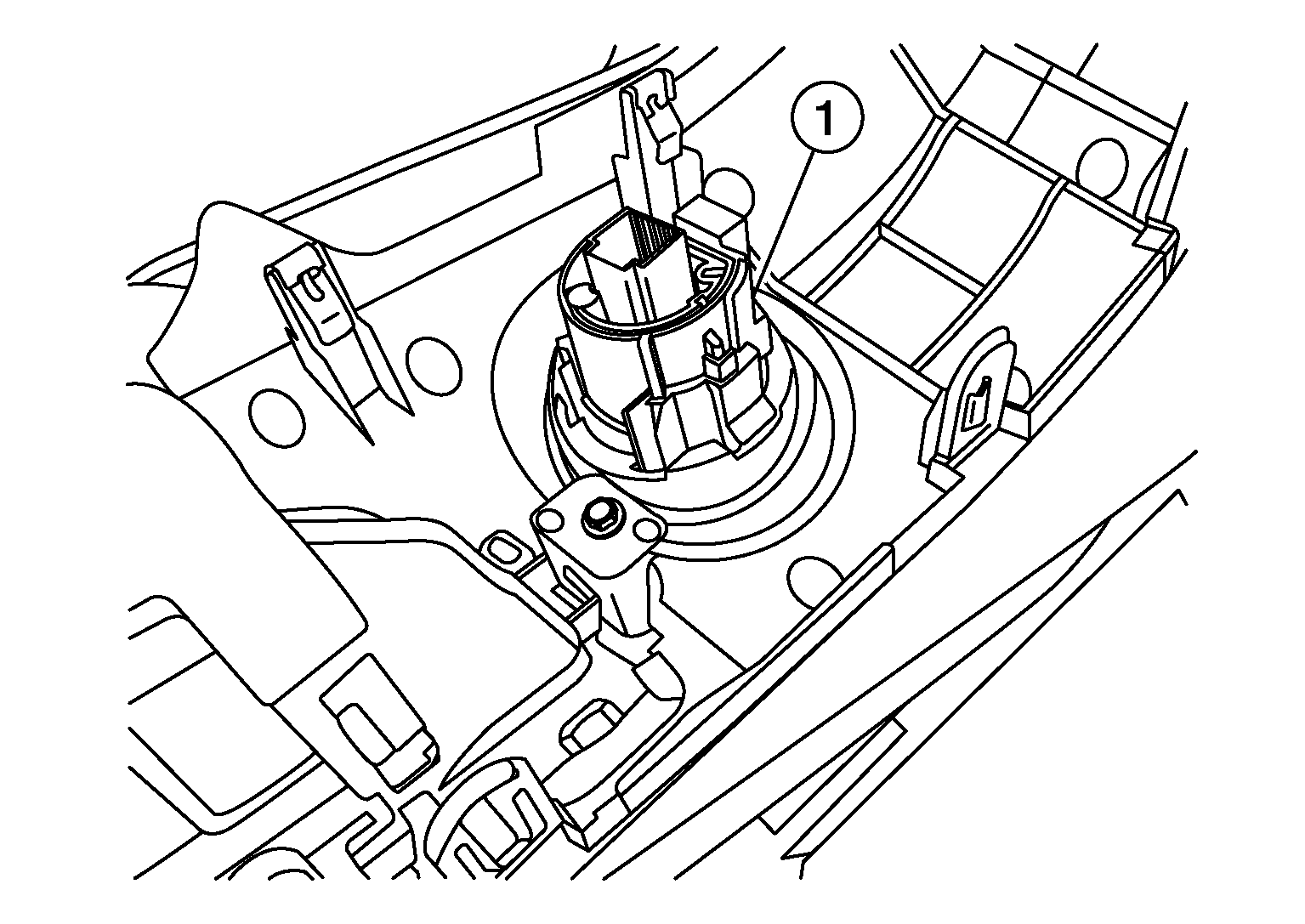

  4. Release the pawl on each side of the push-button ignition switch (1) and remove from the cluster lid C finisher.
    GNSALKIA4174Z-174Courtesy of NISSAN NORTH AMERICA, INC.

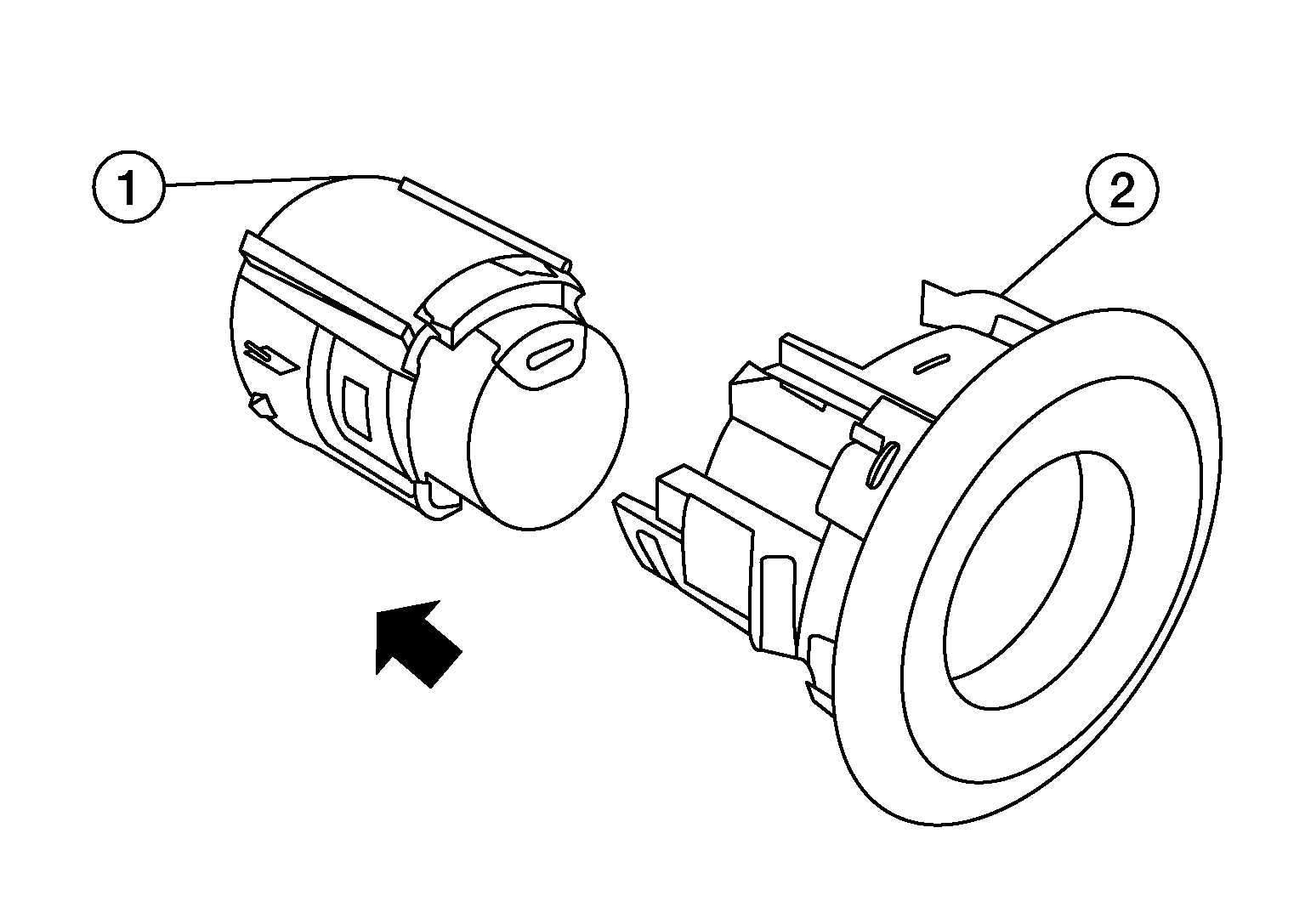

  5. Release the pawl on each side and remove the push-button ignition switch (1) from the NATS antenna amp (2).
    GNSALKIA4175Z-175Courtesy of NISSAN NORTH AMERICA, INC.
