Function Description
Displays the road conditions as identified by the front camera unit on the information display, and alerts the driver. Identifies the road sign information.

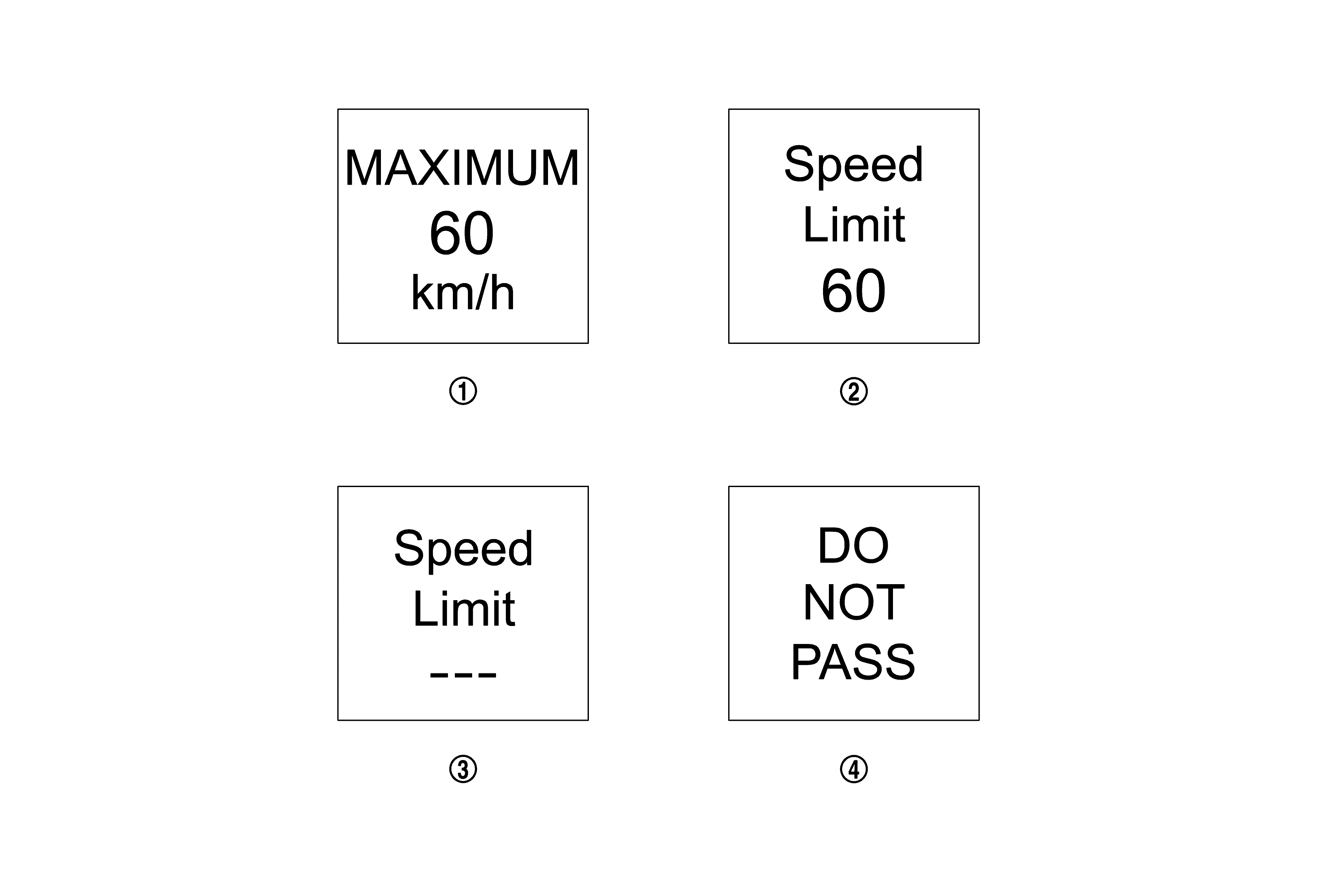

The front camera unit detects road signs as described below and displays them on the information display.
|
|
Latest detected speed limit |
|
National speed limit |
|
No-overtaking zone |
|
|
End of no-overtaking zone |
|
Conditional speed limit |
|
No road sign information *1 |
|
|
Snow |
|
Slip (rain 1) |
|
Rain (rain 2) |
|
|
Towing |
|
Left turn allowed |
|
Right turn allowed |
|
|
Generic *2 |
||||
*1: Displayed when TSR is ON and road signs are not recognized.
*2: Displayed when a supplemental sign other than those from
to
is detected.

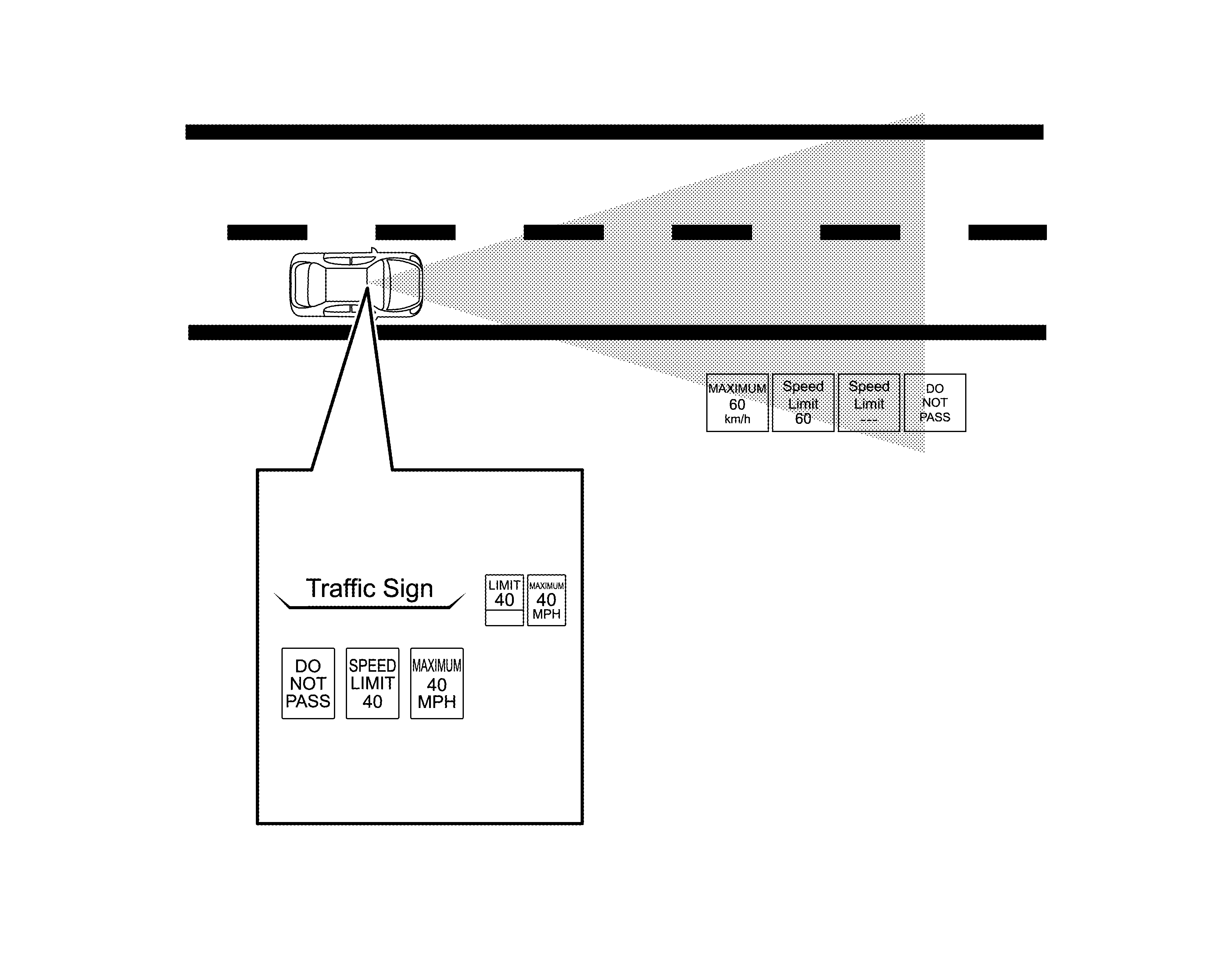

EXAMPLE
