Disassembly and Assembly: Assembly

CAUTION: Do not damage the piston rod when removing components from the front coil spring and strut.

Install the lower rubber seat to the strut.
Identify the upper side of the coil spring.

Courtesy of NISSAN NORTH AMERICA, INC.

: Upper side
Compress the coil spring using a suitable tool.
WARNING: Make sure that the pawls of the suitable tool are firmly hooked on the coil spring. The suitable tool must be tightened alternately so as to not tilt the coil spring.
Align the lower end of the coil spring (1) with the lower rubber seat (2) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

Maximum Gap (A)

: 5 mm (0.2 in)
Apply soapy water to the bound bumper.
CAUTION: Do not use machine oil.
Install the bound bumper to the strut.
Install the strut mount bearing to the coil spring.
CAUTION: Do not apply oil, such as grease, when installing the strut mount bearing.

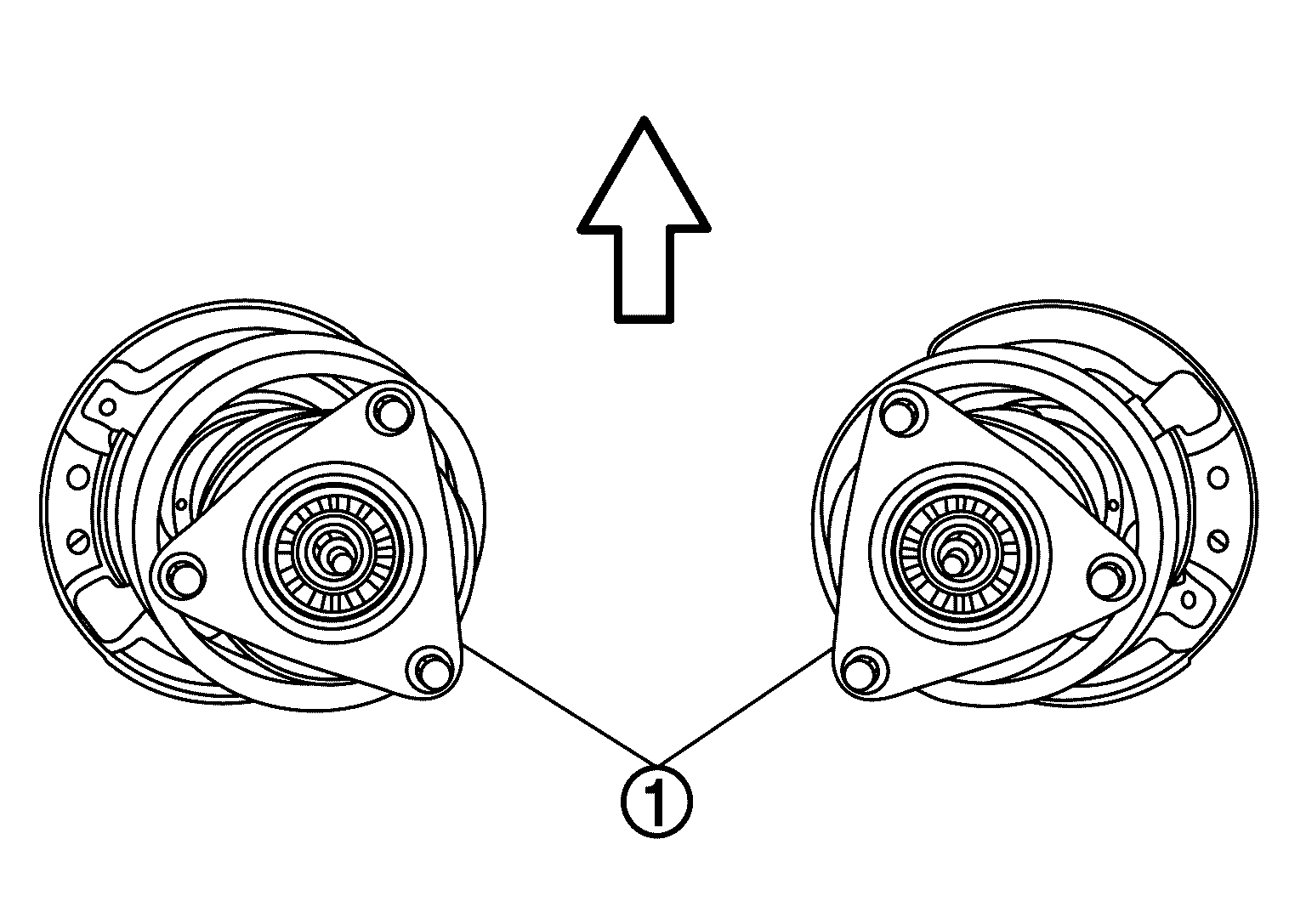

Set the mounting insulator (1) to the direction shown in the figure, below.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Secure the piston rod tip so that the piston rod does not turn. Install the piston rod lock nut and tighten to the specified torque.
CAUTION: Do not reuse piston rod lock nut.
Gradually release the suitable tool (A) and remove the suitable tool from the coil spring.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Release the suitable tool while making sure the position of the suitable tool on the coil spring does not move.

Remove Tool (A) from the vise.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number

(A) : ST35652000 (--)

Remove Tool (A) from the front coil spring and strut.
After replacing the strut, always follow the disposal procedure to discard the old strut. Refer to Disposal .
