Exploded View

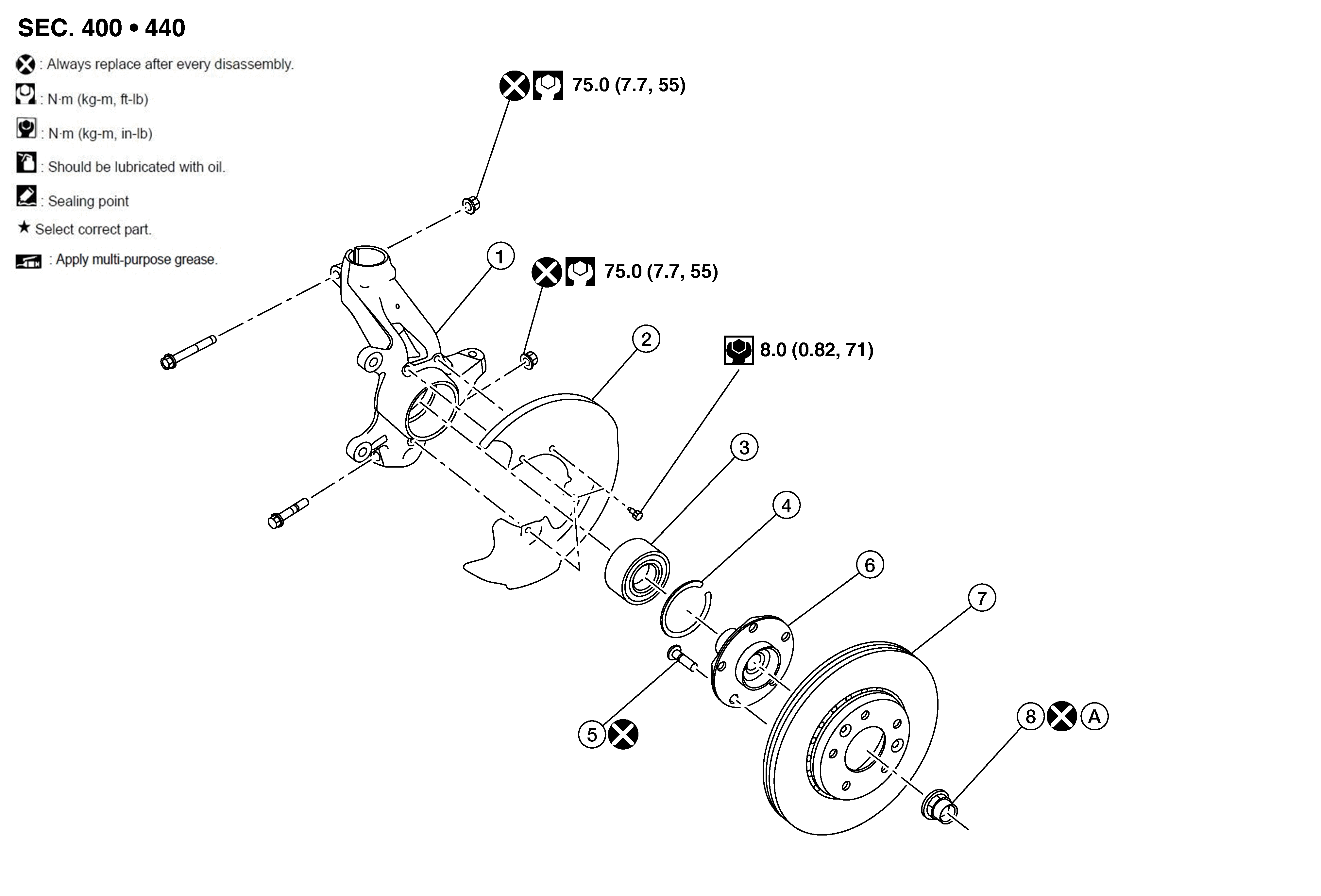

Fig 1: Steering Knuckle Components With Torque Specifications
GNSAWEIA0131Z-131Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering knuckle

2.

Splash guard

3.

Wheel bearing

4.

Snap ring

5.

Hub bolt

6.

Wheel hub

7.

Disc rotor

8.

Wheel hub lock nut

A.

Refer to Removal and Installation .
