Removal and Installation: Installation
Installation is in the reverse order of removal.
NOTE:
- Do not use any lubrication to aid with the installation of tubes and hoses.
- Before tightening the fuel tank mounting bands, install the filler hose to the length of 35 mm (1.38 in), all other hoses to 25 mm (0.98 in).
- Tighten the clamps until the head of the bolt is on the paint mark on the clamp band.

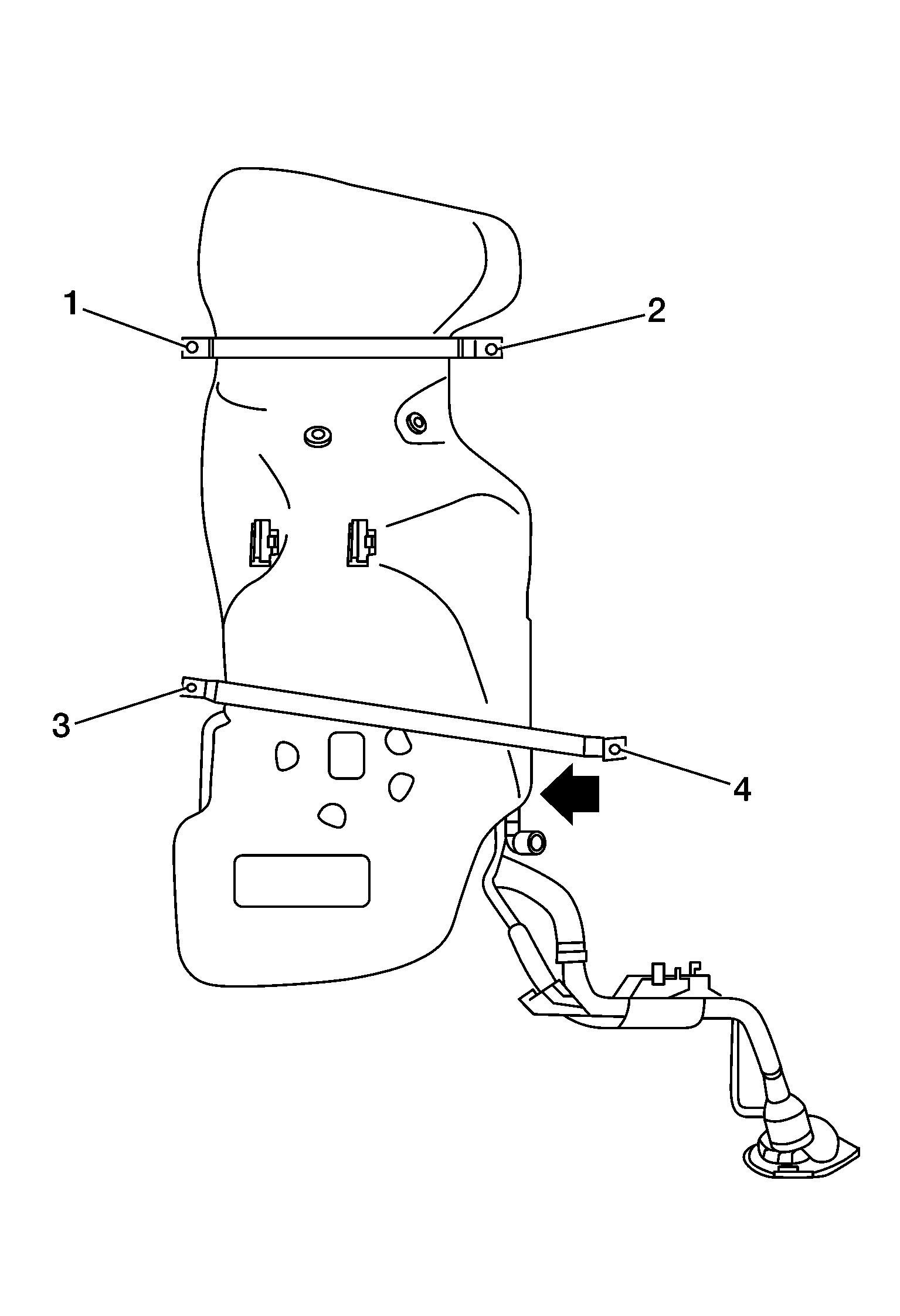

- Tight mounting band bolts (1) and (2) to specification. Hand tighten mounting band bolt (3). While pushing the tank in the direction shown below, tighten mounting band bolt (4) to specification then mounting band bolt (3).
