EPS Control Unit Connector End View (E75)

Connector Types:  -

Connector Color:  BLACK

Fig 1: Terminal-side
GNSW7907Courtesy of NISSAN NORTH AMERICA

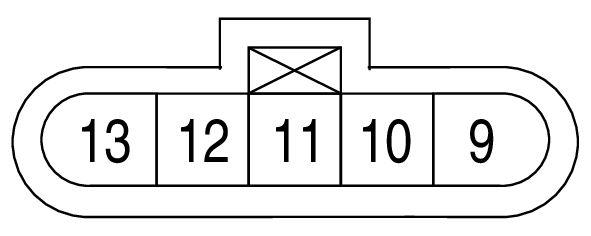

Fig 2: Harness-side
GNSW7906Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
9 Y -
10 W -
11 - -
12 BR -
13 G -
