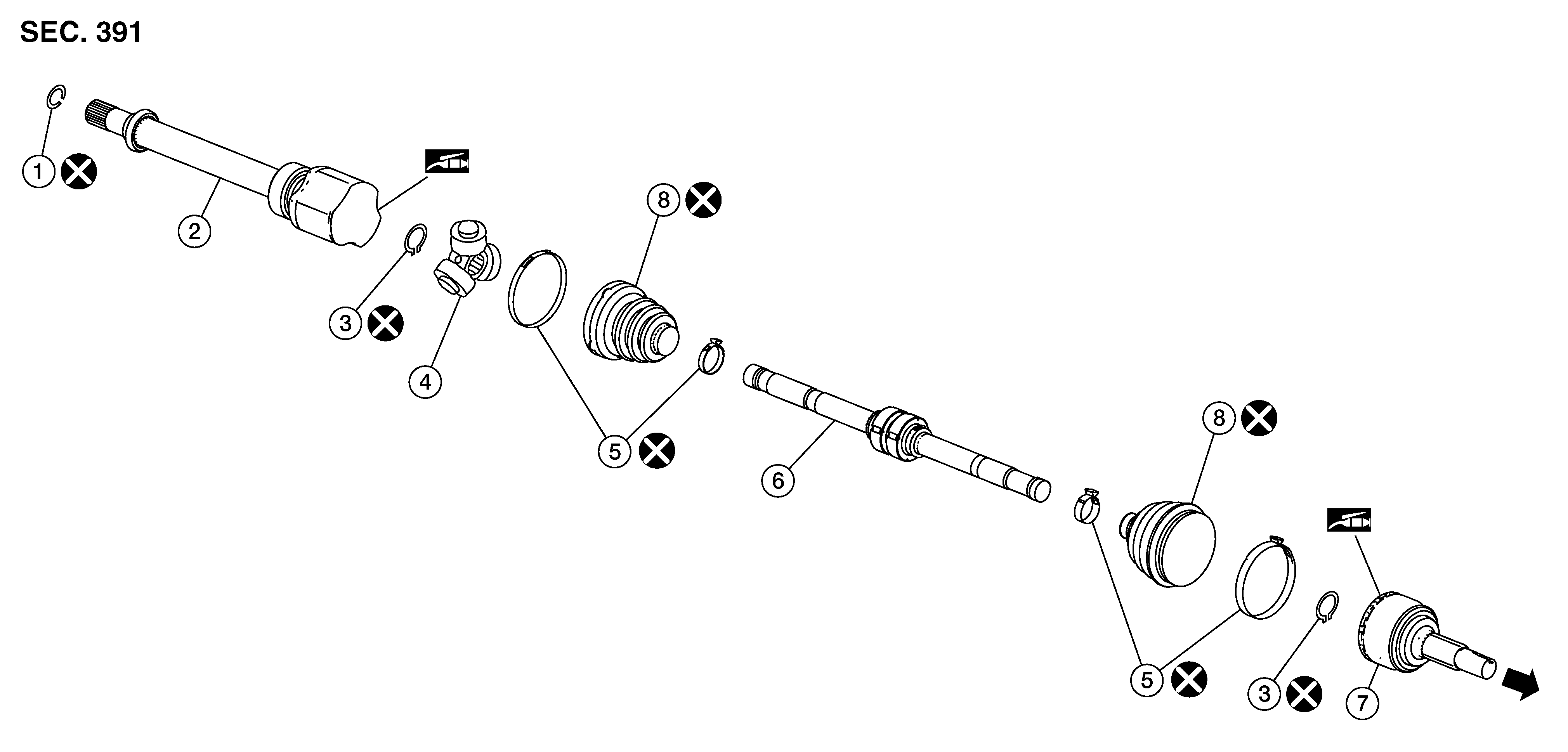

Exploded View: LH

GNSAWDIA0182Z-182Courtesy of NISSAN NORTH AMERICA, INC.

1.

Circular clip

2.

Slide joint housing

3.

Snap ring

4.

Spider assembly

5.

Boot band

6.

Shaft

7.

Joint-sub assembly

8.

Boot

SYMBOL

Wheel side
