Exploded View

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

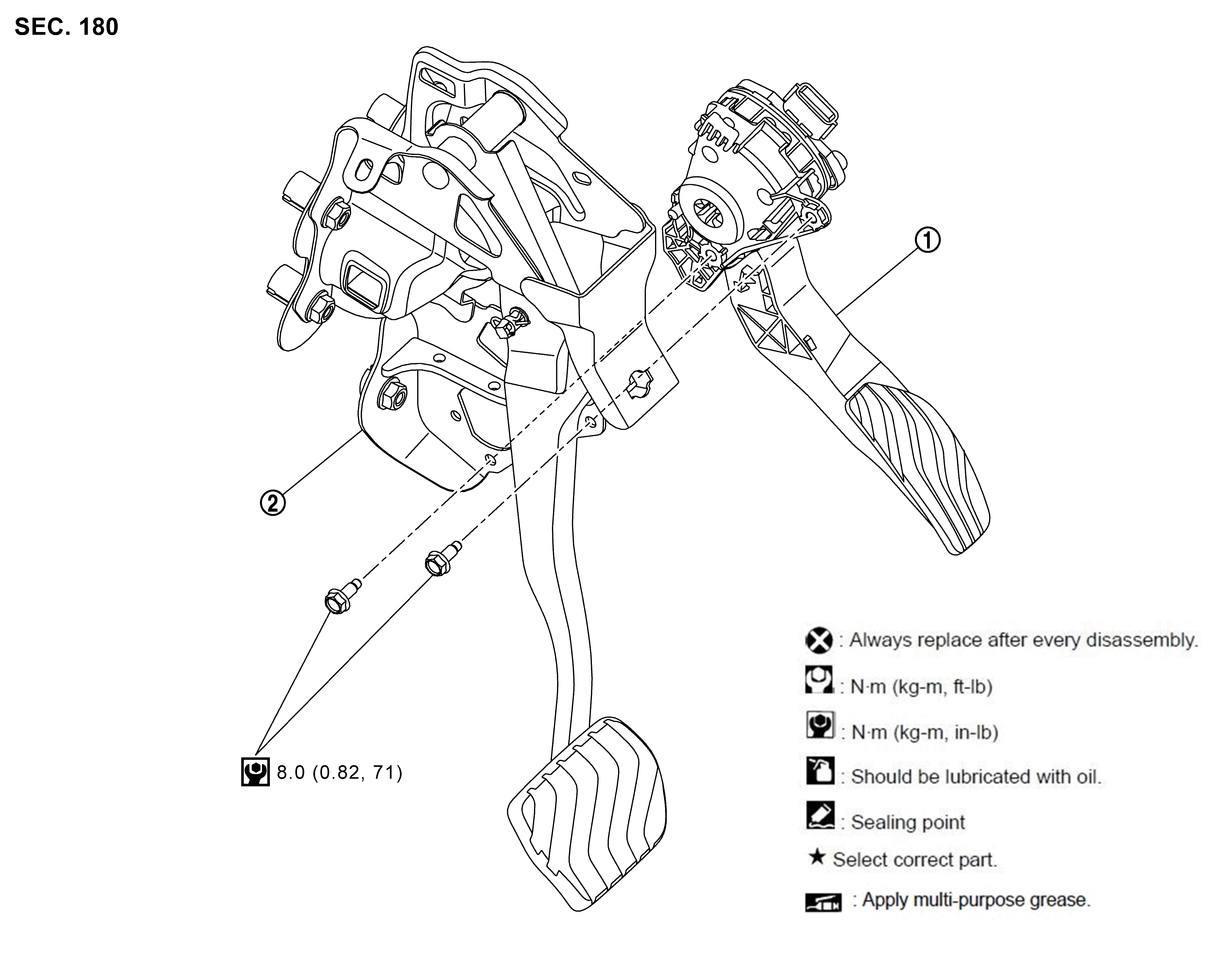

Fig 1: Accelerator Control System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Accelerator pedal assembly		Brake pedal assembly
	: N.m (kg-m, in-lb)
