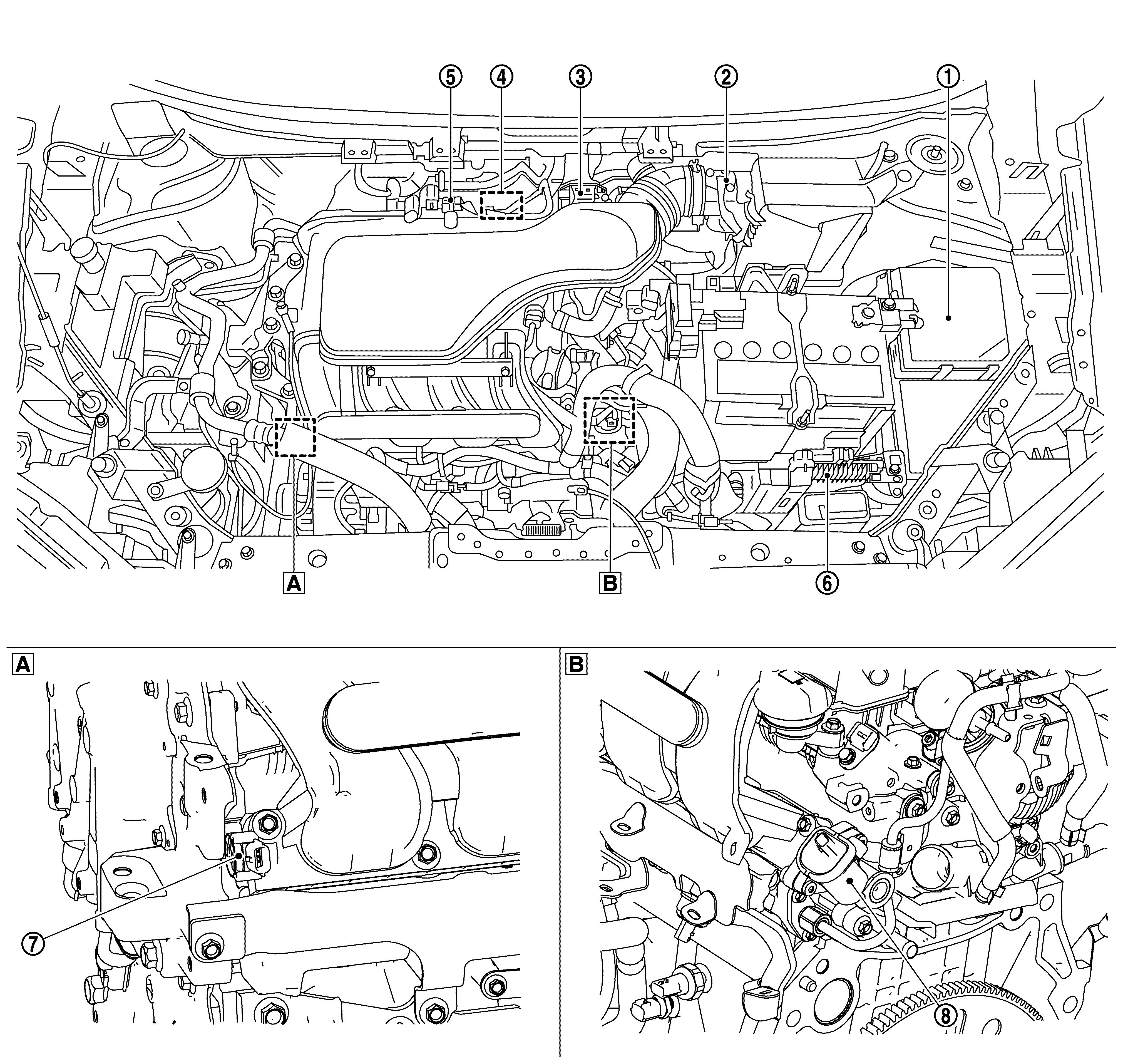

Engine Room Compartment

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	IPDM E/R	IPDM E/R control the internal relays and the actuators. And when CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. Refer to System Description . Refer to Fail-safe . Refer to System Description .
	Mass air flow sensor (with intake air temperature sensor)	Refer to Component Description .
	Electric throttle control actuator (with built in throttle position sensor and throttle control motor)	Refer to Component Description .
	EVAP service port	--
	EVAP canister purge volume control solenoid valve	Refer to Component Description .
	ECM	Refer to Component Description .
	Intake manifold runner control valve position sensor	Refer to Component Description .
	Intake manifold runner control valve motor	Refer to Component Description .
