Body Compartment

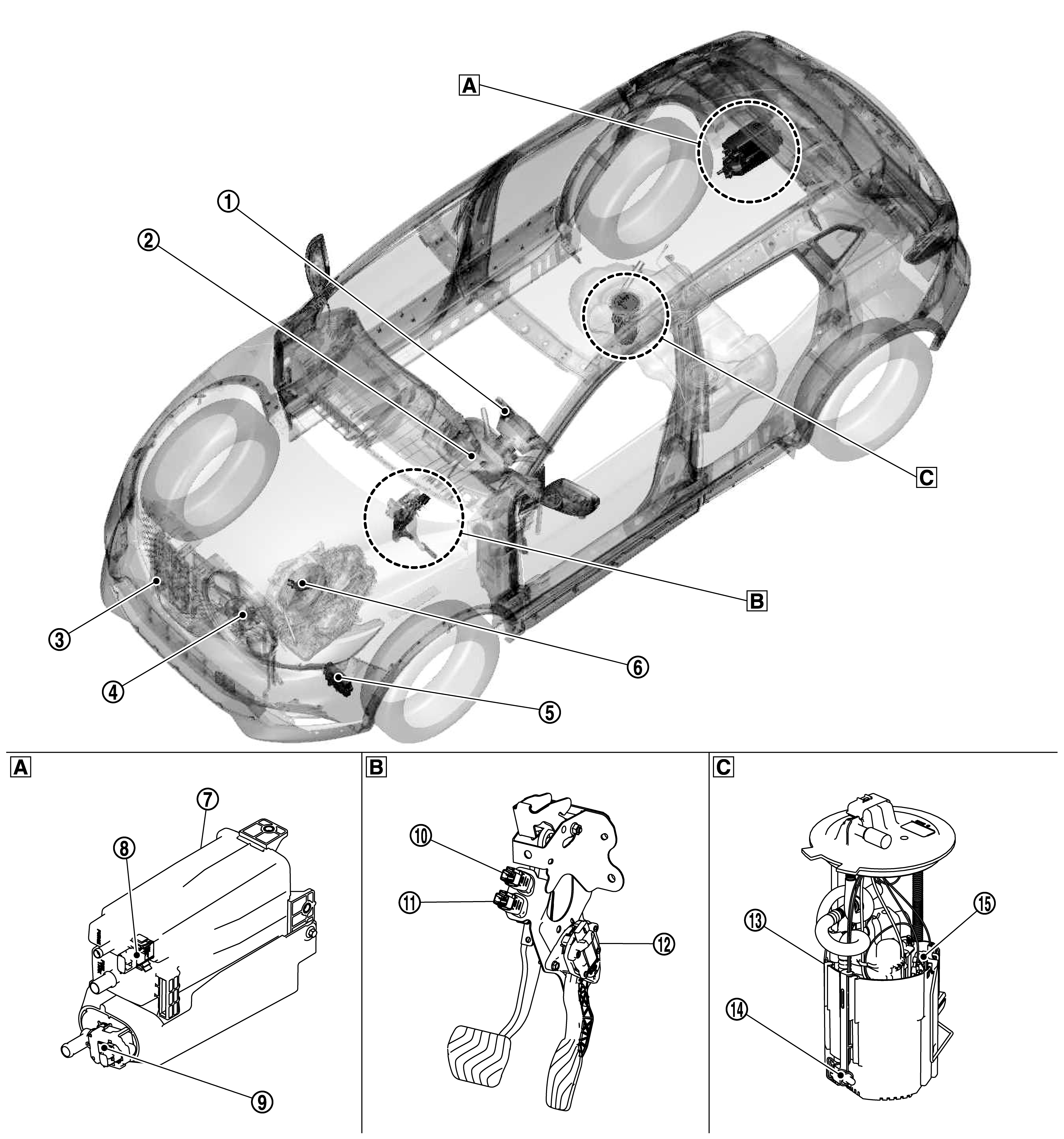

CVT Models
|
|
Right rear undercarriage area |
|
Pedal periphery |
|
Inside fuel tank periphery |
|
No. |
Component |
Function |
|
|
|
ASCD steering switch |
Refer to Component Description . |
|
|
|
Combination meter |
Malfunction indicator lamp (MIL) |
Refer to System Description . |
|
Information display |
Refer to Warning/Indicator/Chime list . |
||
|
|
Refrigerant pressure sensor |
Refer to Component Description . |
|
|
|
Cooling fan motor |
Refer to Component Description . |
|
|
|
Relay box |
Cooling fan relay-2 |
Controlled by IPDM E/R, which receives command from ECM, energizes cooling fan motor. |
|
Fuel injector relay |
Controlled by ECM, energizes fuel injectors through ECM inside. |
||
|
High pressure fuel pump relay |
Controlled by ECM, energizes high pressure fuel pump. |
||
|
|
Transmission range switch |
Refer to Component Description . |
|
|
|
EVAP canister |
Refer to Component Description . |
|
|
|
EVAP control system pressure sensor |
Refer to Component Description . |
|
|
|
EVAP canister vent control valve |
Refer to Component Description . |
|
|
|
Brake pedal position switch |
Refer to Component Description . |
|
|
|
Stop lamp switch |
||
|
|
Accelerator pedal position sensor |
Refer to Component Description . |
|
|
|
Low pressure fuel pump |
Refer to Component Description . |
|
|
|
Fuel tank temperature sensor |
Refer to Component Description . |
|
|
|
Fuel level sensor |
Refer to Component Description . |
|

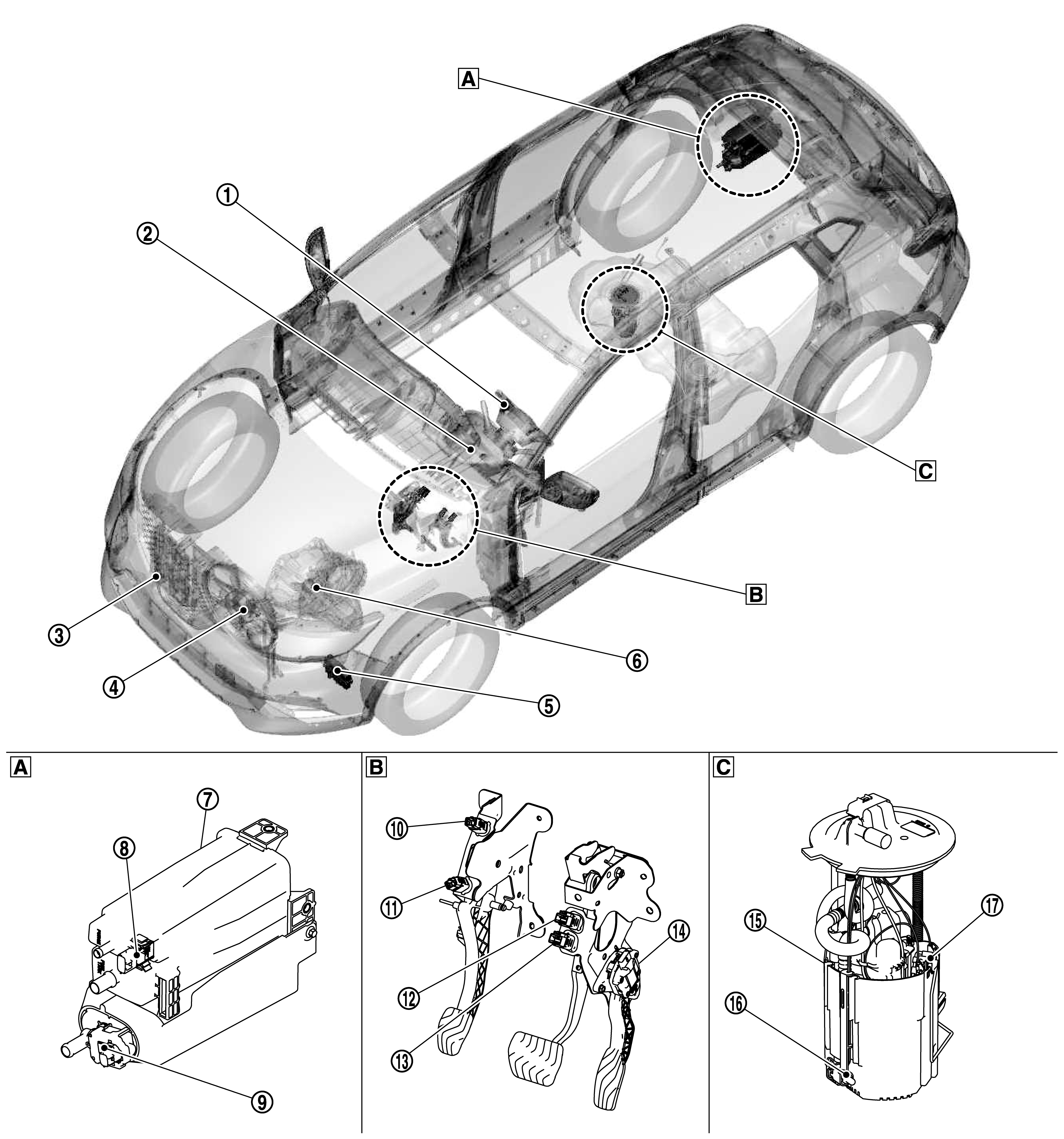

M/T Models
|
|
Right rear undercarriage area |
|
Pedal periphery |
|
Inside fuel tank periphery |
|
No. |
Component |
Function |
|
|
|
ASCD steering switch |
Refer to Component Description . |
|
|
|
Combination meter |
Malfunction indicator lamp (MIL) |
Refer to System Description . |
|
Information display |
Refer to Warning/Indicator/Chime list . |
||
|
|
Refrigerant pressure sensor |
Refer to Component Description . |
|
|
|
Cooling fan motor |
Refer to Component Description . |
|
|
|
Relay box |
Cooling fan relay-2 |
Controlled by IPDM E/R, which receives command from ECM, energizes cooling fan motor. |
|
Fuel injector relay |
Controlled by ECM, energizes fuel injectors through ECM inside. |
||
|
High pressure fuel pump relay |
Controlled by ECM, energizes high pressure fuel pump. |
||
|
|
Reverse/Neutral position switch |
Refer to Component Description . |
|
|
|
EVAP canister |
Refer to Component Description . |
|
|
|
EVAP control system pressure sensor |
Refer to Component Description . |
|
|
|
EVAP canister vent control valve |
Refer to Component Description . |
|
|
|
Clutch interlock switch |
-- |
|
|
|
Clutch pedal position switch |
Refer to Component Description . |
|
|
|
Brake pedal position switch |
Refer to Component Description . |
|
|
|
Stop lamp switch |
||
|
|
Accelerator pedal position sensor |
Refer to Component Description . |
|
|
|
Low pressure fuel pump |
Refer to Component Description . |
|
|
|
Fuel tank temperature sensor |
Refer to Component Description . |
|
|
|
Fuel level sensor |
Refer to Component Description . |
|
