Exploded View

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

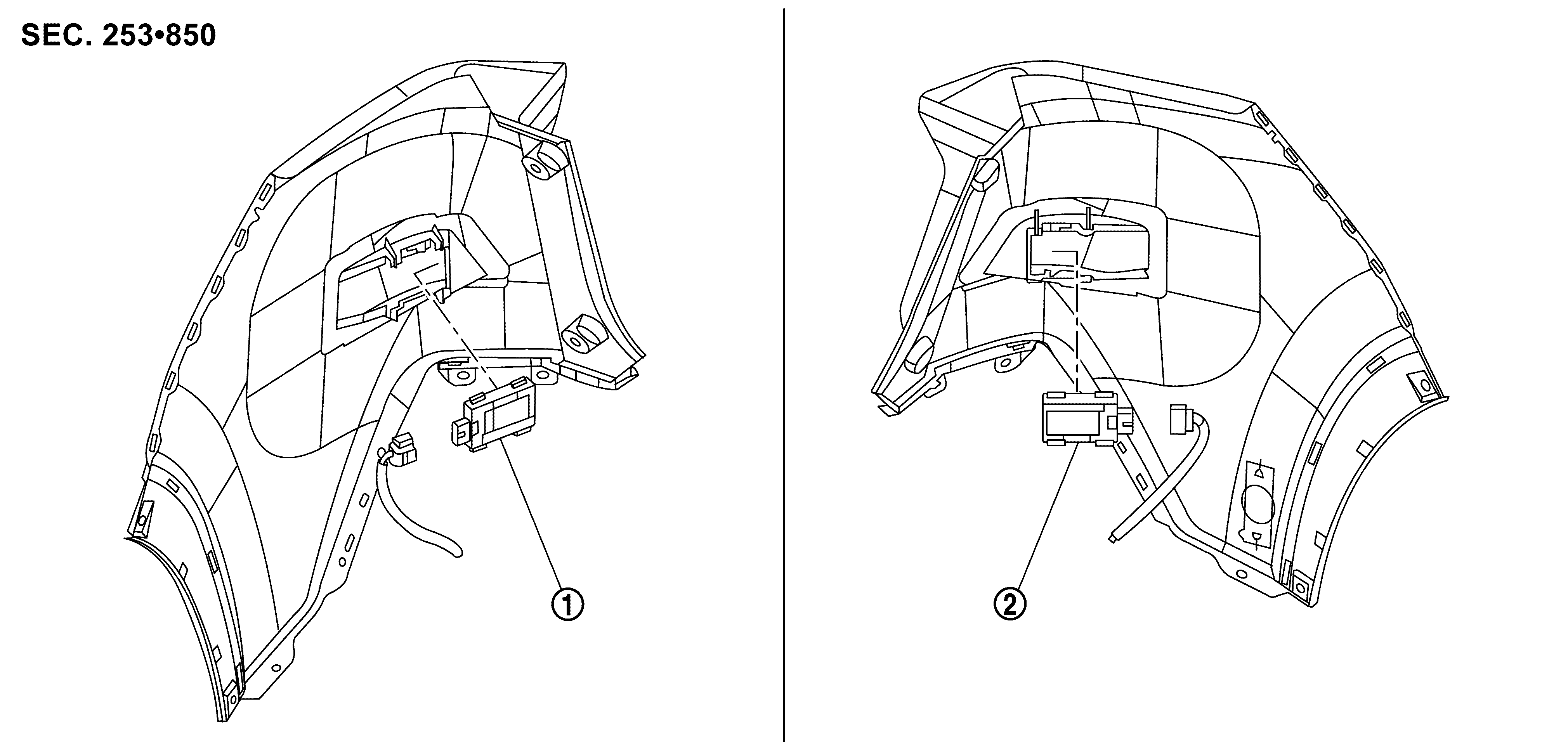

GNSILL0312167Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Side radar (RH)

SYMBOL

Side radar (LH)
