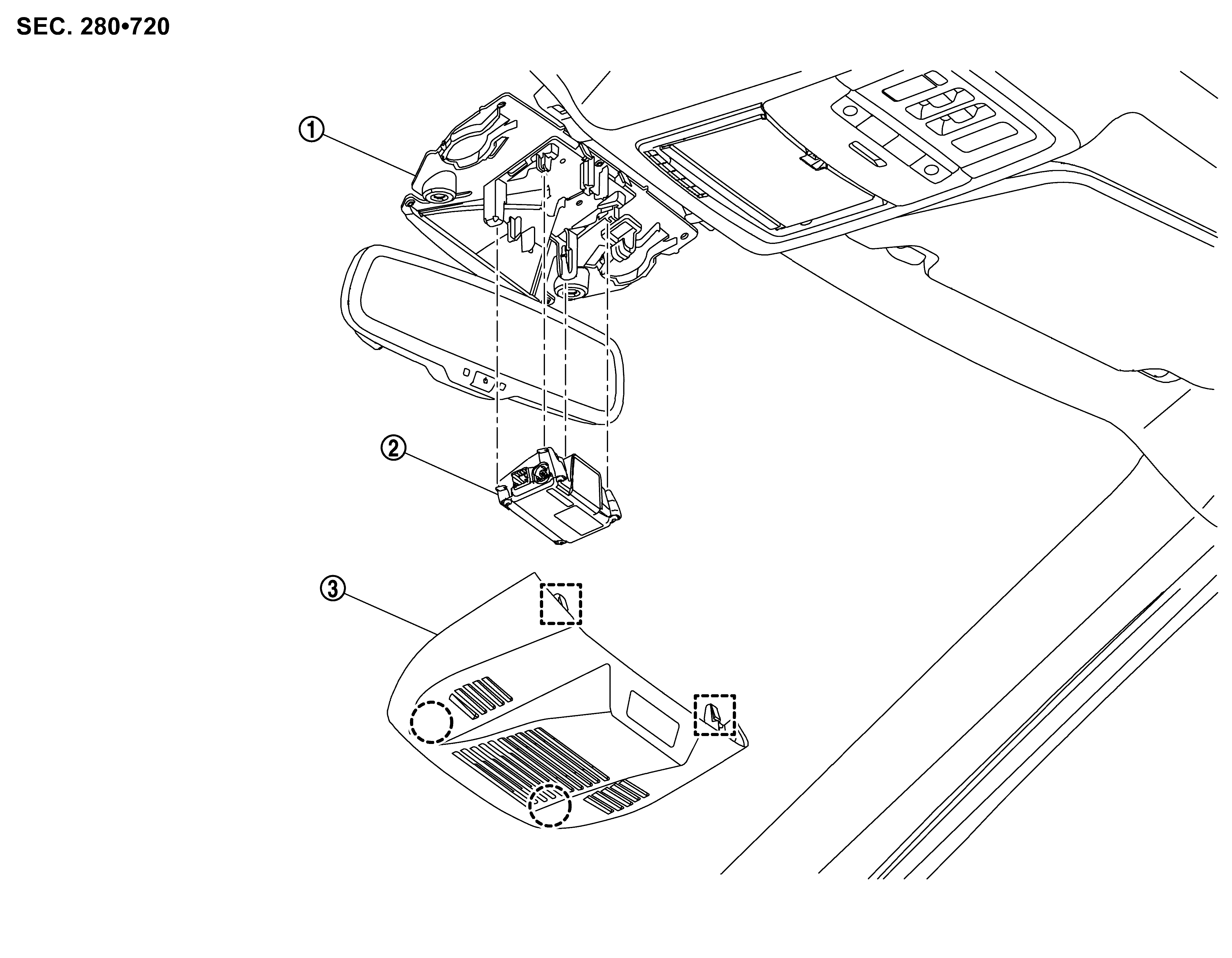

Exploded View

WARNING: This page is about a different car, the 2021 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.
GNSILL0312163Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front camera unit bracket

SYMBOL

Front camera unit

SYMBOL

Front camera cover

SYMBOL

Metal clip

SYMBOL

Pawl
