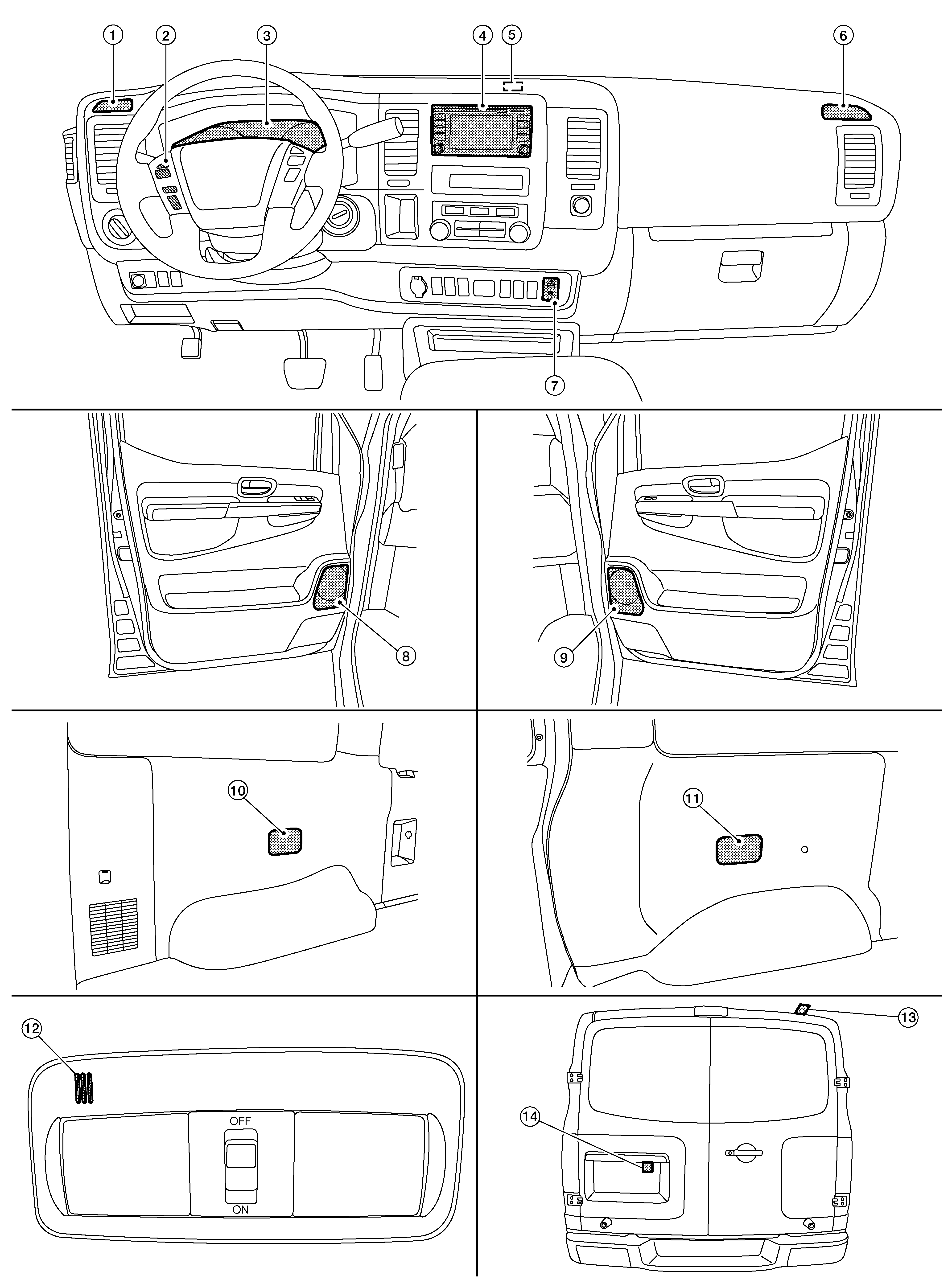

Component Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Tweeter LH |
2. |
Steering wheel audio control switches |
3. |
Combination meter |
|
4. |
AV control unit |
5. |
GPS antenna |
6. |
Tweeter RH |
|
7. |
Front auxiliary input jacks |
8. |
Front door speaker LH |
9. |
Front door speaker RH |
|
10. |
Rear speaker LH (if equipped) |
11. |
Rear speaker RH (if equipped) |
12. |
Microphone |
|
13. |
Satellite antenna |
14. |
Rear view camera |
