Notes

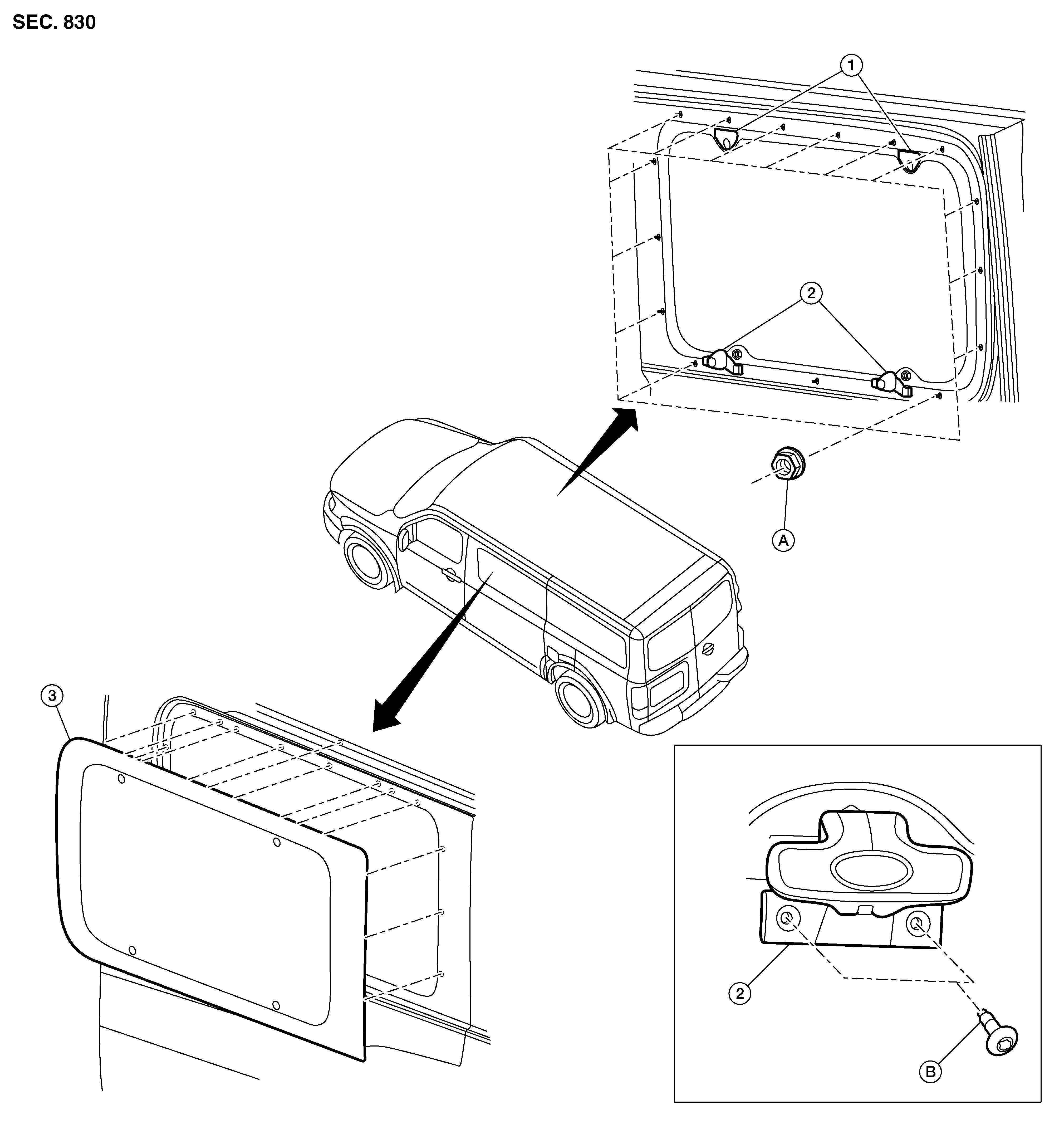

Removal and Installation (Moveable Windows): Notes
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Upper hinges
2.
Latches
3.
Moveable side window glass
A.
Nut
B.
Bolt
