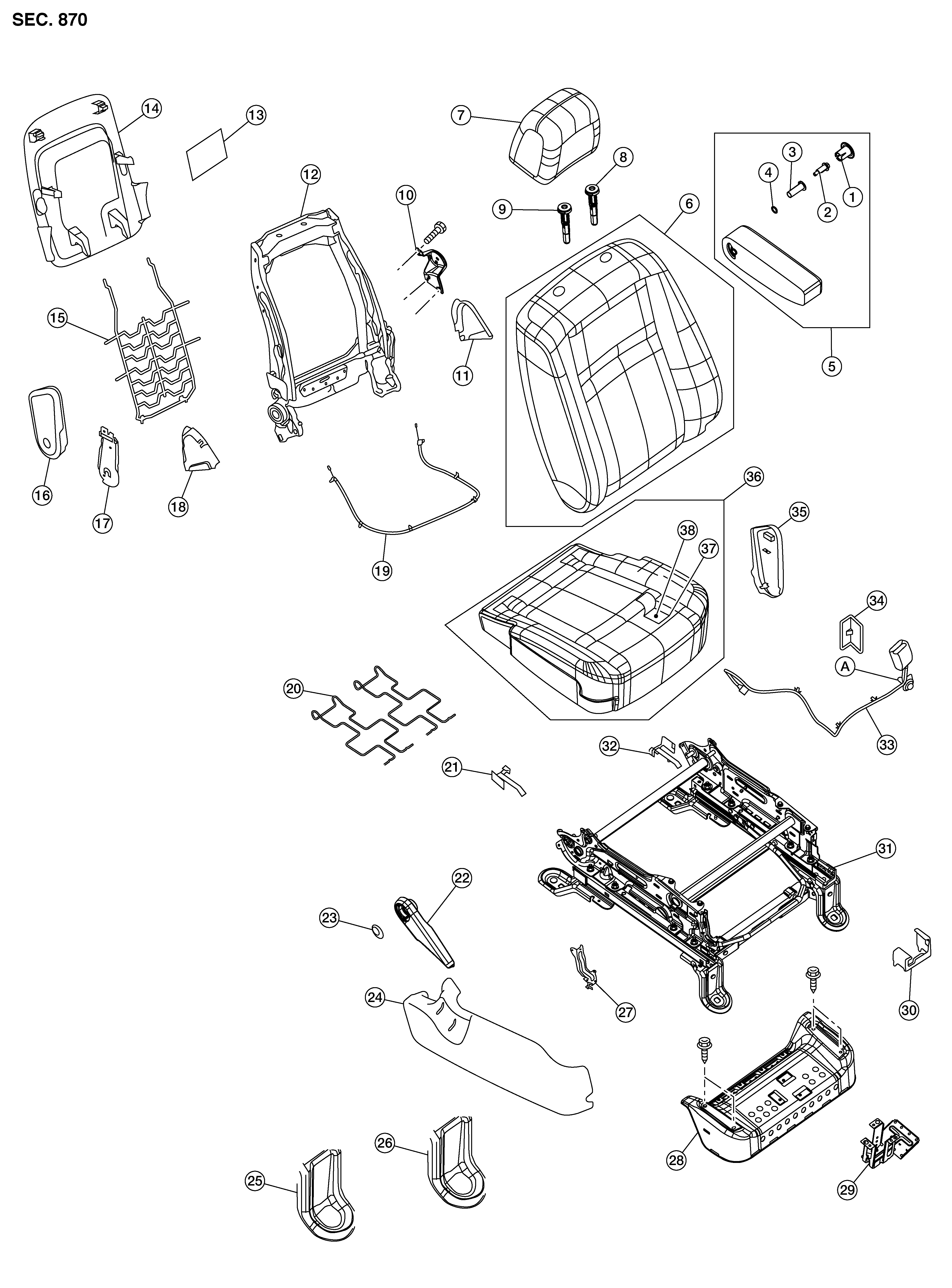

Passenger's Seat
|
1. |
Armrest bolt cover (if equipped) |
2. |
Armrest bolt (if equipped) |
3. |
Armrest insert (if equipped) |
|
4. |
Armrest washer (if equipped) |
5. |
Armrest assembly (if equipped) |
6. |
Seatback cushion assembly |
|
7. |
Headrest |
8. |
Headrest holder (locked) |
9. |
Headrest holder (free) |
|
10. |
Armrest bracket |
11. |
Seat cushion outer finisher (LH) |
12. |
Seatback frame assembly |
|
13. |
Upper seat frame cover |
14. |
Seatback board |
15. |
Seatback spring |
|
16. |
Seat cushion outer finisher (RH) |
17. |
Fold flat mechanism cover |
18. |
Seat cushion inner finisher (RH) |
|
19. |
Recline/fold flat cable |
20. |
Seat cushion spring |
21. |
Rear inner slide finisher (RH) |
|
22. |
Recline/fold flat lever |
23. |
Recline/fold flat lever cover |
24. |
Seat cushion outer finisher (RH) |
|
25. |
Slide rail finisher (RH) |
26. |
Slide rail finisher (LH) |
27. |
Seat cushion outer bracket finisher (RH) |
|
28. |
Seat cushion frame |
29. |
Wiring harness bracket |
30. |
Front inner slide cover |
|
31. |
Seat adjuster assembly |
32. |
Rear inner slide finisher (LH) |
33. |
Seat belt buckle |
|
34. |
Seat cushion inner finisher (LH) |
35. |
Fold flat inner finisher (LH) |
36. |
Seat cushion assembly |
|
37. |
Seat cushion trim |
38. |
Seat cushion pad |
A. |
Refer to Front Seat Belt |
