Starting Air Flow Control
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

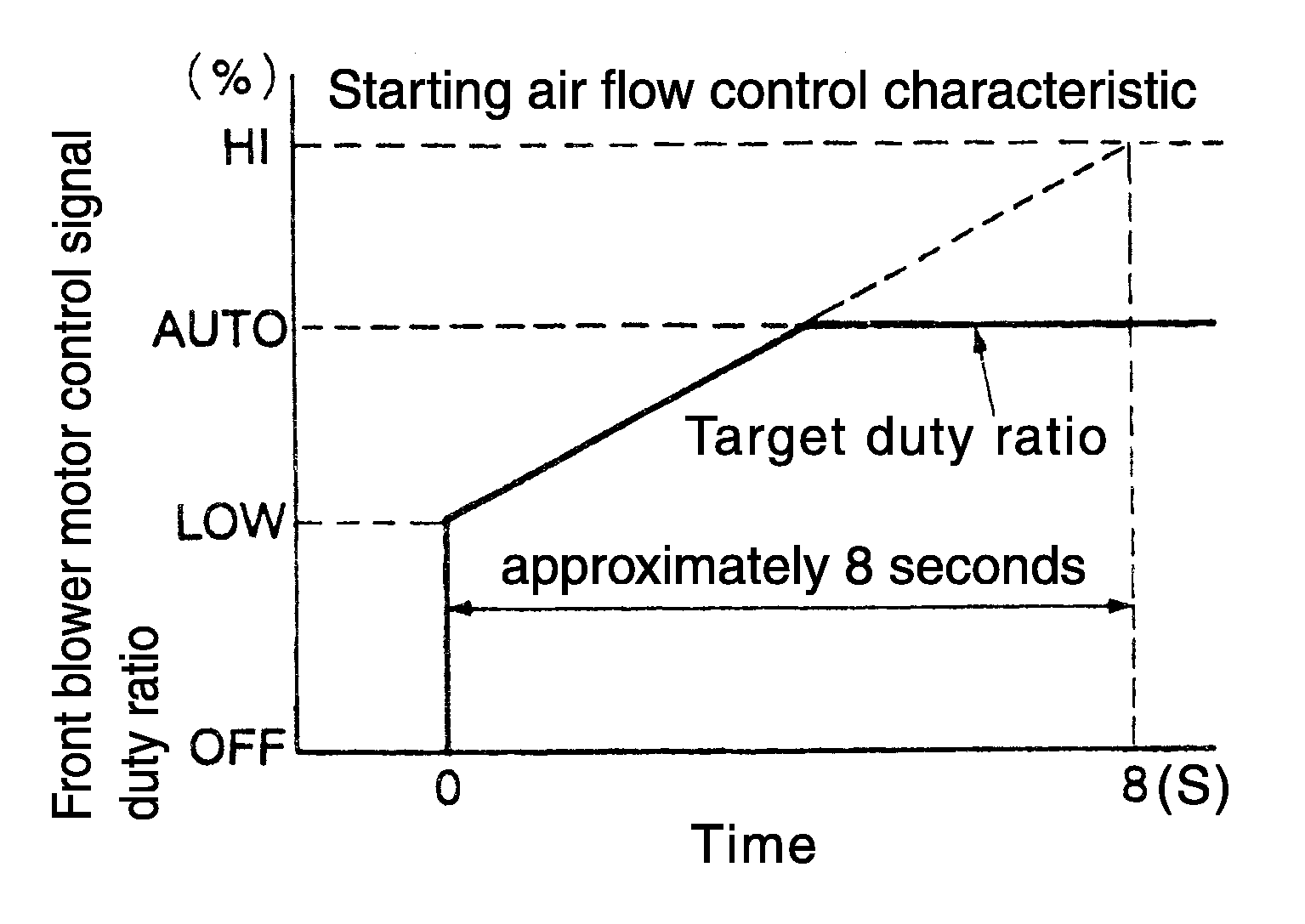

- When blower motor is activated, A/C auto amp. gradually increases duty ratio of blower motor control signal to prevent a sudden increase in discharge air flow.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- It takes approximately 8 seconds for air flow to reach HI from LOW.
