Work Procedure
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- RECORD REGISTRATION CODE FOR REPLACEMENT AV CONTROL UNIT

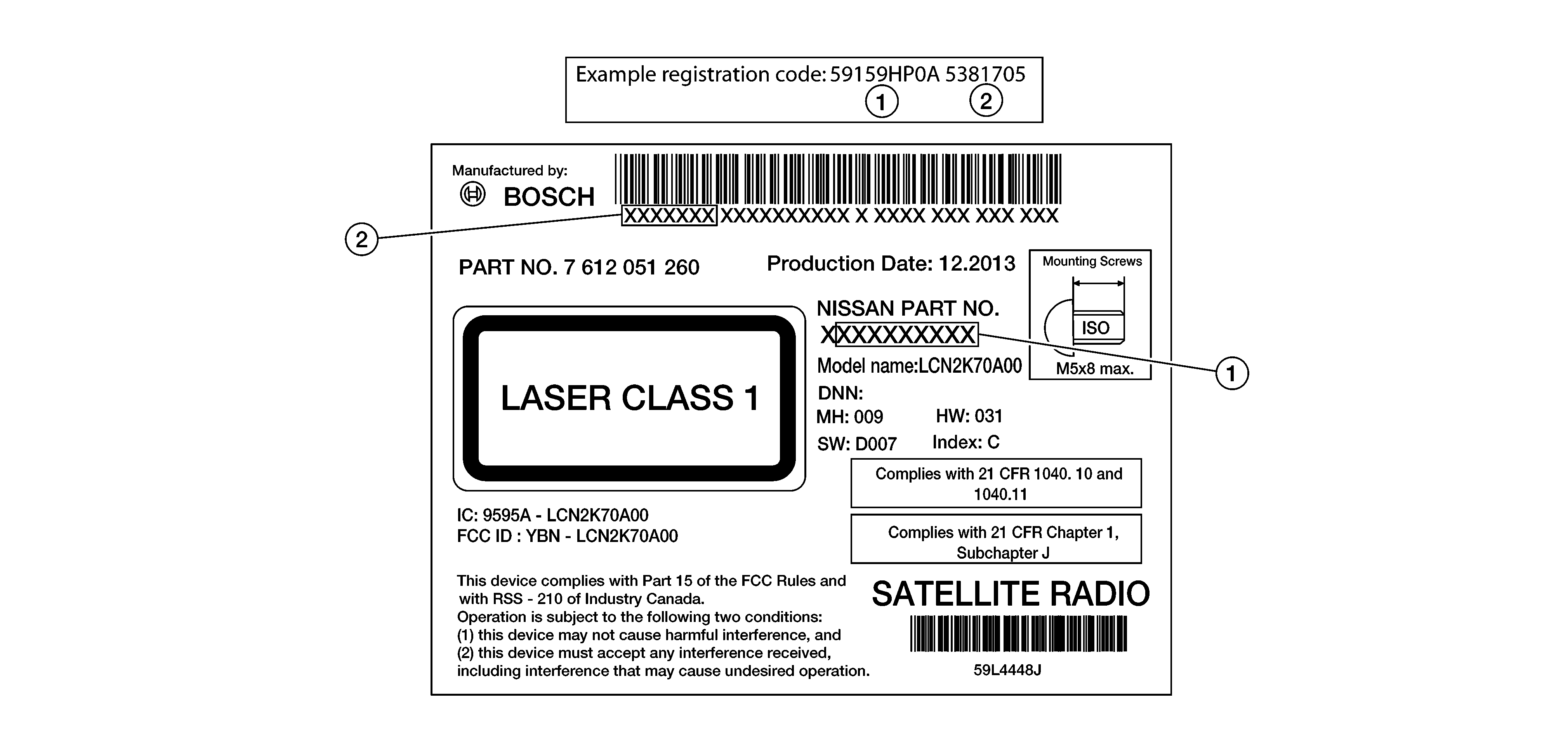

- Refer to the replacement AV control unit's label located on the top of the AV control unit.
- Create a registration code to supply to NISSAN Owner Services by combining the last 9 digits of the NISSAN PART NO. (1) and the first 7 digits of the bar code number (2).
- Record the registration code.
GO TO 2.

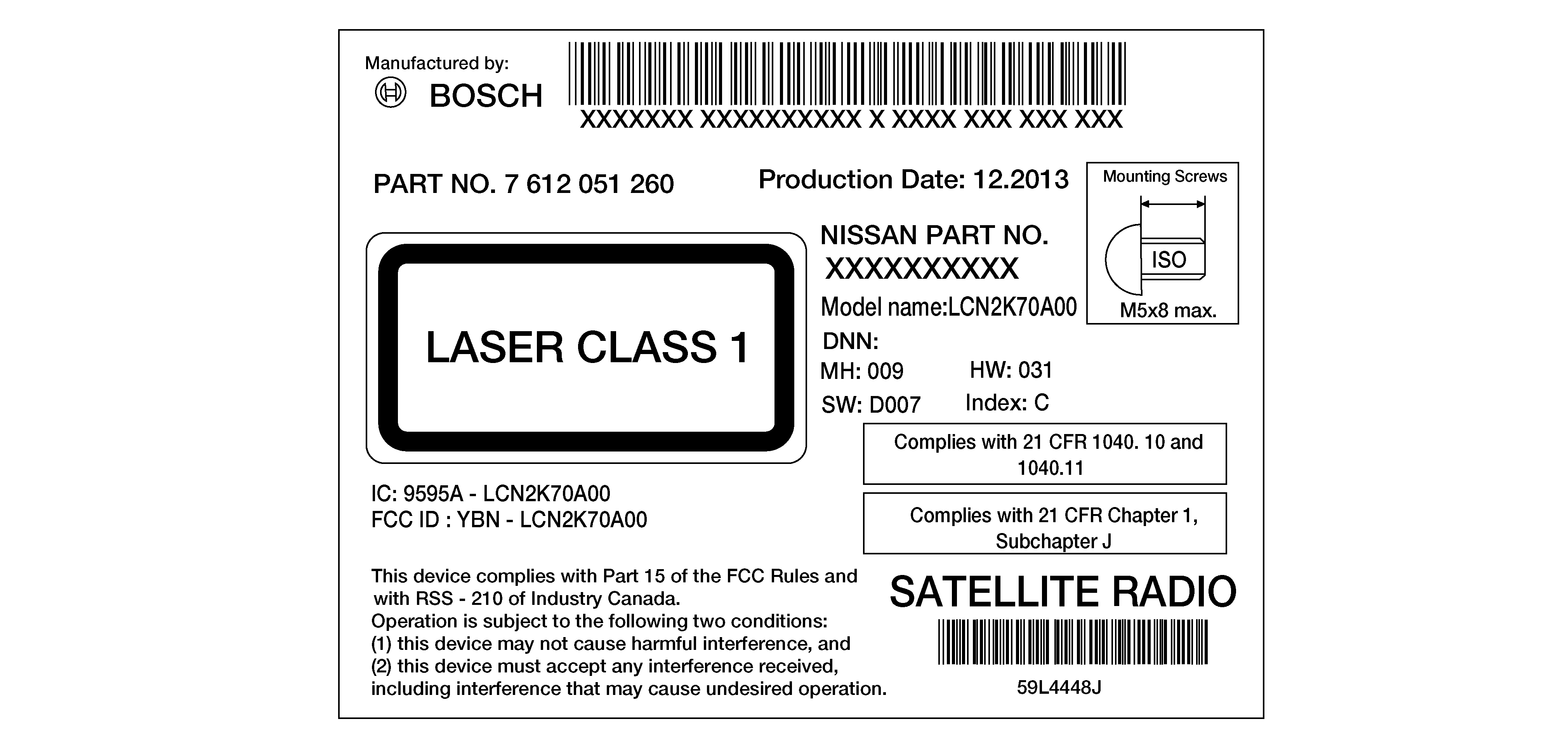

- Refer to the replacement AV control unit's label located on the top of the AV control unit.
- REGISTER REPLACEMENT AV CONTROL UNIT
Register the replacement AV control unit by contacting NISSAN Owner Services. Refer to TSB.
GO TO 3.
- OPERATION CHECK
Verify that the AV control unit "APPS" function operates normally.
Work End.
