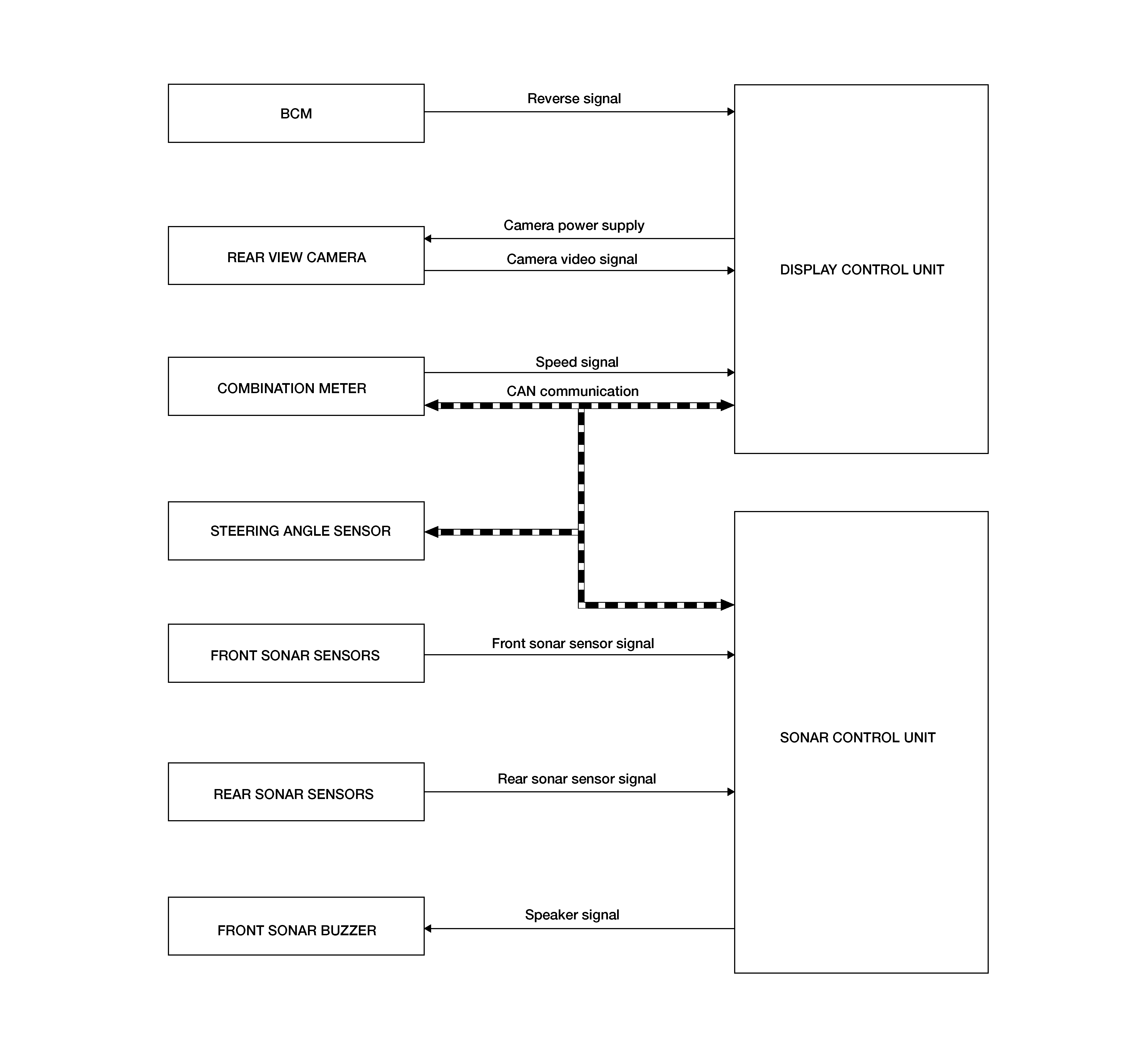

System Diagram
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
Display Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
Steering angle sensor
|
Steering angle signal
|
Sonar Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
TCM
|
Shift position signal
|
|
ABS actuator and electric unit (control unit)
|
Vehicle speed signal
|
