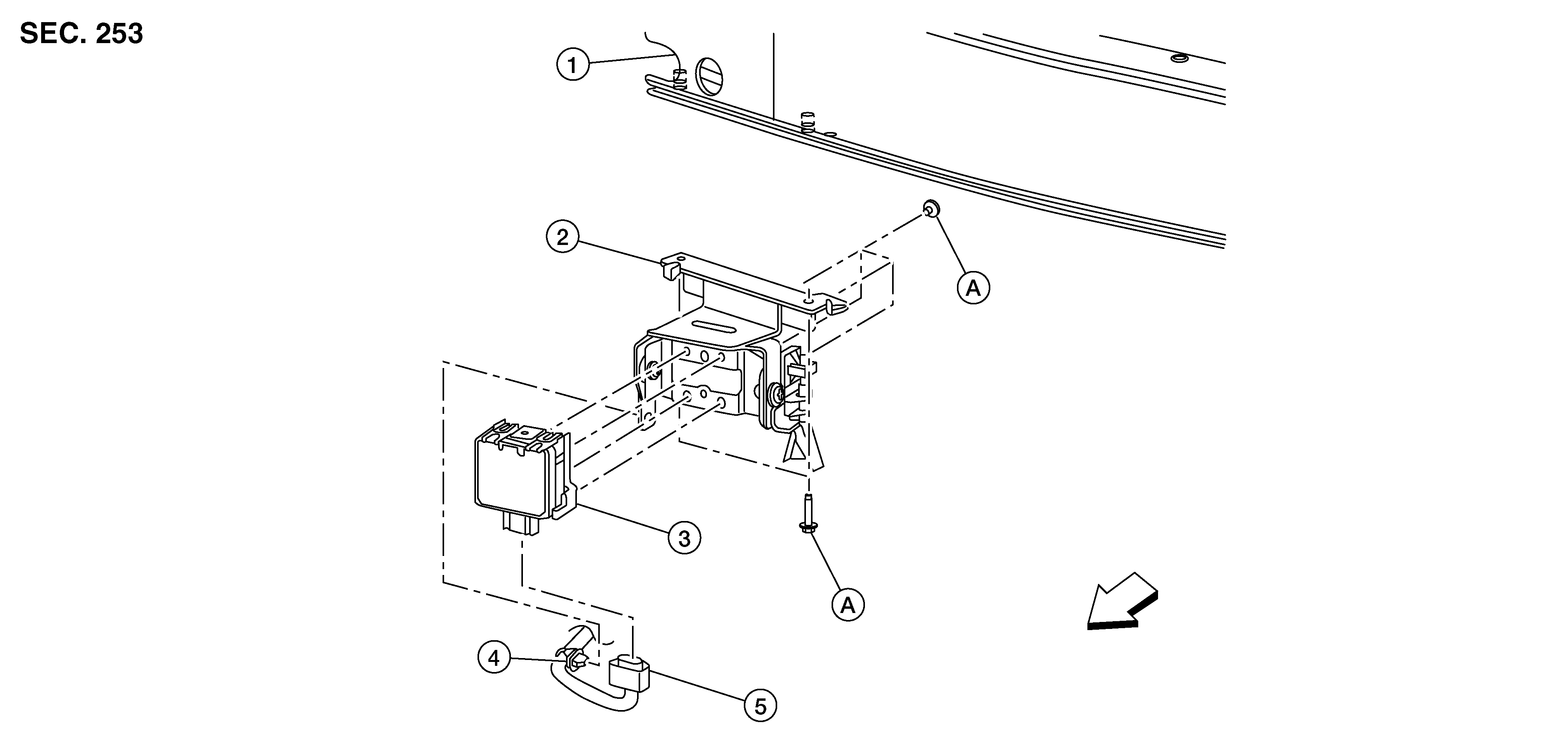

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front bumper reinforcement |
2. |
Distance sensor (ICC sensor) bracket |
3. |
Distance sensor (ICC sensor) |
|
4. |
Distance sensor (ICC sensor) harness connector |
A. |
Refer to Removal and Installation . |
. |
|
|
|
Front |
