Distance Sensor (ICC Sensor) Initial Vertical Alignment

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The distance sensor (ICC sensor) initial vertical alignment procedure must be performed anytime the distance sensor is removed and reinstalled.

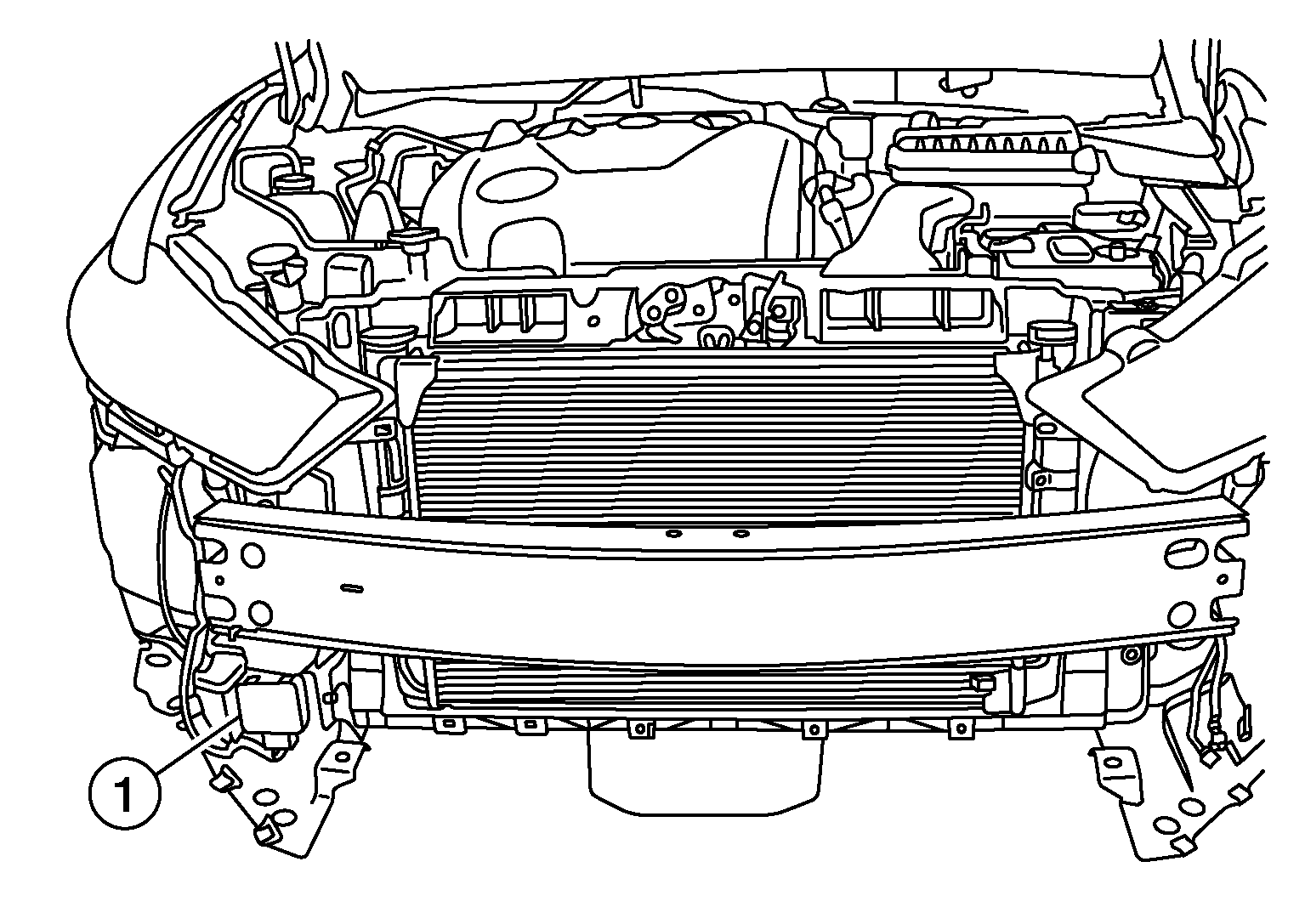

The distance sensor (ICC sensor) (1) is located near the right front headlamp behind the front bumper fascia.

Courtesy of NISSAN NORTH AMERICA, INC.

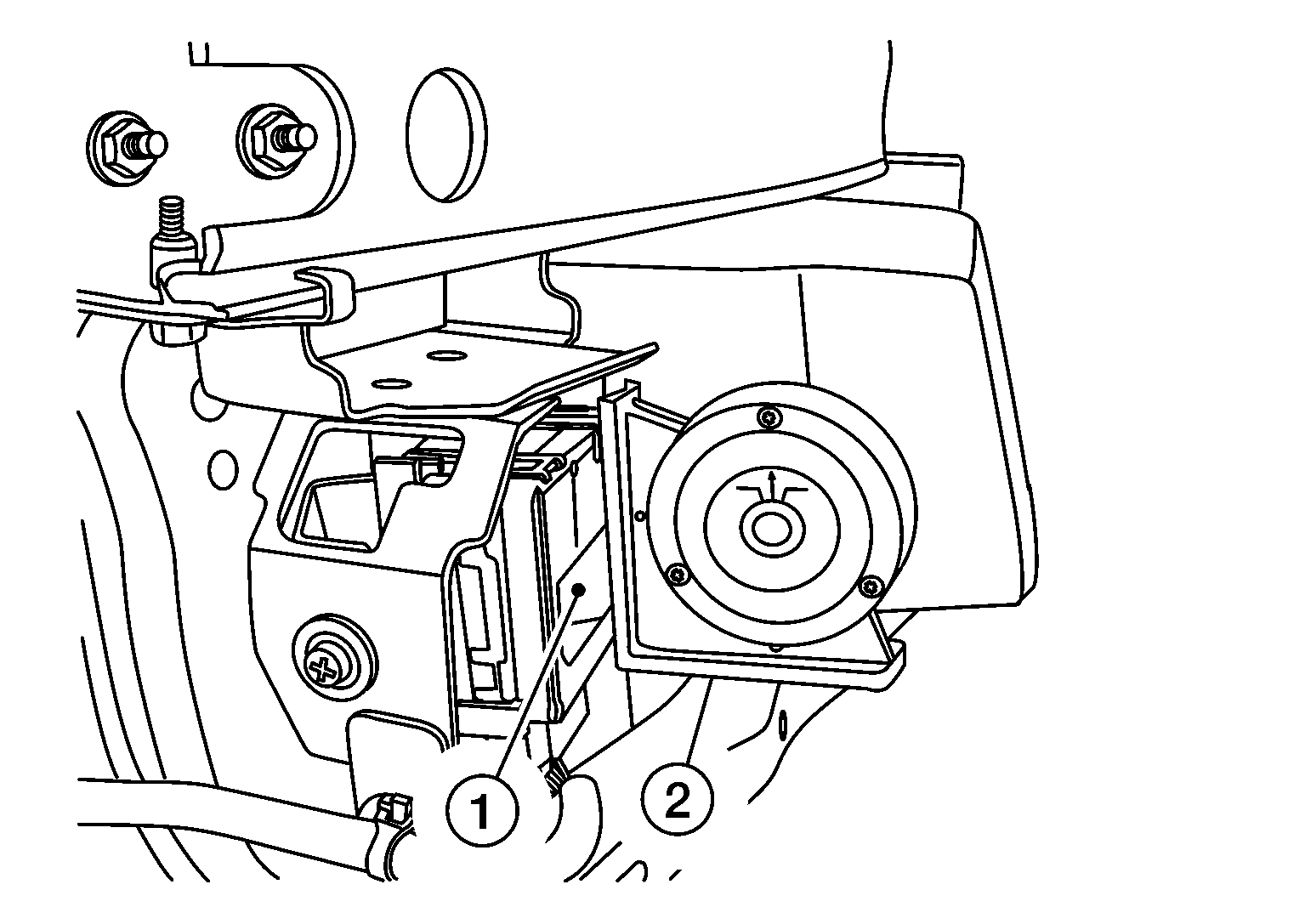

Place the small level or angle meter (2) against the face of the distance sensor (ICC sensor) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

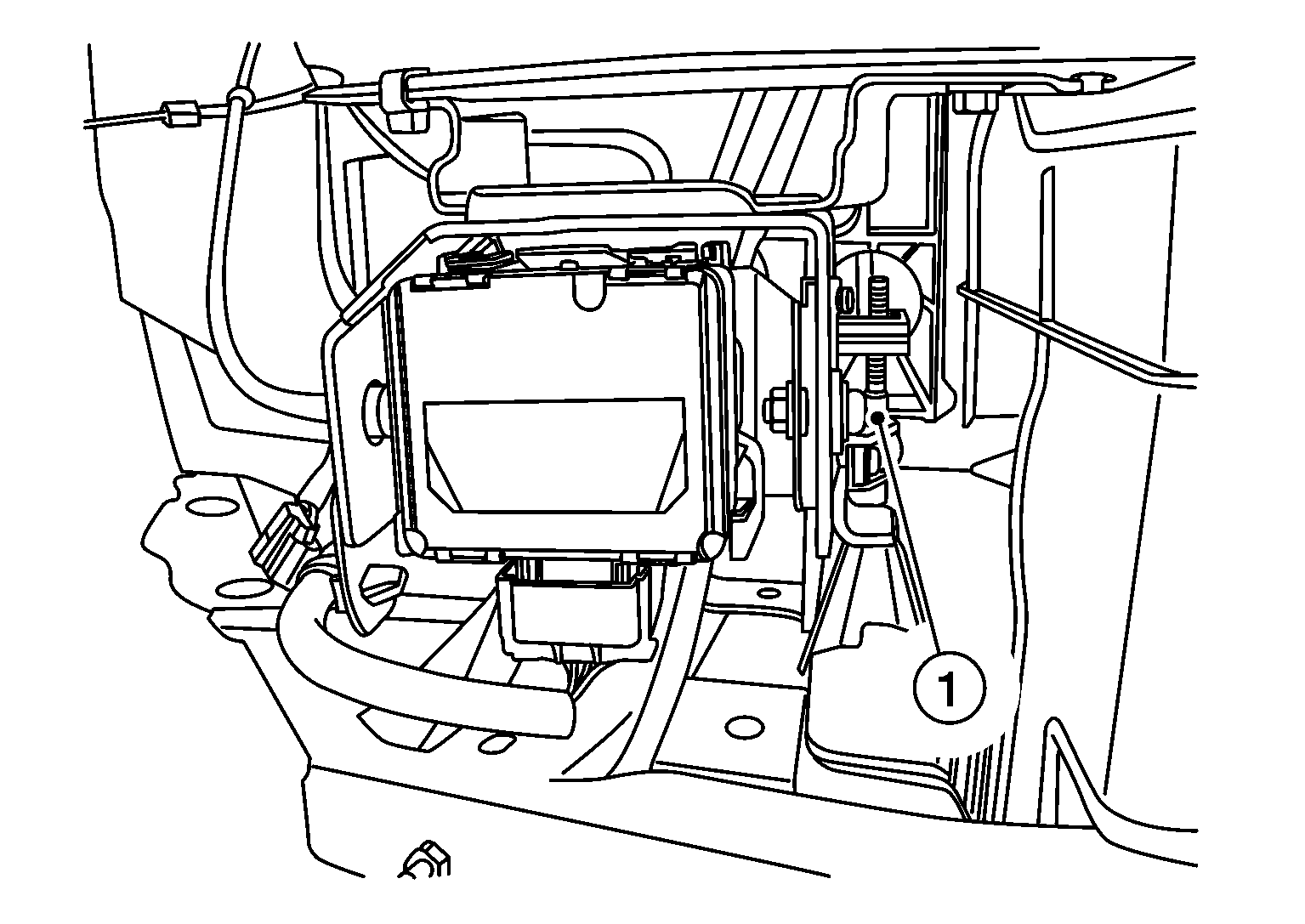

Turn the distance sensor (ICC sensor) adjustment screw (1) to level the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.
Ensure the distance sensor (ICC sensor) electrical connector located on the bottom of the sensor is connected.
Perform the distance sensor (ICC sensor) alignment procedure. Refer to Description .
