Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

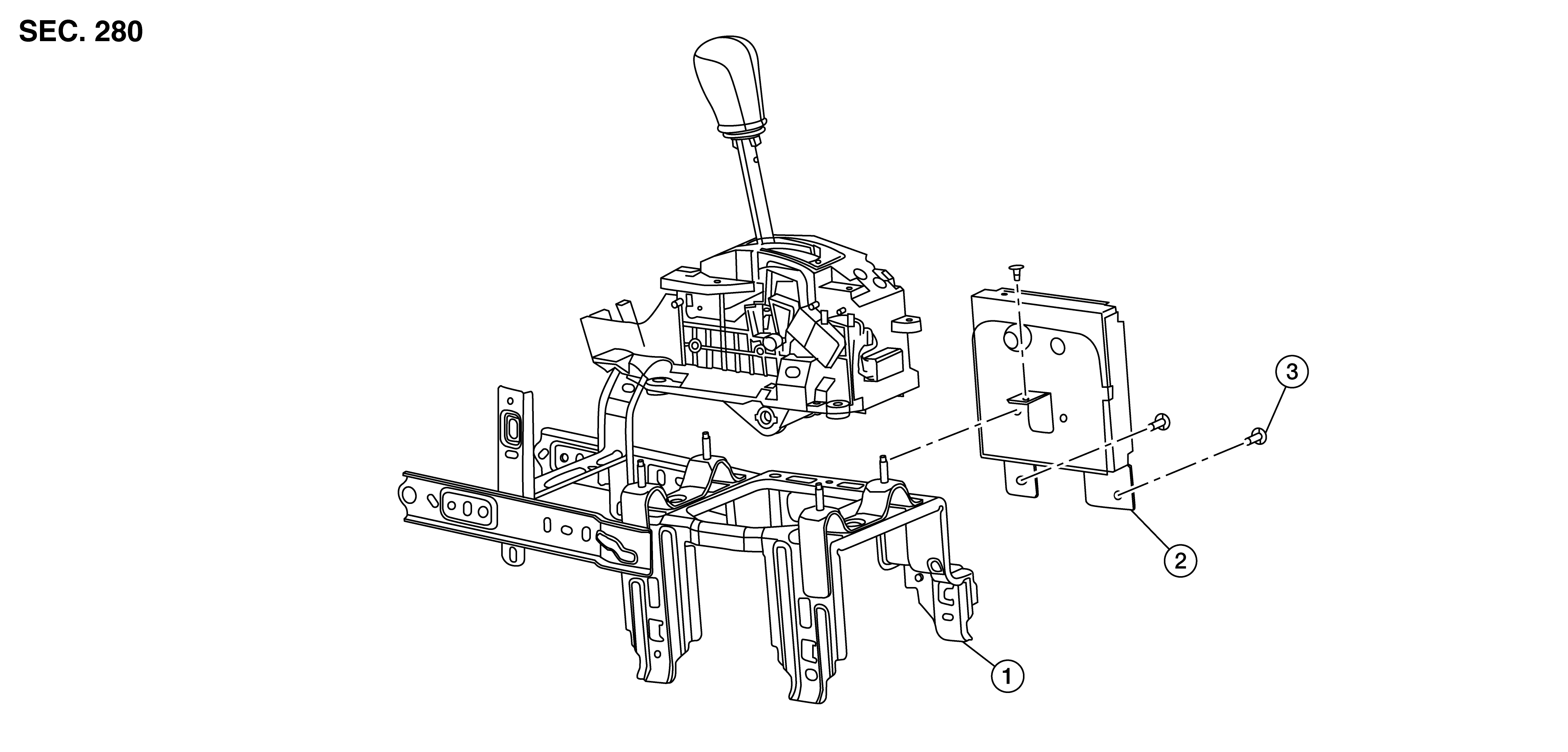

GNSALNIA1332Z-332Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bracket

2.

Around view monitor control unit

3.

Screw
