Switch Name and Function

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

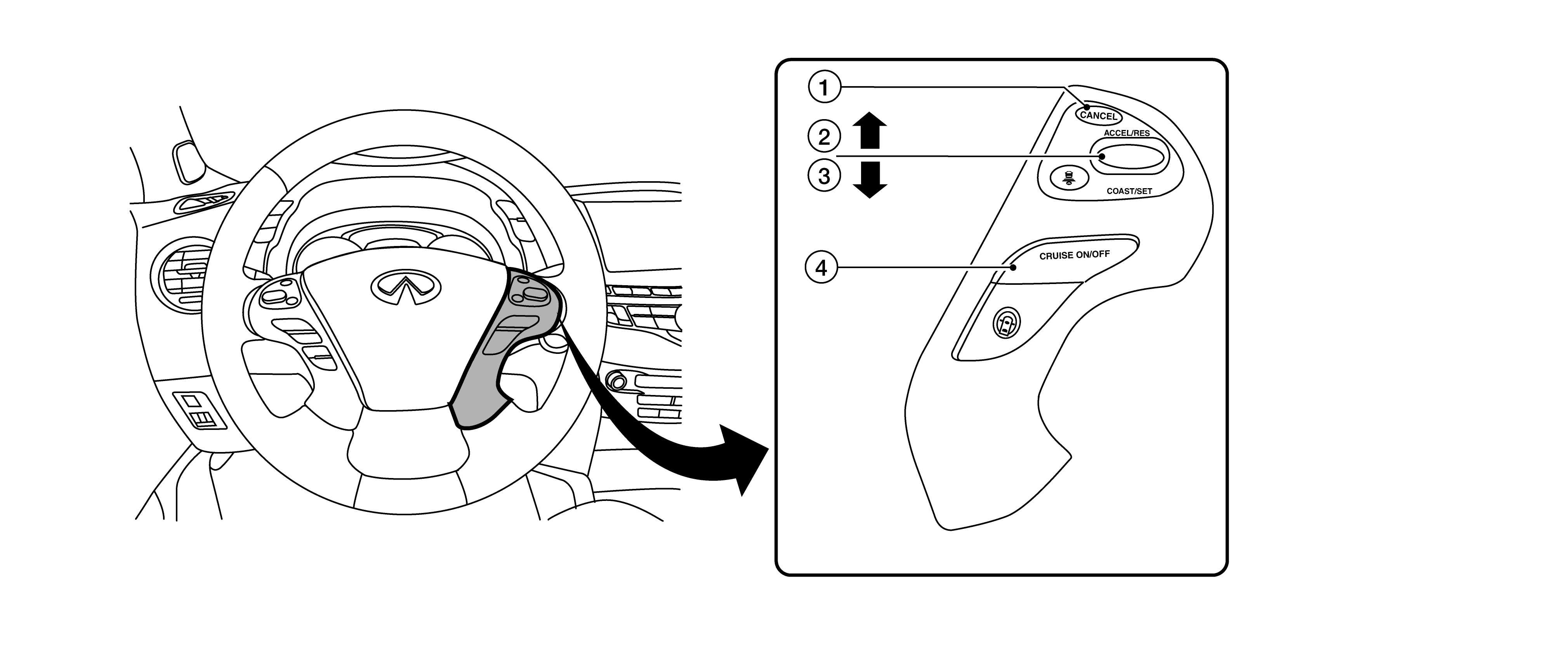

GNSDB113103Courtesy of NISSAN NORTH AMERICA, INC.

No.

Description

Function

1

CANCEL switch

Deactivates system without erasing set speed

2

RESUME/ACCELERATE switch

Resumes set speed or increases speed incrementally

3

SET/COAST switch

Sets desired cruise speed or reduces speed incrementally

4

MAIN switch

Master switch to activate the system (Press for more than 1.5 seconds)
