Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

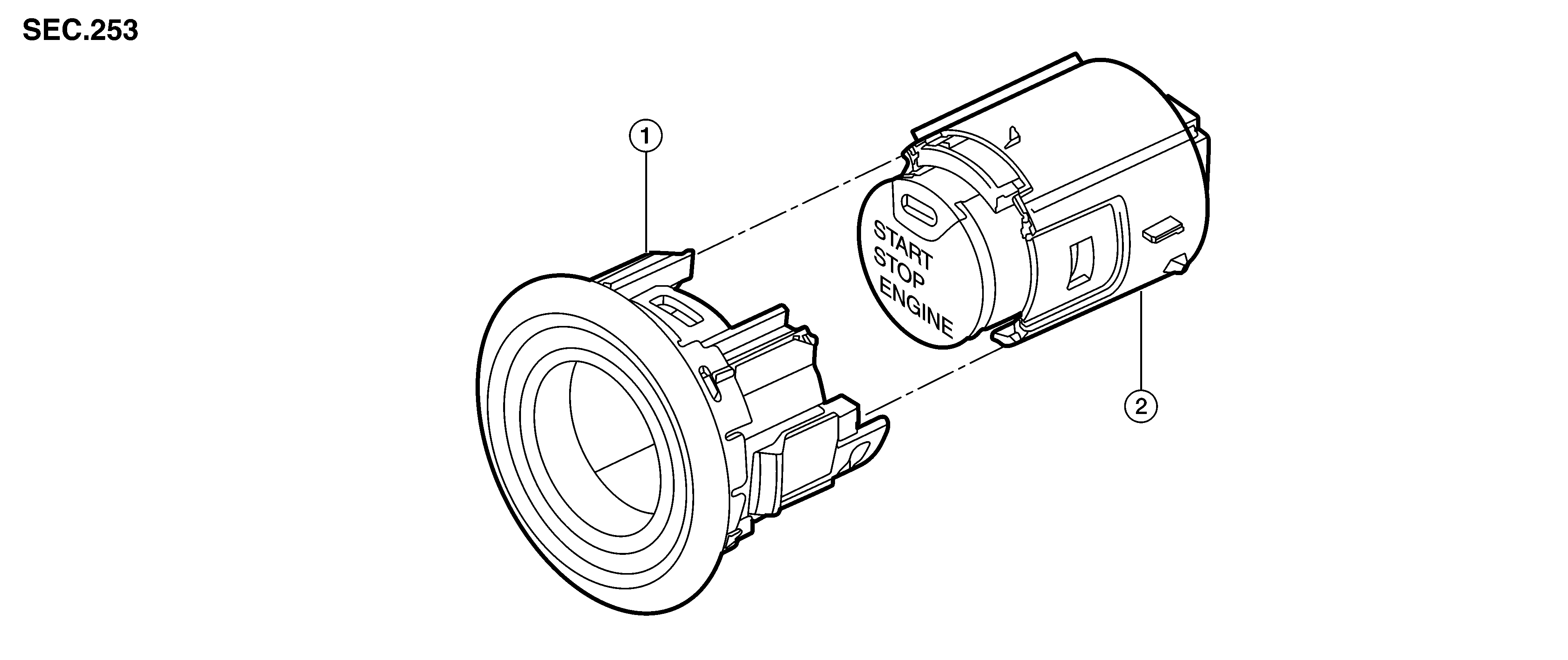

GNSDB120131Courtesy of NISSAN NORTH AMERICA, INC.

1.

NATS antenna amp.

2.

Push-button ignition switch
