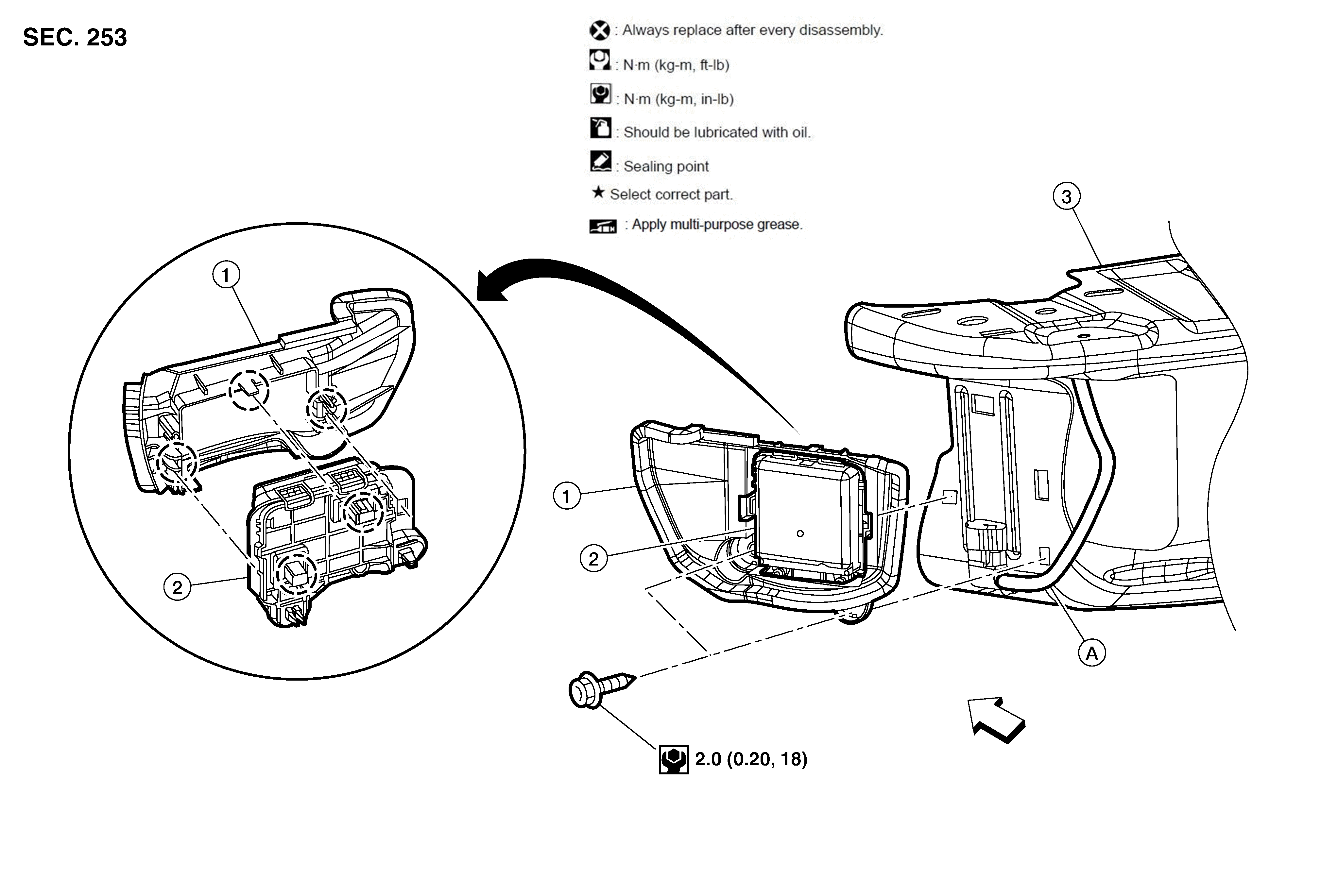

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Splash guard	2.	Side radar	3.	Rear bumper
A.	Rear bumper harness		Pawl		Front

NOTE: LH shown, RH similar.
