Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

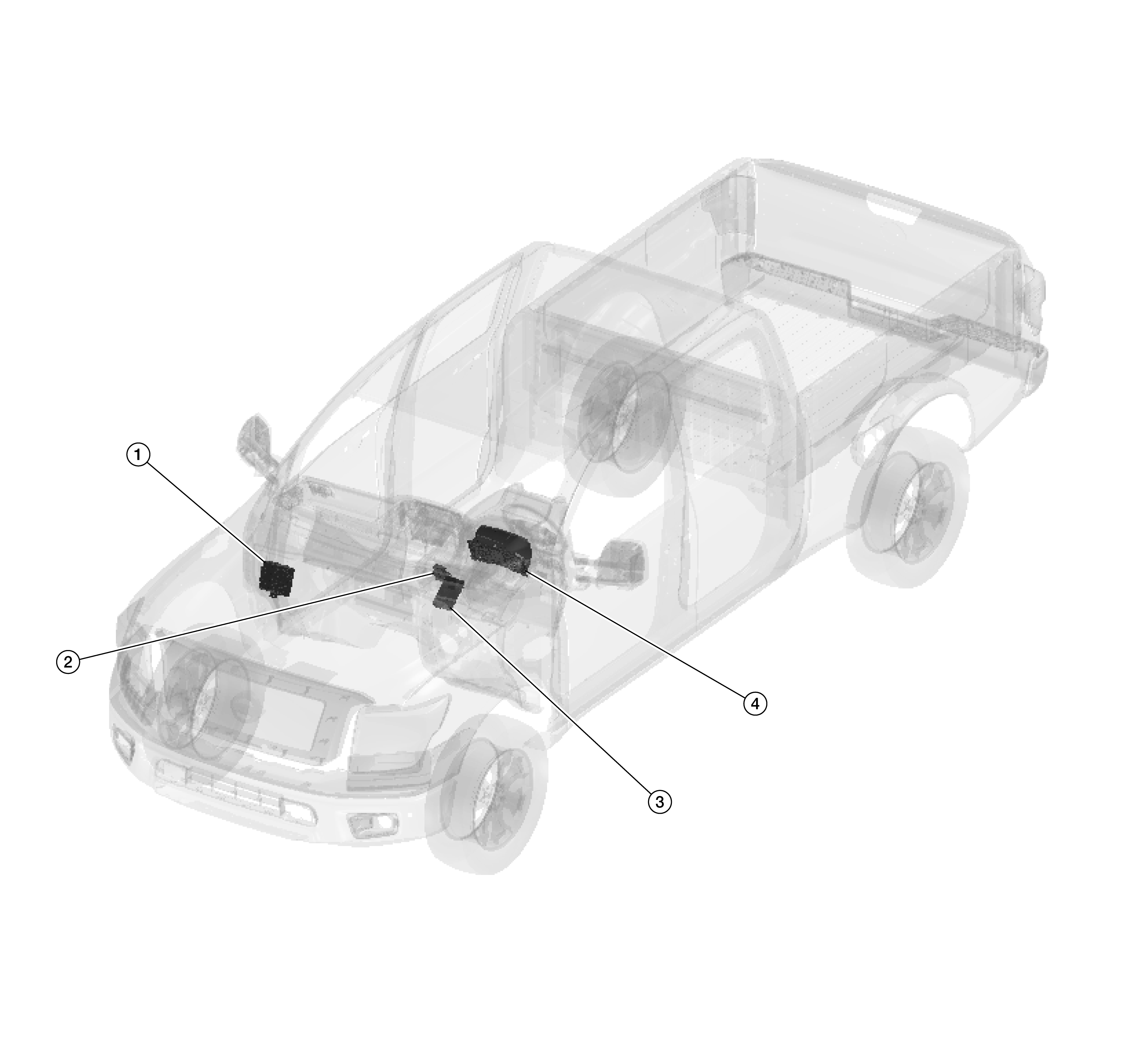

GNSALMIA0874Z-874Courtesy of NISSAN NORTH AMERICA, INC.

1.

IPDM E/R

Refer to Component Parts Location .

2.

CAN gateway

Refer to Component Parts Location .

3.

BCM

Refer to Component Parts Location .

4.

Combination meter

Refer to Component Parts Location (TYPE A) or Component Parts Location (TYPE B).
