Disassembly and Assembly: Disassembly

  1. Remove latch handle and lid inside finisher from center console lid.
  2. Remove center console lid and hinge assembly.
  3. Remove storage tray.
  4. Disconnect harness connectors from power socket (if equipped) and AC 120V outlet (if equipped), and remove the outlet panel finisher.
  5. Release the metal clips and separate the center console upper finisher from the center console housing assembly.

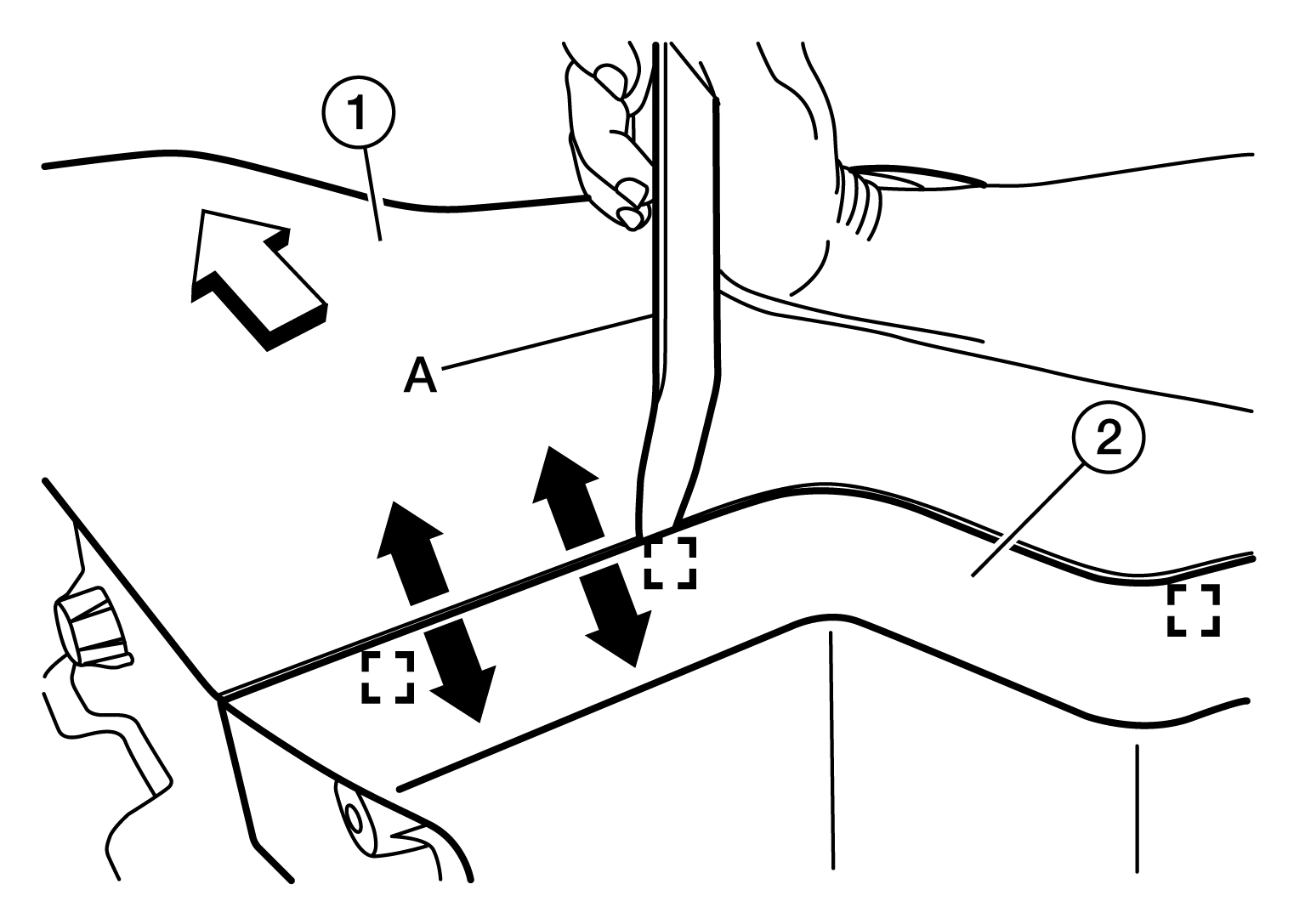

  6. Release the metal clips using a suitable tool (A) and separate the center console rear finisher (1) from center console housing assembly (2).
    GNSALJIA0634Z-634Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Front
