Removal and Installation: Removal
CAUTION:
Before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to Description .
- Disconnect the negative battery terminal. Refer to Battery Disconnect .
- Remove the combination meter. Refer to Removal and Installation .

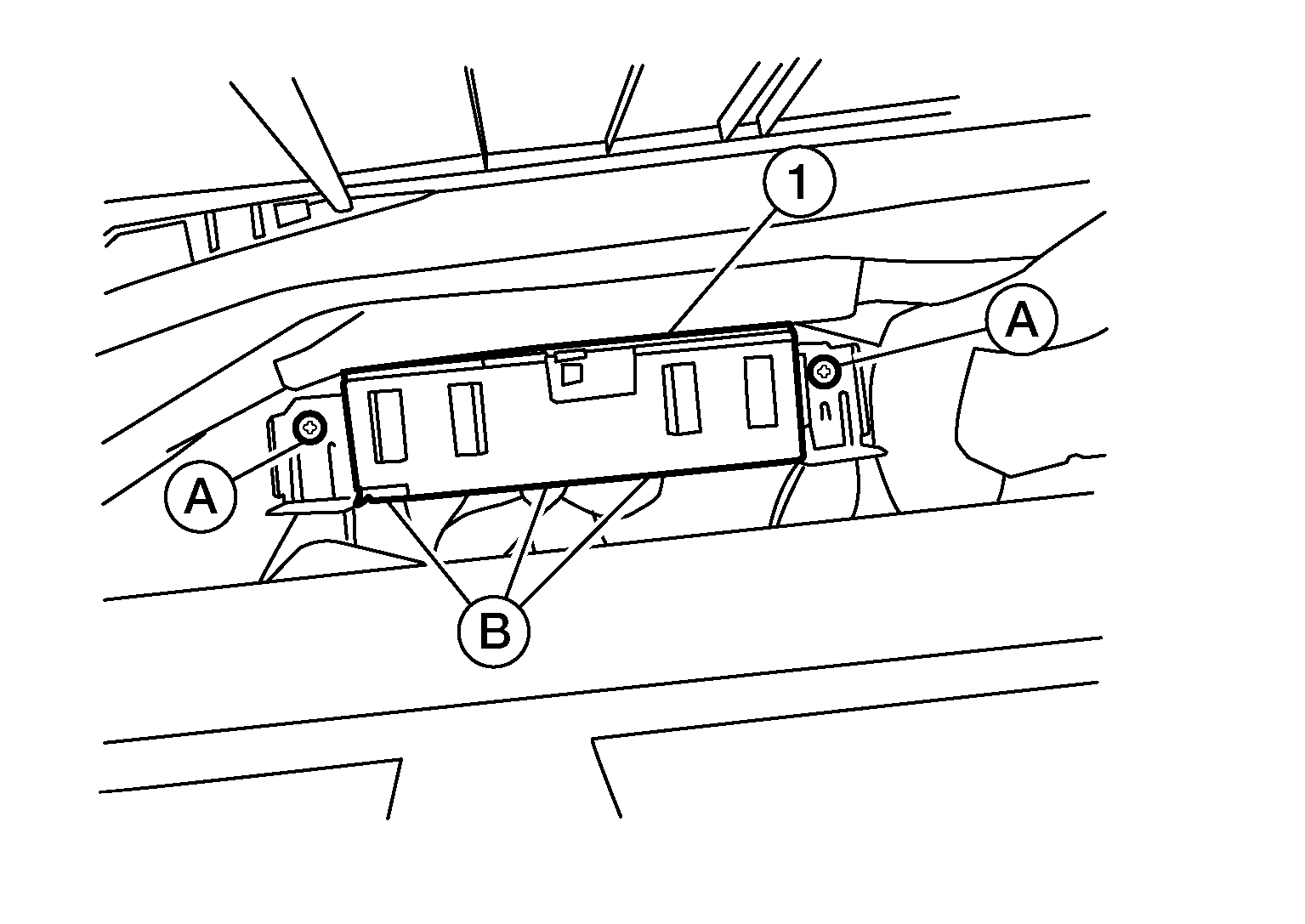

- Remove the BCM screws (A).
- Pull out the BCM (1).
- Disconnect the harness connectors (B) from the BCM (1) and remove.
