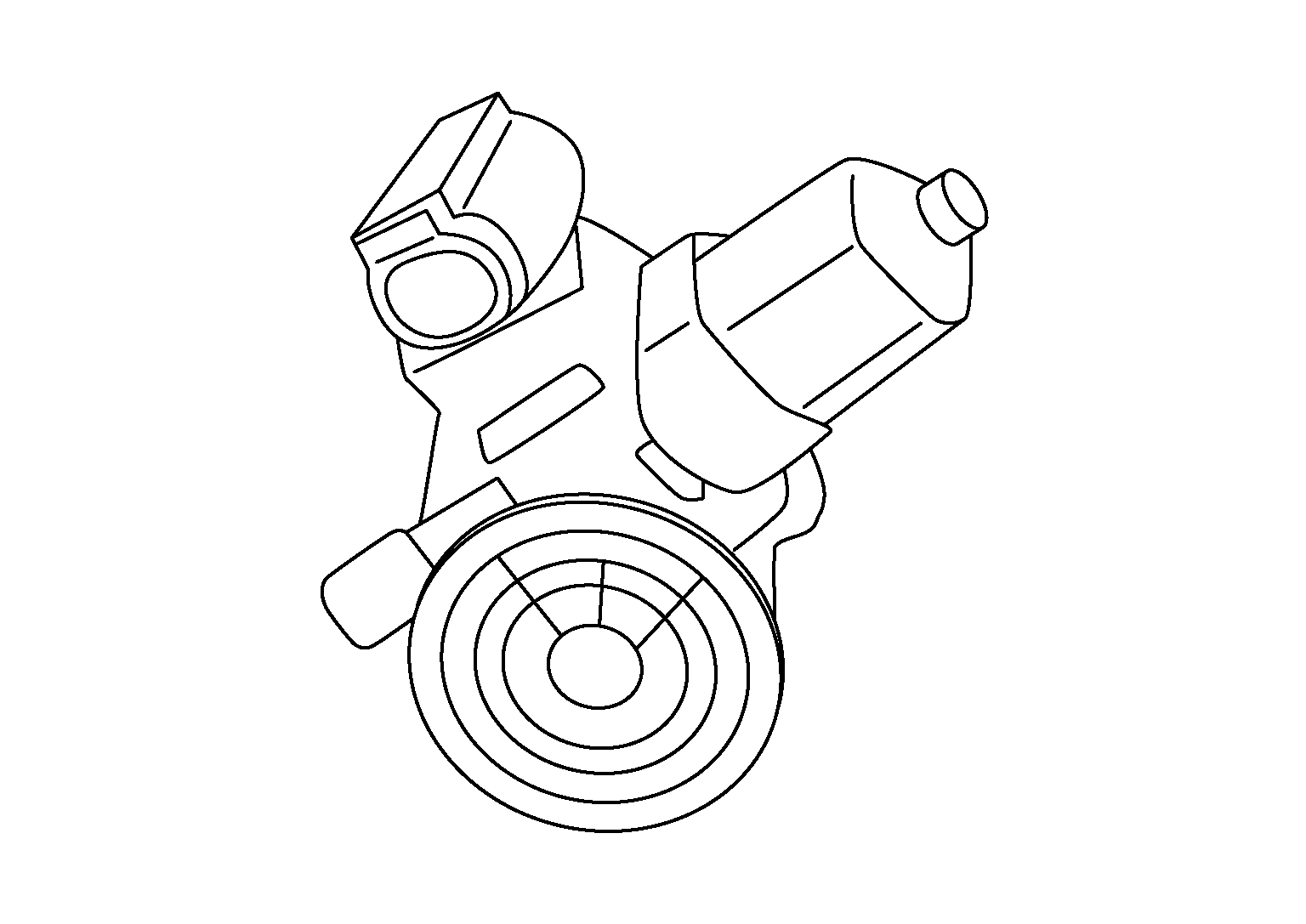

Front power window motor RH

Receives voltage and ground from main power window and door lock/ unlock switch and from the power window and door lock switch RH.

Courtesy of NISSAN NORTH AMERICA, INC.
Polarity of voltage and ground is controlled by the main power window and door unlock switch or the power window and door lock switch RH.
The lock switch located in the main power window and door lock/unlock switch, when switched to the lock position, opens the ground circuit of the power window and door lock/unlock switch RH, disabling the RH switch operation.
