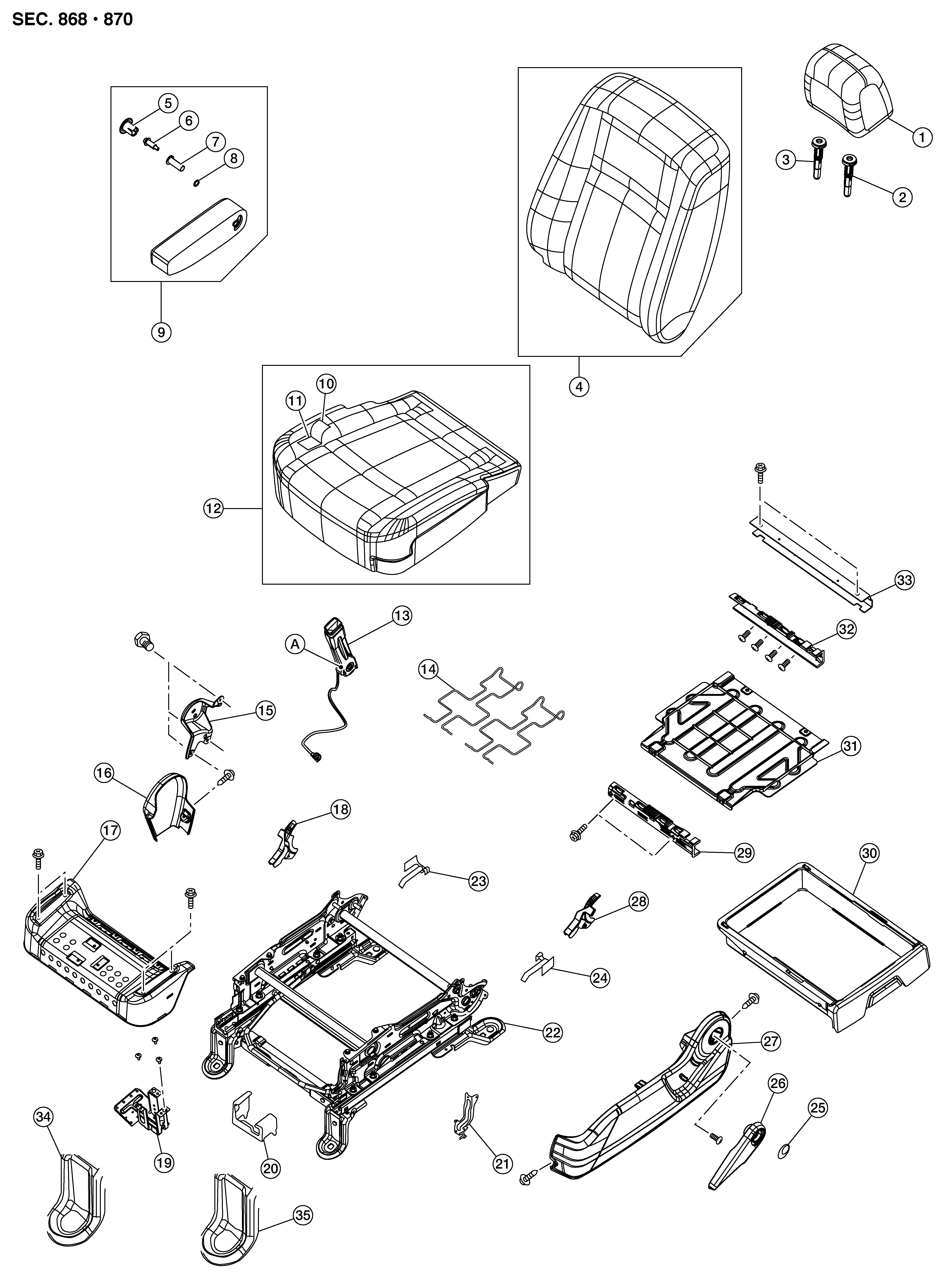

Driver's Seat
|
1. |
Headrest |
2. |
Headrest holder (free) |
3. |
Headrest holder (locked) |
|
4. |
Seatback cushion assembly |
5. |
Armrest bolt cover (if equipped) |
6. |
Armrest bolt (if equipped) |
|
7. |
Armrest insert (if equipped) |
8. |
Armrest washer (if equipped) |
9. |
Armrest assembly (if equipped) |
|
10. |
Seat cushion trim |
11. |
Seat cushion pad |
12. |
Seat cushion assembly |
|
13. |
Seat belt buckle |
14. |
Seat cushion spring |
15. |
Armrest bracket |
|
16. |
Seat cushion outer finisher (RH) |
17. |
Seat cushion frame |
18. |
Seat cushion inner finisher (RH) |
|
19. |
Wiring harness bracket |
20. |
Front inner slide cover |
21. |
Seat cushion inner finisher (LH) |
|
22. |
Seat adjuster assembly |
23. |
Rear inner slide cover (RH) |
24. |
Rear inner slide cover (LH) |
|
25. |
Recline lever cover |
26. |
Recline lever |
27. |
Seat cushion outer finisher (LH) |
|
28. |
Seat cushion inner finisher (LH) |
29. |
Drawer slide (LH) (if equipped) |
30. |
Drawer assembly (if equipped) |
|
31. |
Drawer cover (if equipped) |
32. |
Drawer slide (RH) (if equipped) |
33. |
Rear reinforcement bracket (if equipped) |
|
34. |
Slide rail finisher (RH) |
35. |
Slide rail finisher (LH) |
A. |
Refer to Front Seat Belt |
|

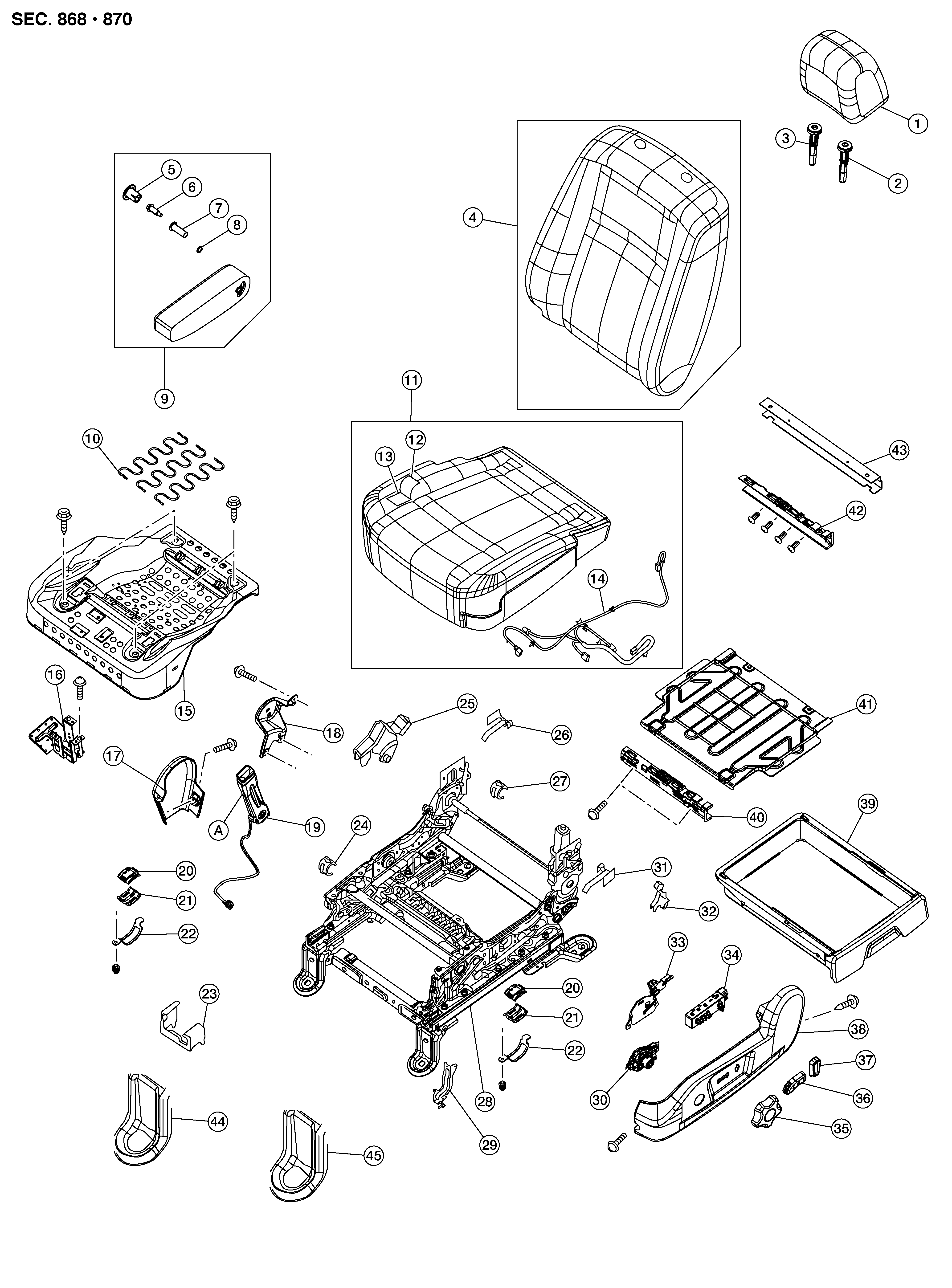

1. |
Headrest |
2. |
Headrest holder (free) |
3. |
Headrest holder (locked) |
|
4. |
Seatback cushion assembly |
5. |
Armrest bolt cover (if equipped) |
6. |
Armrest bolt (if equipped) |
|
7. |
Armrest insert (if equipped) |
8. |
Armrest washer (if equipped) |
9. |
Armrest assembly (if equipped) |
|
10. |
Seat cushion spring |
11. |
Seat cushion assembly |
12. |
Seat cushion trim |
|
13. |
Seat cushion pad |
14. |
Wiring harness |
15. |
Seat cushion frame |
|
16. |
Wiring harness bracket |
17. |
Seat cushion outer finisher (RH) |
18. |
Armrest bracket |
|
19. |
Seat belt buckle |
20. |
Upper attaching clip |
21. |
Lower bushing |
|
22. |
Clamp |
23. |
Front inner slide cover |
24. |
Clip |
|
25. |
Seat cushion inner finisher (RH) |
26. |
Rear inner slide cover (RH) |
27. |
Clip |
|
28. |
Seat adjuster assembly |
29. |
Seat cushion inner finisher (LH) |
30. |
Lumbar actuator |
|
31. |
Rear outer slide cover |
32. |
Recline outer finisher |
33. |
Lumbar actuator bracket |
|
34. |
Seat switch assembly |
35. |
Lumbar knob |
36. |
Slide knob |
|
37. |
Recline knob |
38. |
Seat cushion outer finisher (LH) |
39. |
Drawer assembly (if equipped) |
|
40. |
Drawer slide (LH) (if equipped) |
41. |
Drawer cover (if equipped) |
42. |
Drawer slide (RH) (if equipped) |
|
43. |
Rear reinforcement bracket (if equipped) |
44. |
Slide rail finisher (RH) |
45. |
Slide rail finisher (LH) |
|
A. |
Refer to Front Seat Belt |
