Removal and Installation: Removal

  1. Remove the instrument lower panel RH and glove box assembly. Refer to Removal and Installation .

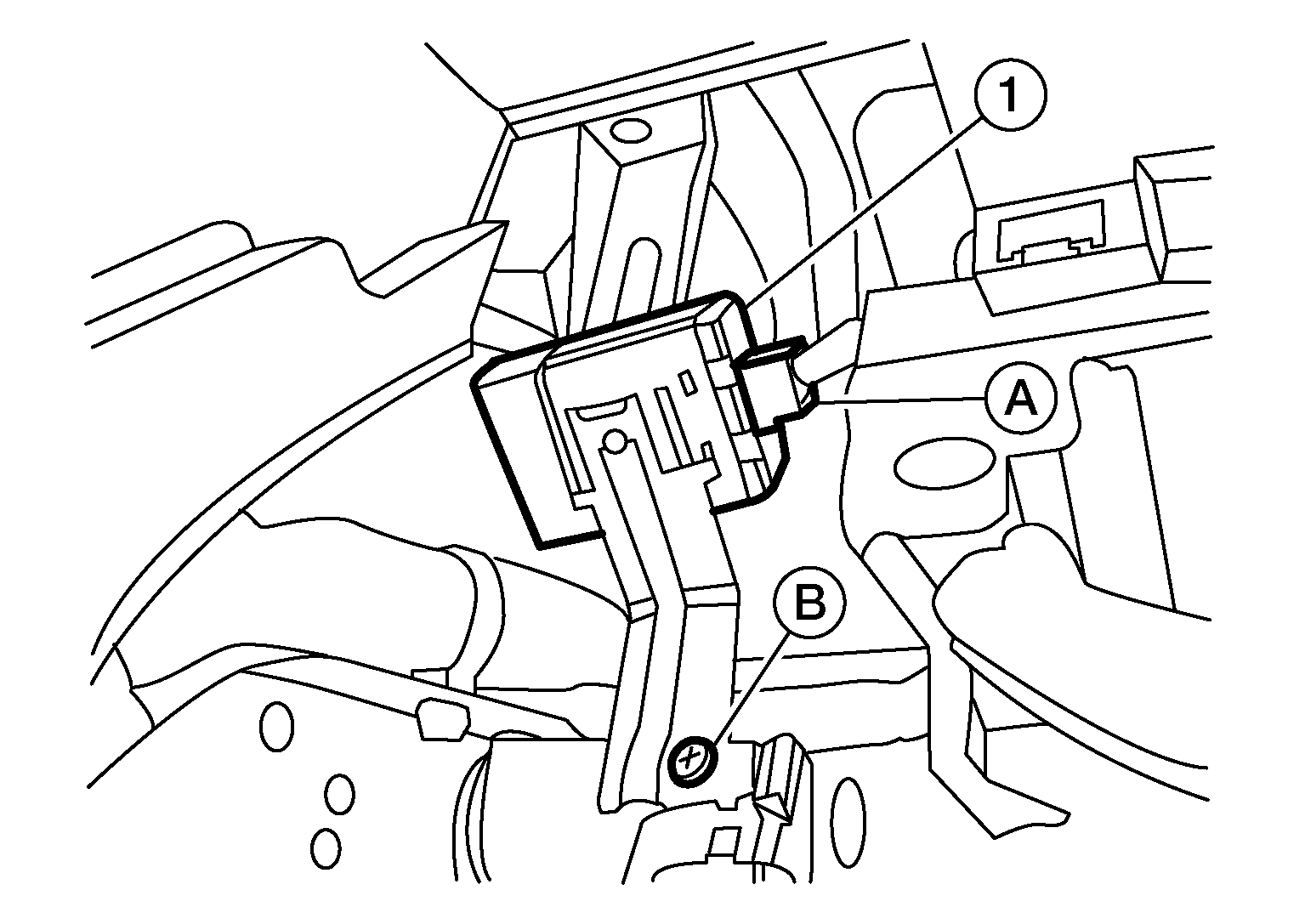

  2. Disconnect the harness connector (A) from remote keyless entry receiver (1).
    GNSDB122550Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the remote keyless entry receiver screw (B) and the remote keyless entry receiver (1).
