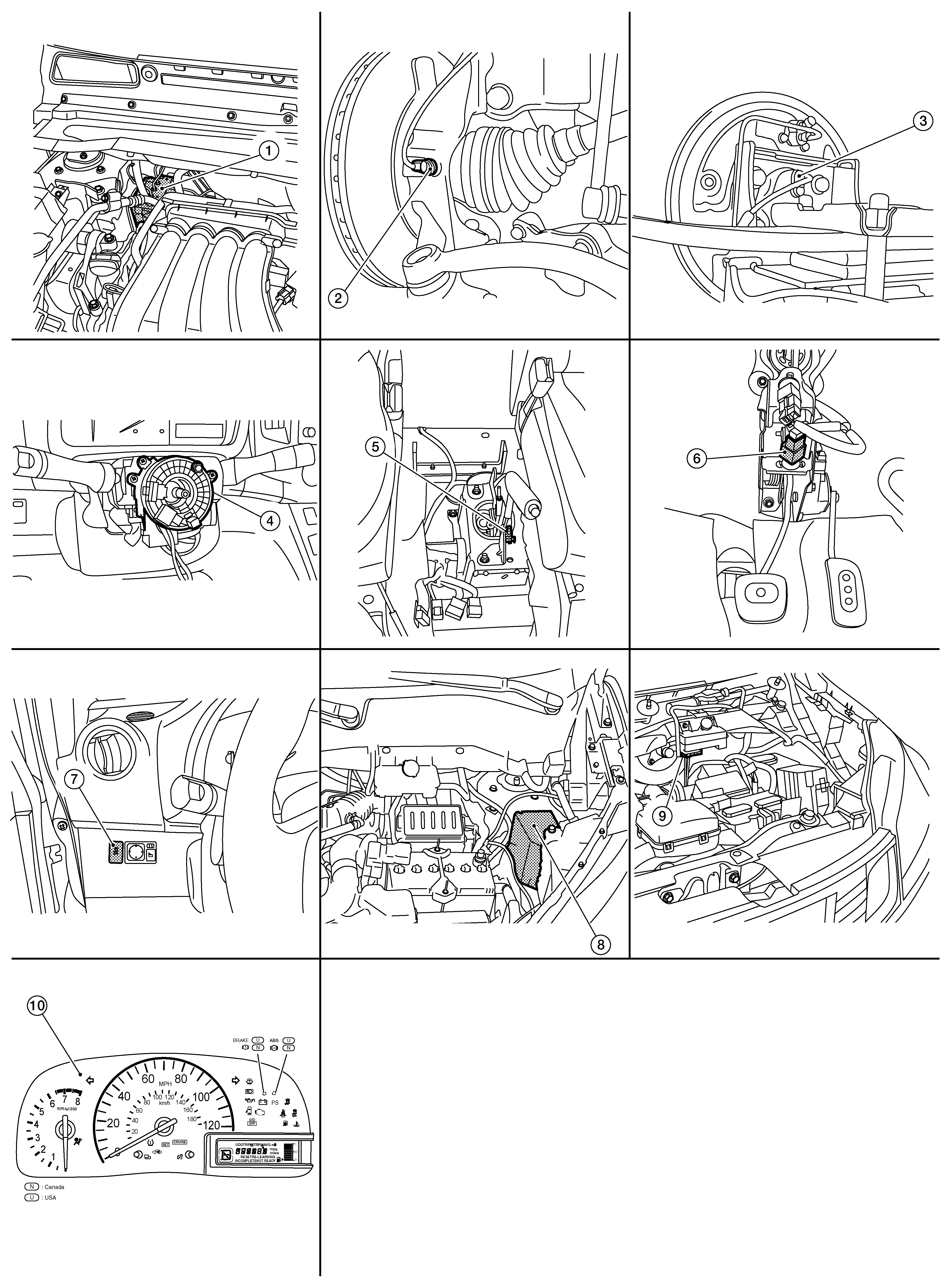

Component Location
|
No. |
Component |
Function |
|
|
1. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
||
|
2. |
Front wheel sensor LH (RH similar) |
Refer to Wheel Sensor and Sensor Rotor . |
|
|
3. |
Rear wheel sensor LH (RH similar) |
||
|
4. |
Steering angle sensor |
Refer to Steering Angle Sensor . |
|
|
5. |
Parking brake switch |
Refer to Parking Brake Switch . |
|
|
6. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
|
7. |
VDC (Vehicle Dynamic Control) OFF switch |
Refer to VDC OFF Switch . |
|
|
8. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
|
|
9. |
Brake fluid level switch |
Refer to Brake Fluid Level Switch . |
|
|
10. |
Combination meter |
Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
|
