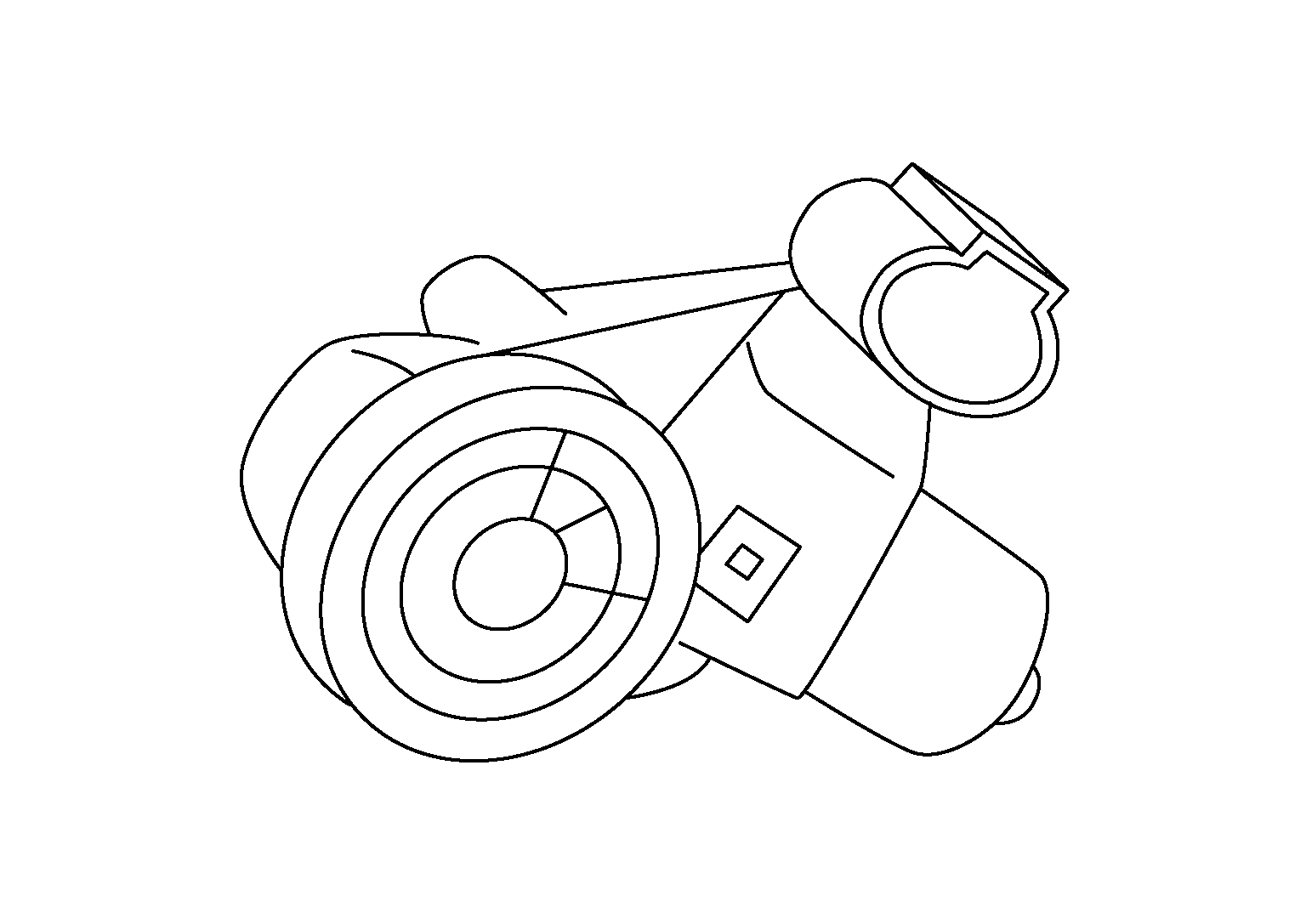

Power Window Motor

Integrates the encoder and power window motor.

Courtesy of NISSAN NORTH AMERICA, INC.
Starts operating with signals from each power window switch.
Transmits power window motor rotation as a pulse signal to power window switch.
Controls anti-pinch operation for the front windows LH and RH.
Located behind either front door finishers.
