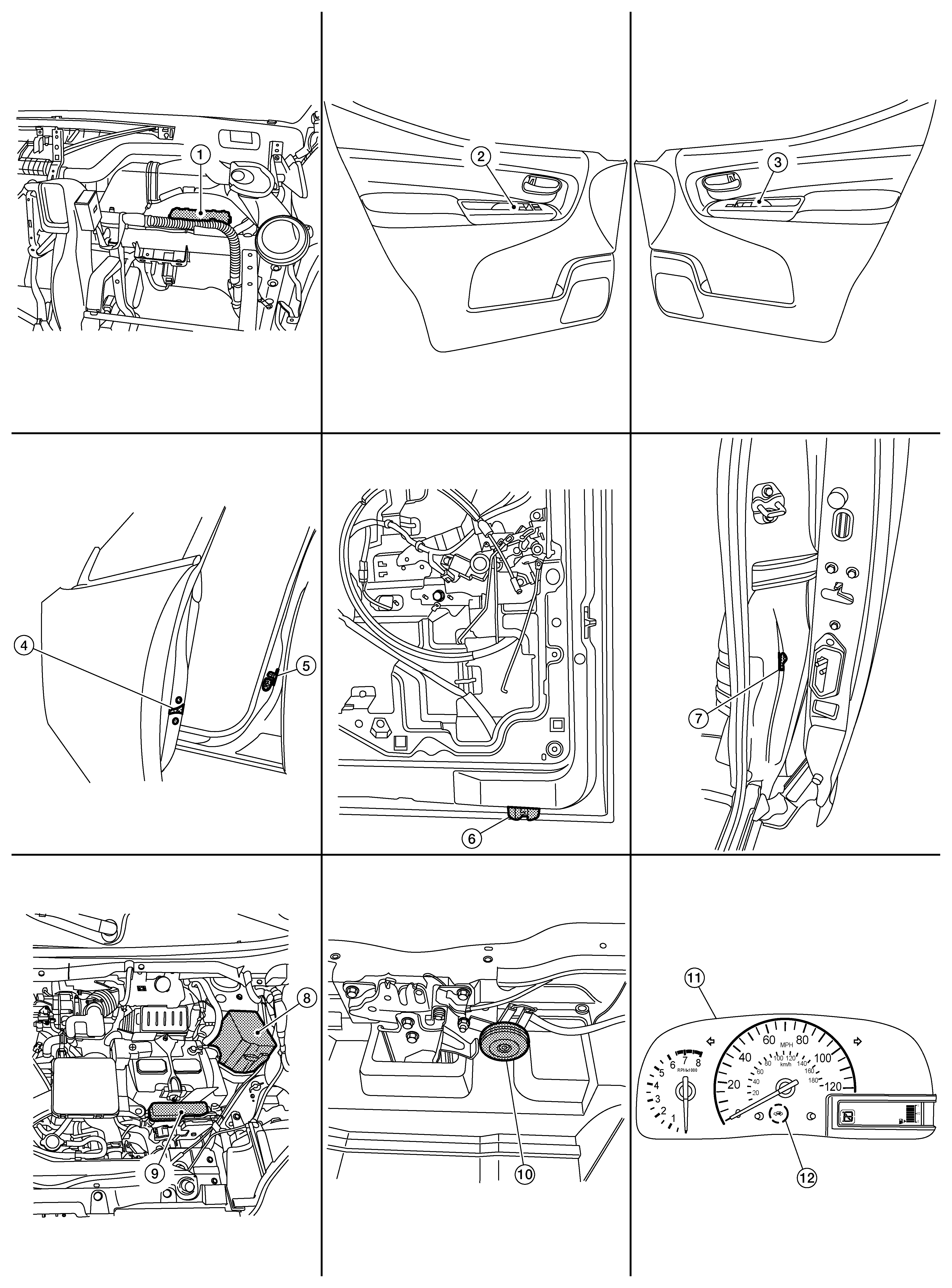

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	BCM (Body Control Module)	Monitors the door switches. Controls the security indicator in the combination meter. Refer to Component Location for detailed component location.
2.	Main power window and door lock/unlock switch	Provides the BCM with the status of the door lock/unlock switch. Refer to Component Location for detailed component location.
3.	Power window and door lock/unlock switch RH
4.	Front door lock assembly LH (key cylinder switch)
5.	Front door switch LH (RH similar)	Provides the BCM with the status of each monitored door. Refer to Component Location for detailed component location.
6.	Back door switch
7.	Sliding door switch LH (RH similar)
8.	IPDM E/R (Intelligent Power Distribution Module Engine Room)	Powers up the horn and the headlamps when the vehicle security system is triggered. Refer to Component Location for detailed component location.
9.	Fuse block (horn relay)	Supplies battery voltage to the horn when enabled.
10.	Horn	Sounds when the vehicle security system is triggered.
11.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Refer to Component Location for detailed component location.
12.	Security indicator lamp	Indicates the status of the security system.
