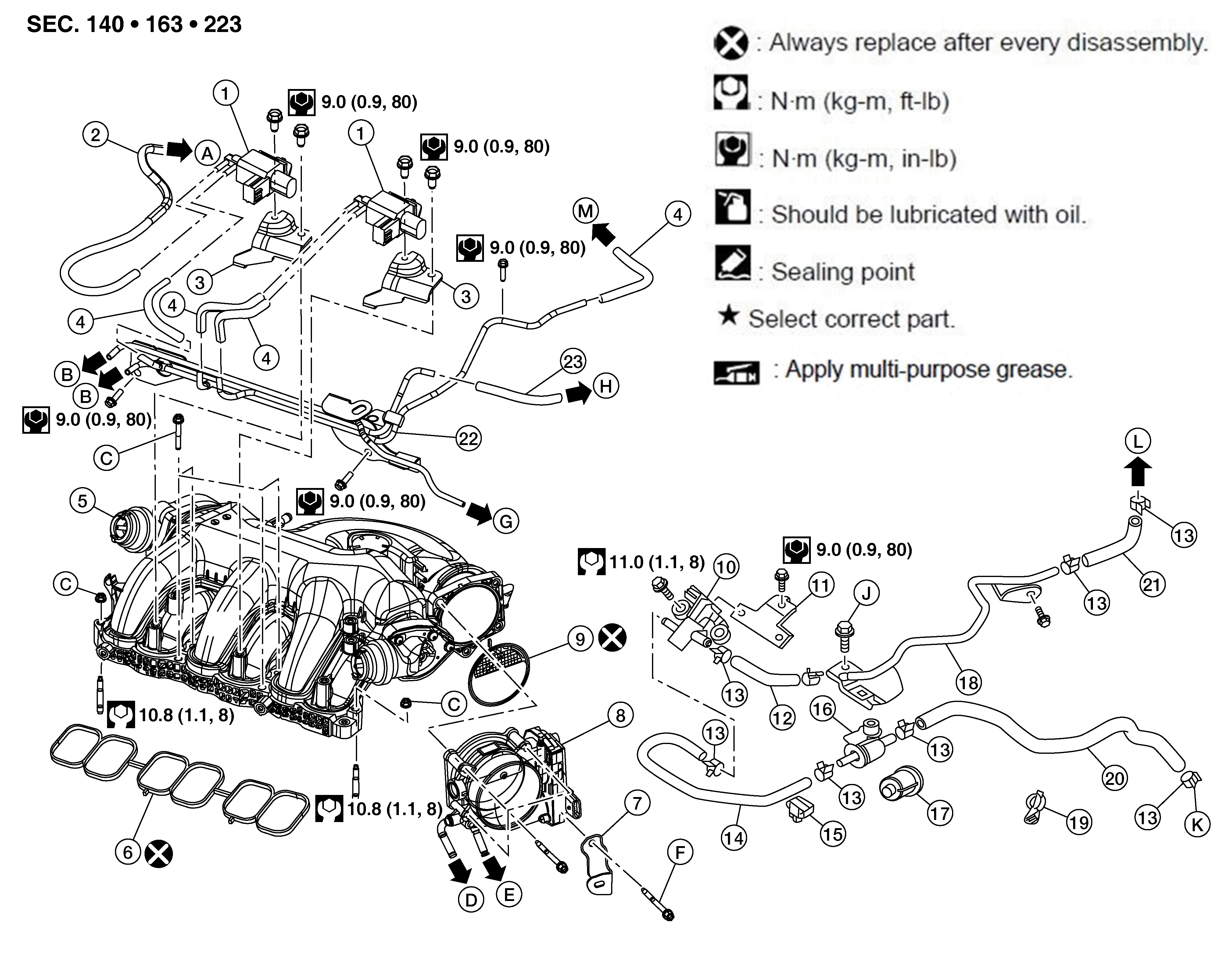

Exploded View
|
1. |
VIAS control solenoid valve |
2. |
Vacuum hose 1 |
3. |
VIAS control solenoid valve bracket |
|
4. |
Vacuum hose 2 |
5. |
Intake manifold collector |
6. |
Intake manifold collector gasket |
|
7. |
Harness bracket |
8. |
Electronic throttle control actuator |
9. |
Electronic throttle control actuator gasket |
|
10. |
EVAP canister purge volume control solenoid valve |
11. |
EVAP canister purge volume control solenoid valve bracket |
12. |
EVAP hose 1 |
|
13. |
Hose clamp |
14. |
EVAP hose 2 |
15. |
Hose clip 1 |
|
16. |
EVAP service port valve (For Mexico) |
17. |
Vacuum delay valve (For United States and Canada) |
18. |
EVAP tube |
|
19. |
Hose clip 2 |
20. |
EVAP hose 3 |
21. |
EVAP hose 4 |
|
22. |
Vacuum tube assembly |
23. |
Vacuum hose 3 |
A. |
To power valve actuator 1. Refer to Component Location |
|
B. |
To electronic controlled engine mount control solenoid valve. Refer to Component Location |
C. |
Refer to Removal and Installation |
D. |
To heater pipe. Refer to Exploded View |
|
E. |
To water outlet. Refer to Exploded View |
F. |
Refer to Removal and Installation |
G. |
To engine mount (FR). Refer to Removal and Installation |
|
H. |
To power valve actuator 2. Refer to Component Location |
J. |
Refer to Removal and Installation |
K. |
To EVAP canister. Refer to Exploded View |
|
L. |
To intake manifold collector |
M. |
To intake manifold collector |
||
