Removal and Installation: Installation

CAUTION: When replacing ABS actuator and electric unit (control unit), calibration of ABS actuator and electric unit (control unit) is required. Refer to Work Procedure .

Installation is in the reverse order of removal.

After work is completed, bleed air from brake tube. Refer to Bleeding Brake System .
Adjust neutral position of steering angle sensor. Refer to Description .
Perform calibration of decel G sensor. Refer to Description .

CAUTION:

To install, use flare nut crowfoot and torque wrench.
Replace ABS actuator if it has been dropped or sustained an impact.
Do not install actuator by holding harness.
After installing harness connector in ABS actuator and electric unit (control unit), make sure connector is securely locked.

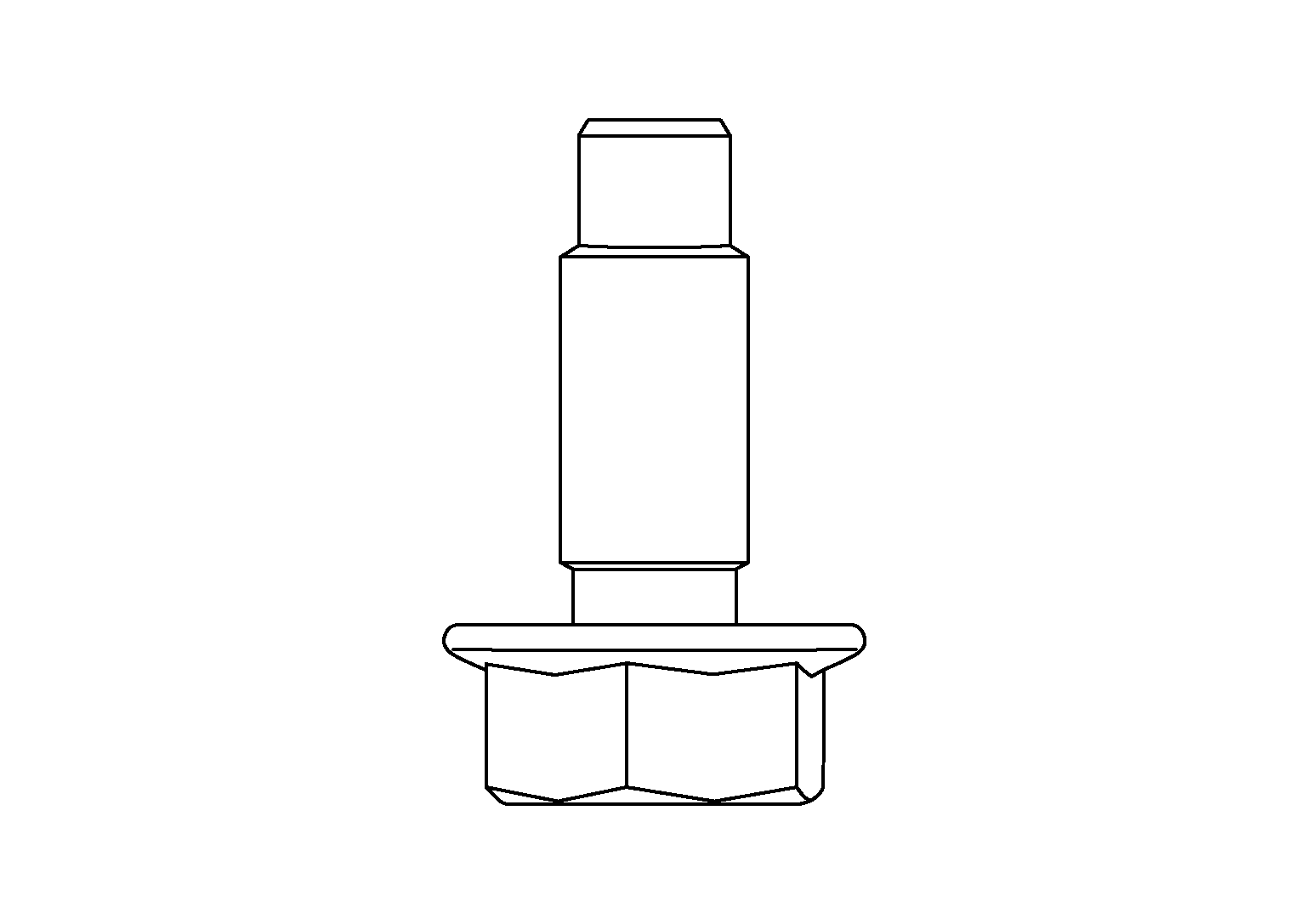

For tapered bolt, tighten bolt to specification.

Courtesy of NISSAN NORTH AMERICA, INC.

Tightening torque

: 26.0 N.m (2.6 kg-m, 19 ft-lb)

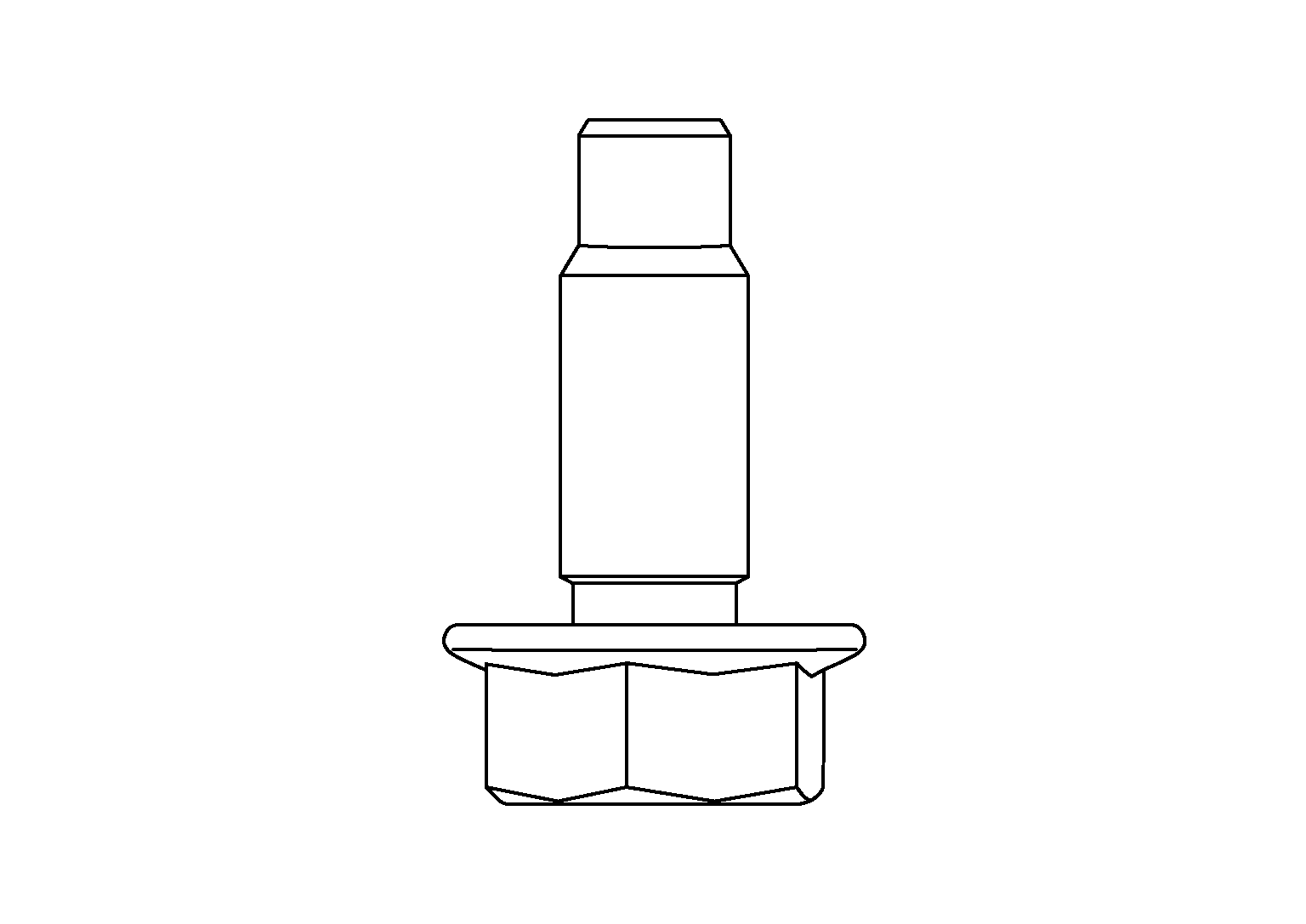

For except tapered bolt, tighten bolt to specification.

Courtesy of NISSAN NORTH AMERICA, INC.

Tightening torque

: 25.0 N.m (2.5 kg-m, 18 ft-lb)
