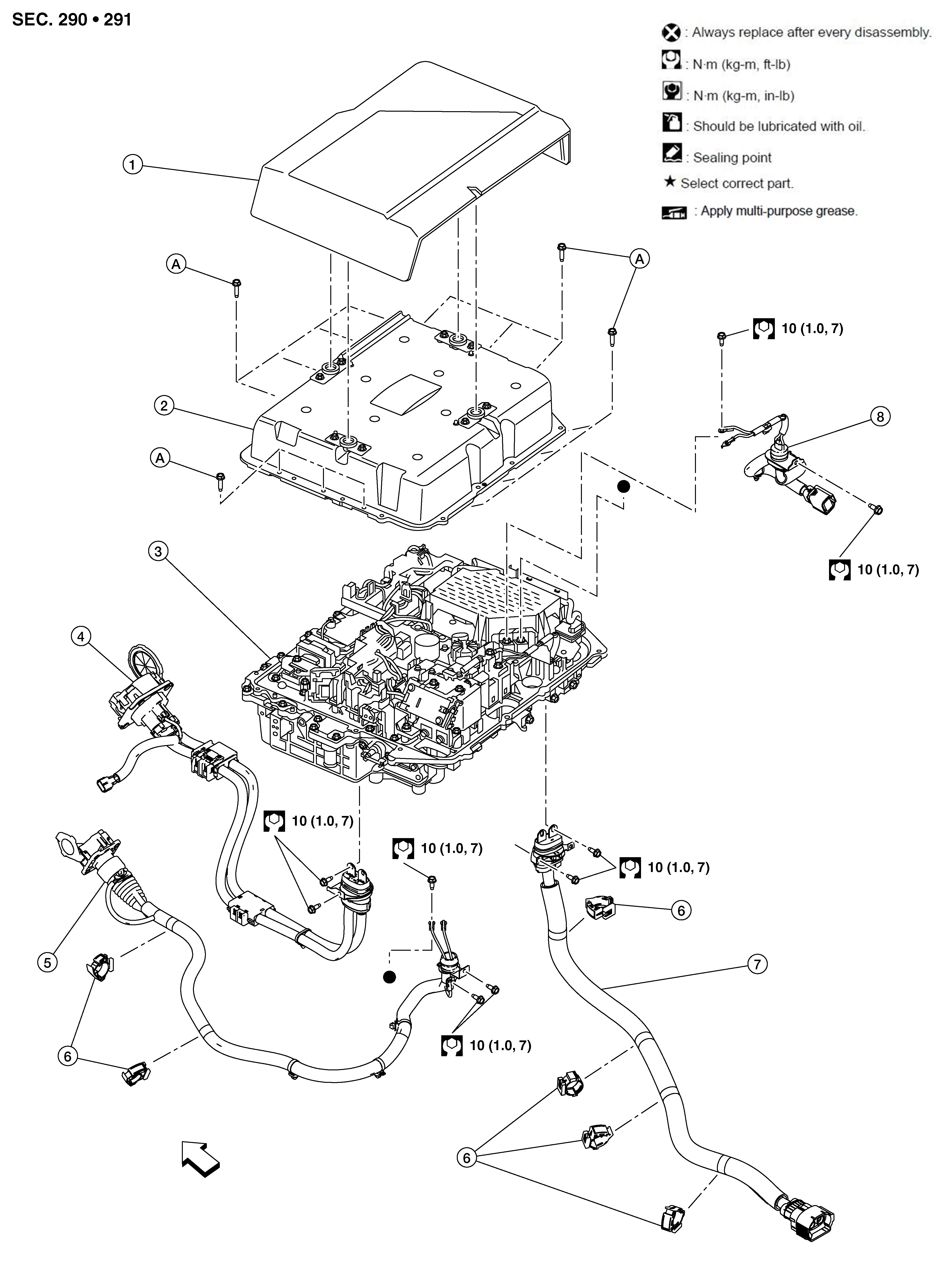

1.
PDM (Power delivery module) Cover
2.
PDM (Power delivery module) upper assembly
3.
PDM (Power delivery module)
4.
Quick charge port
5.
Normal charge port
6.
Clamp
7.
Li-ion battery high-voltage harness
8.
Electric compressor harness
A.
Bolt
Front
