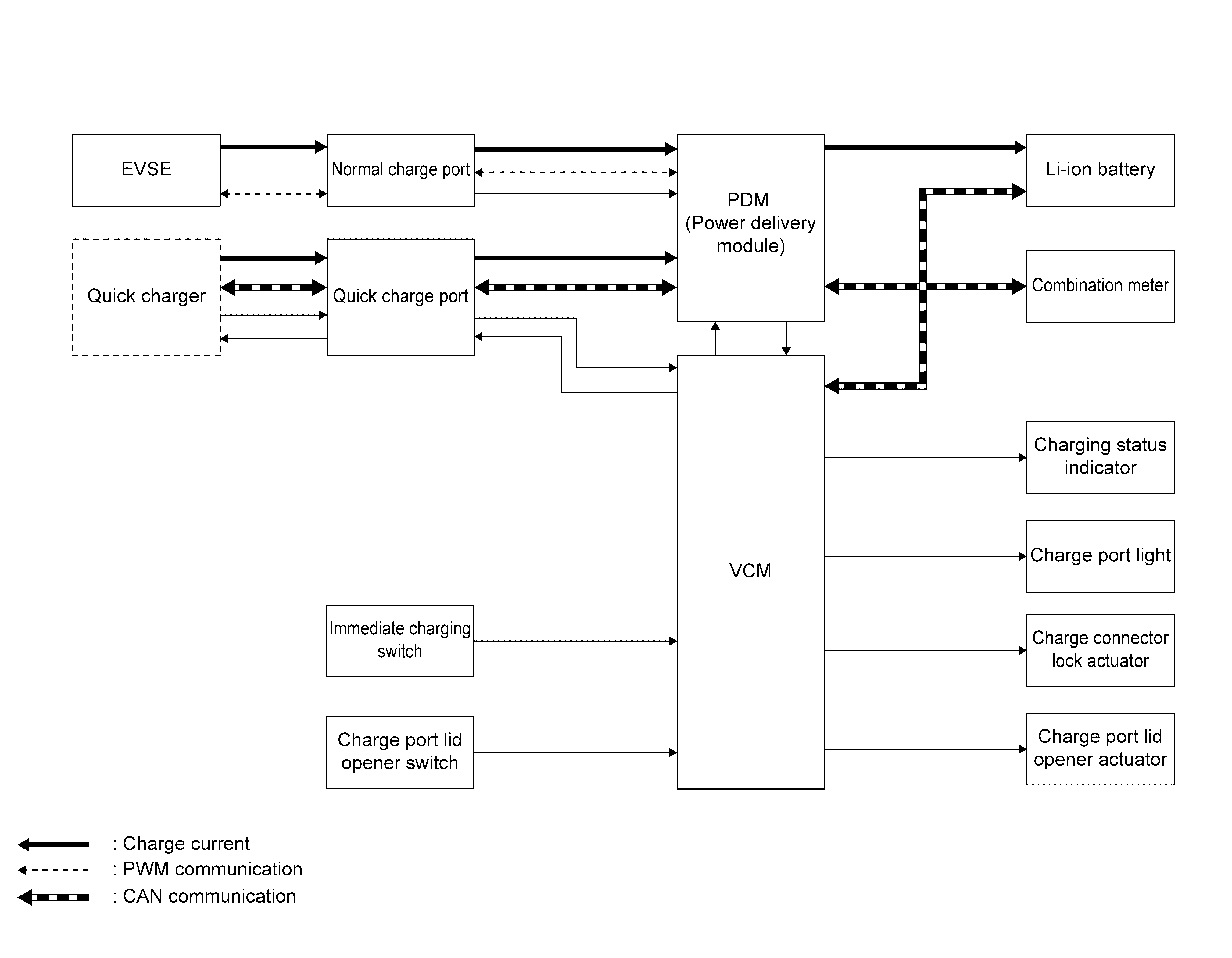

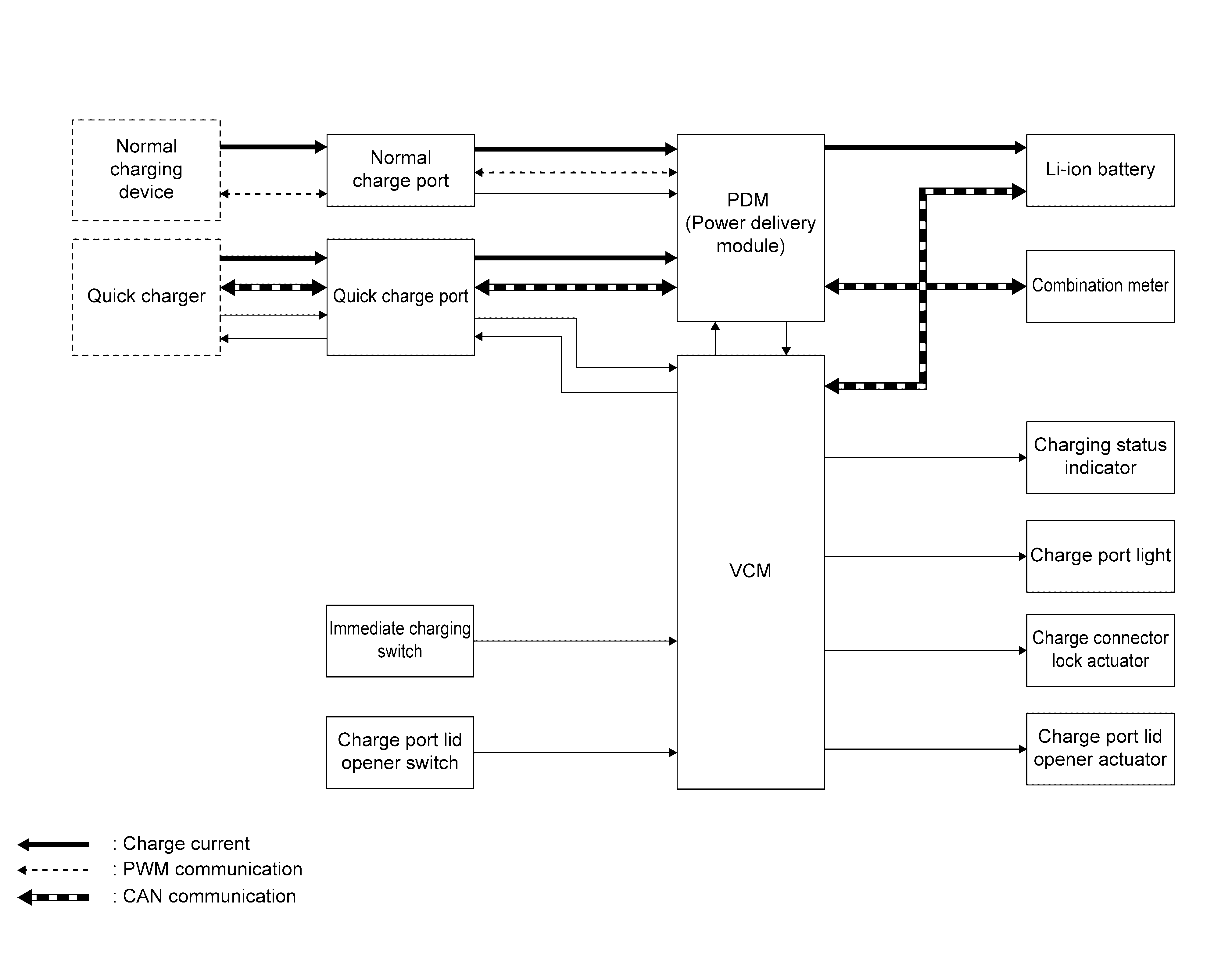

System Diagram
|
Component |
Function |
|
PDM (Power Delivery Module) |
Refer to Component Description . |
|
VCM |
VCM receives various information transmitted by each control unit of the vehicle and controls the vehicle charging. Refer to Component Description . |
|
Combination meter |
Combination meter indicates the vehicle charging status on information display. |
|
EVSE |
Refer to Component Description (120V/240V EVSE), Component Description (120V EVSE). |
|
Charging status indicator |
Refer to Component Description . |
|
Charge port lid opener switch |
Refer to Component Description . |
|
Immediate charging switch |
Refer to Component Description . |
|
Quick charge port (If equipped) |
Refer to Component Description (62kWh LI-ION BATTERY), Component Description (40kWh LI-ION BATTERY). |
|
Charge port light |
Refer to Component Description . |
|
Charge connector lock actuator |
Refer to Component Description . |
|
Normal charge port |
Refer to Component Description (62kWh LI-ION BATTERY), Component Description (40kWh LI-ION BATTERY). |
|
Charge port lid opener actuator |
Refer to Component Description . |
