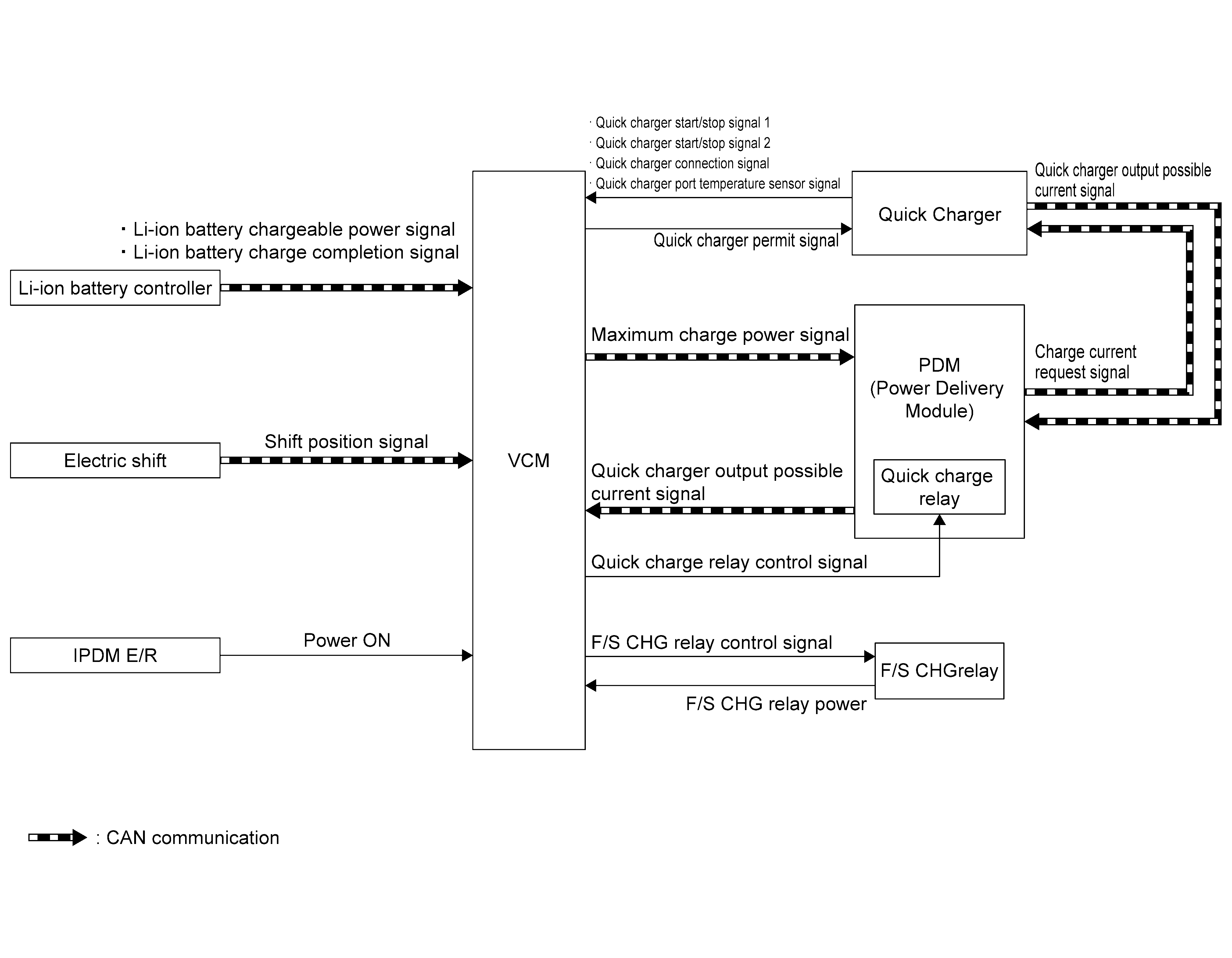

System Diagram

Component

Function

VCM

VCM controls the quick charge depending on each signal.

PDM (Power Delivery Module)

• PDM connects with quick charger through quick charge port and transmits/receives each signal to VCM via CAN communication.
• PDM turns ON quick charge relay and starts the quick charge according to signal from VCM.

For the details, Refer to Component Description .

LBC

LBC transmits the Li-ion battery status to VCM via CAN communication signal.

F/S CHG relay

Refer to Component Description .

Electric shift

Electric shift transmits the shift position signal to VCM via CAN communication signal.

IPDM E/R

IPDM E/R inputs power ON signal to VCM
