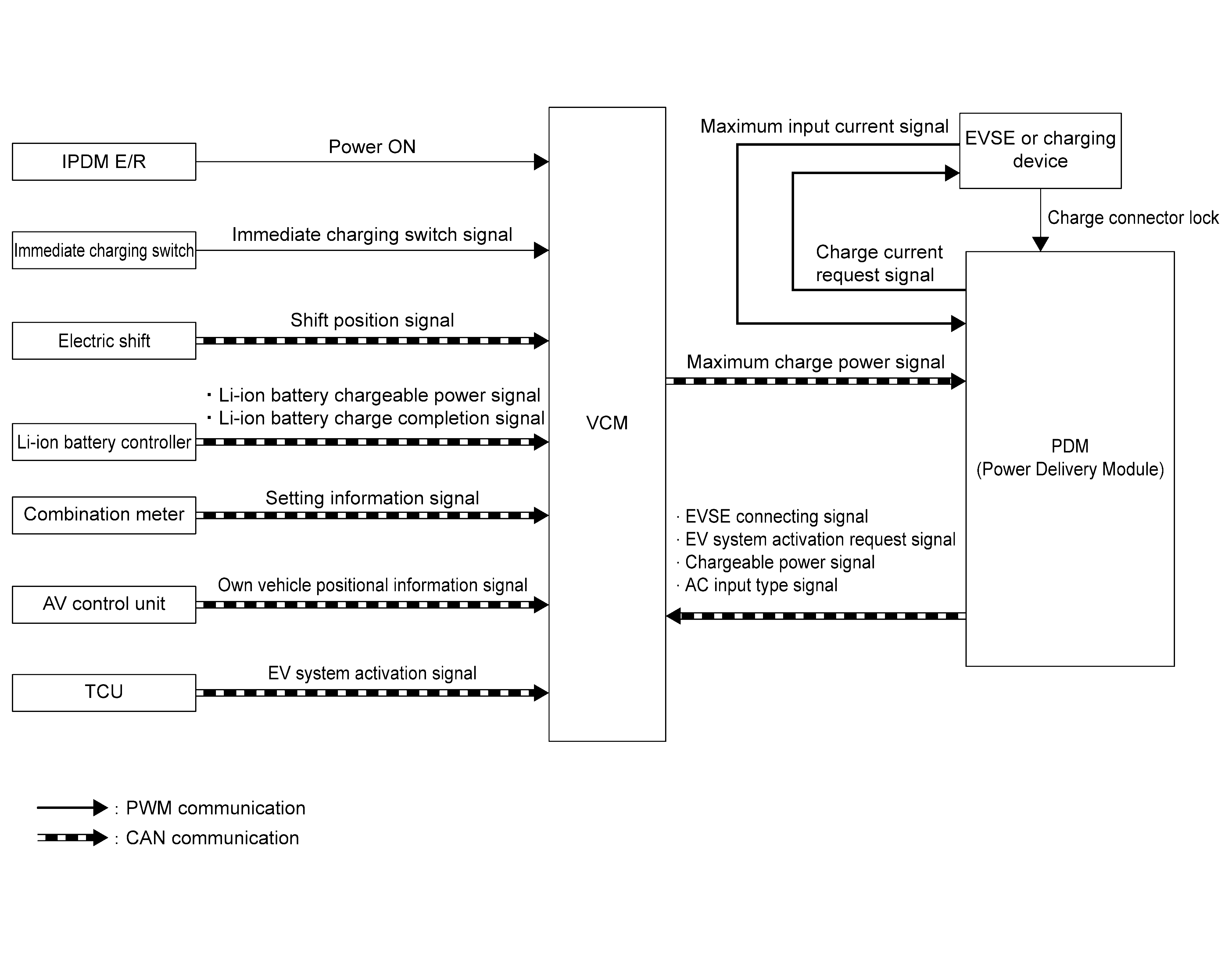

System Diagram
|
Component |
Function |
|
VCM |
VCM controls the normal charge depending on each signal. |
|
PDM (Power Delivery Module) |
For the details, Refer to Component Description . |
|
LBC |
LBC transmits the Li-ion battery status to VCM via CAN communication signal. |
|
F/S CHG relay |
Refer to Component Description . |
|
Electric shift |
Electric shift transmits the shift position signal to VCM via CAN communication signal. |
|
IPDM E/R |
IPDM E/R inputs Power ON signal to VCM |
|
TCU |
TCU transmits the EV system activation signal to VCM via CAN communication signal. |
|
Immediate charging switch |
Refer to Component Description . |
|
EVSE |
Refer to Component Description (120V/240V EVSE), Component Description (120V EVSE). |
|
Combination meter |
Combination meter transmits setting information of the timer charge to VCM via CAN communication. |
|
AV control unit |
AV control unit transmits own vehicle positional information to VCM via CAN communication. |
