POWER WINDOW MAIN SWITCH : Removal & Installation: Installation

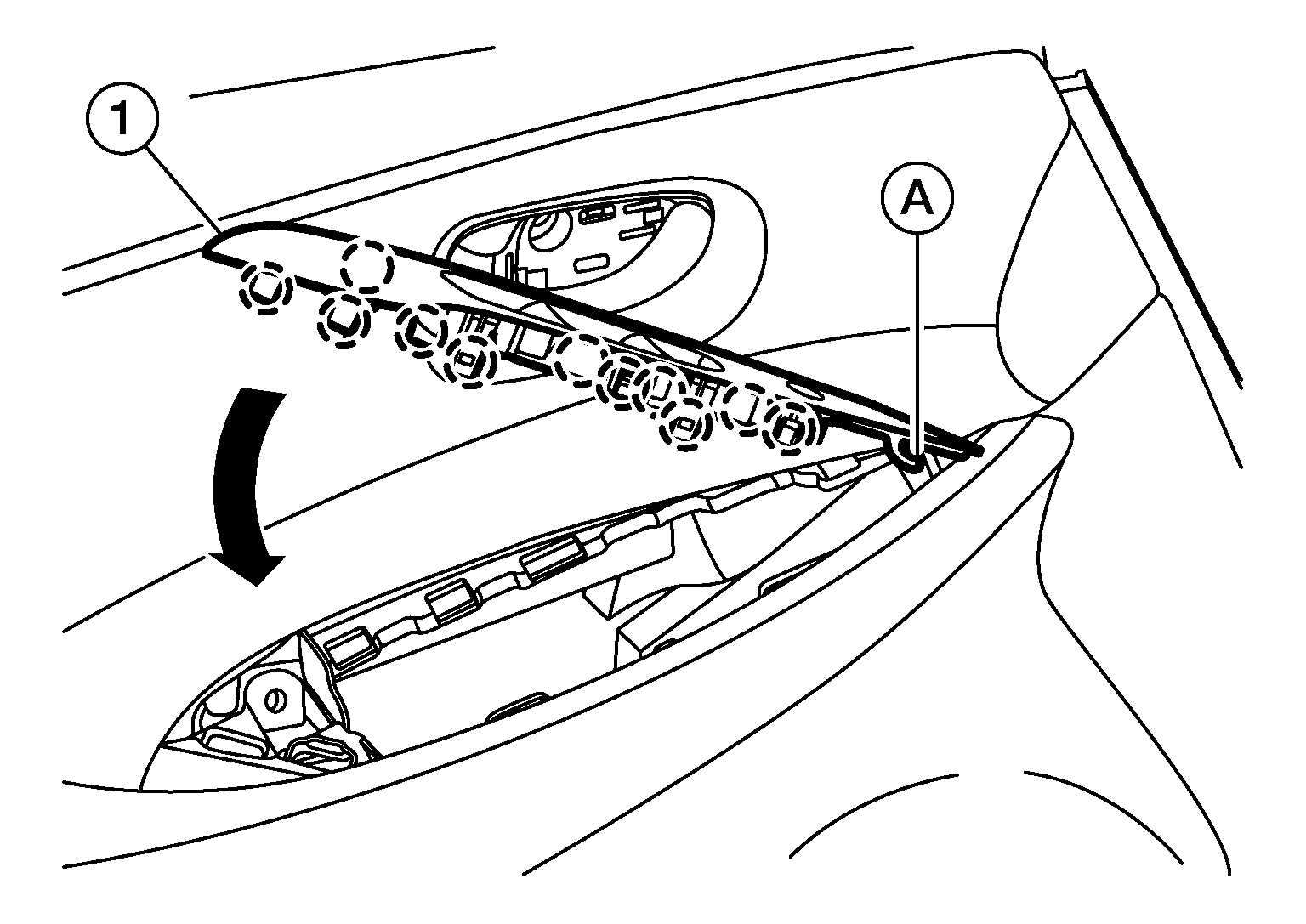

Insert locating tab (A) into front door finisher.

Courtesy of NISSAN NORTH AMERICA, INC.

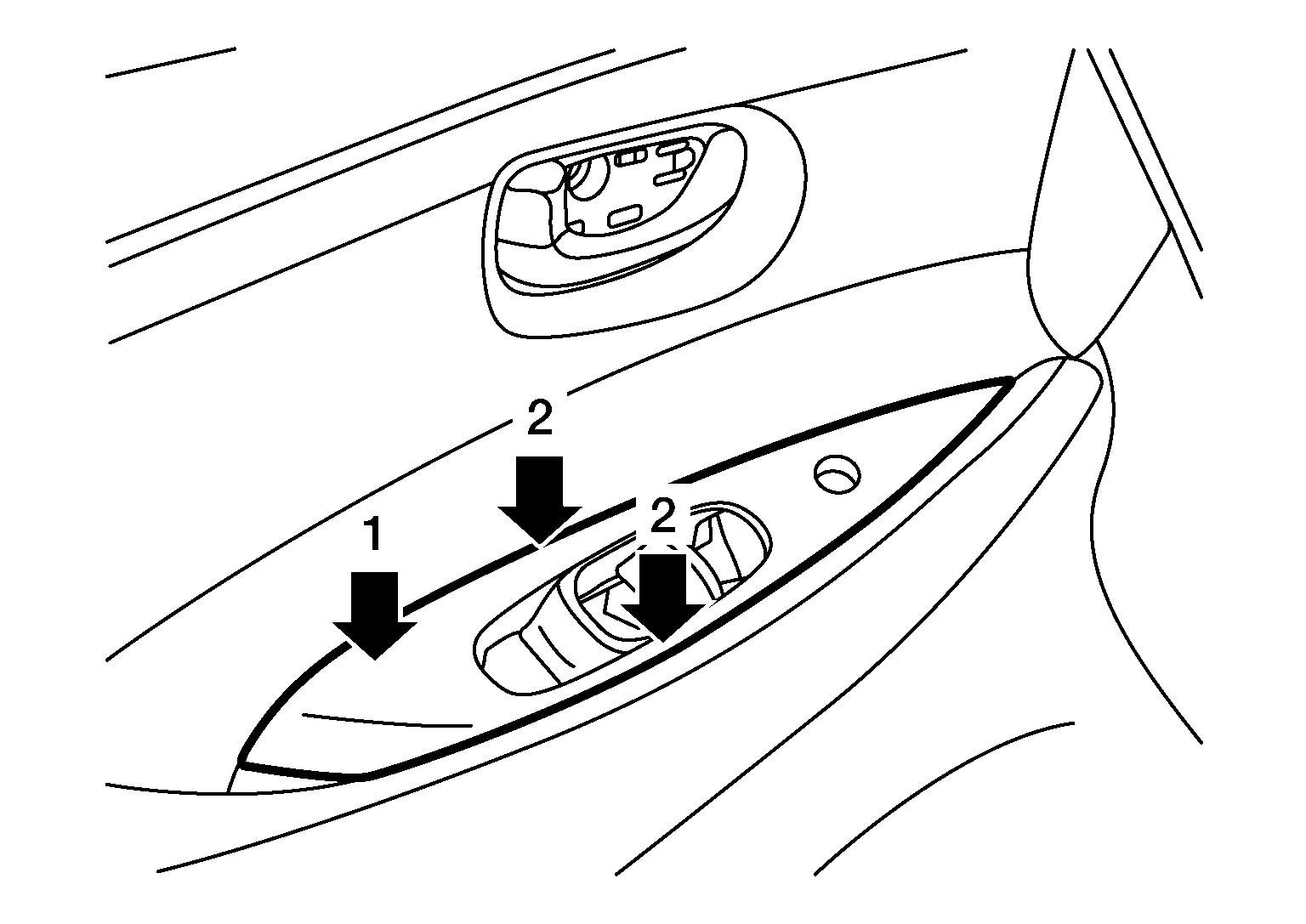

Rotate power window switch finisher (1) and insert pawls into front door finisher in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Installation of the remaining components is in the reverse order of removal.

NOTE: If main power window and door lock/unlock switch is replaced or removed, perform the initialization procedure. Refer to Description .
