Description
>>
System (ADAS Control Unit)
>>
System Description
>>

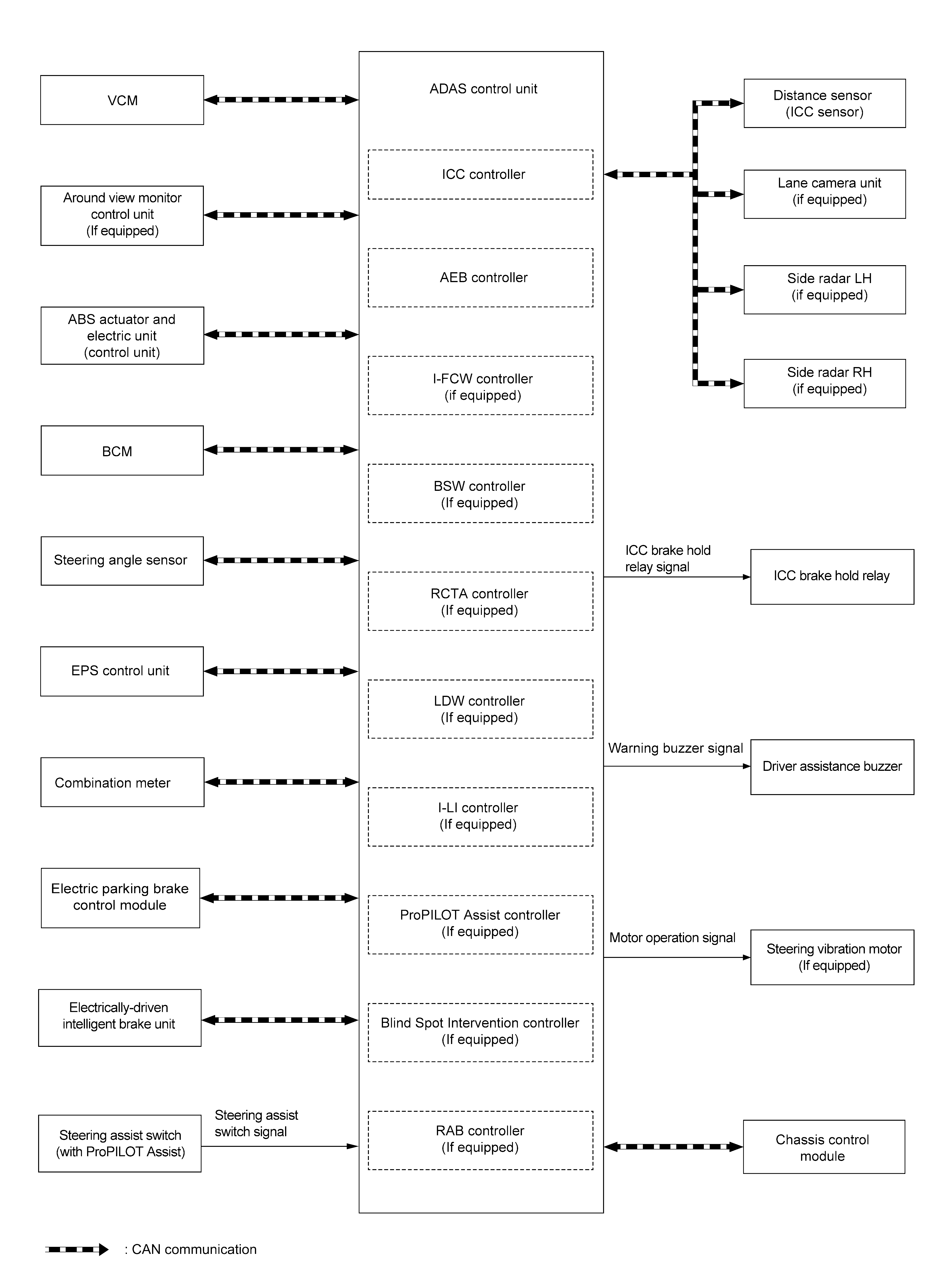

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
