Exploded View

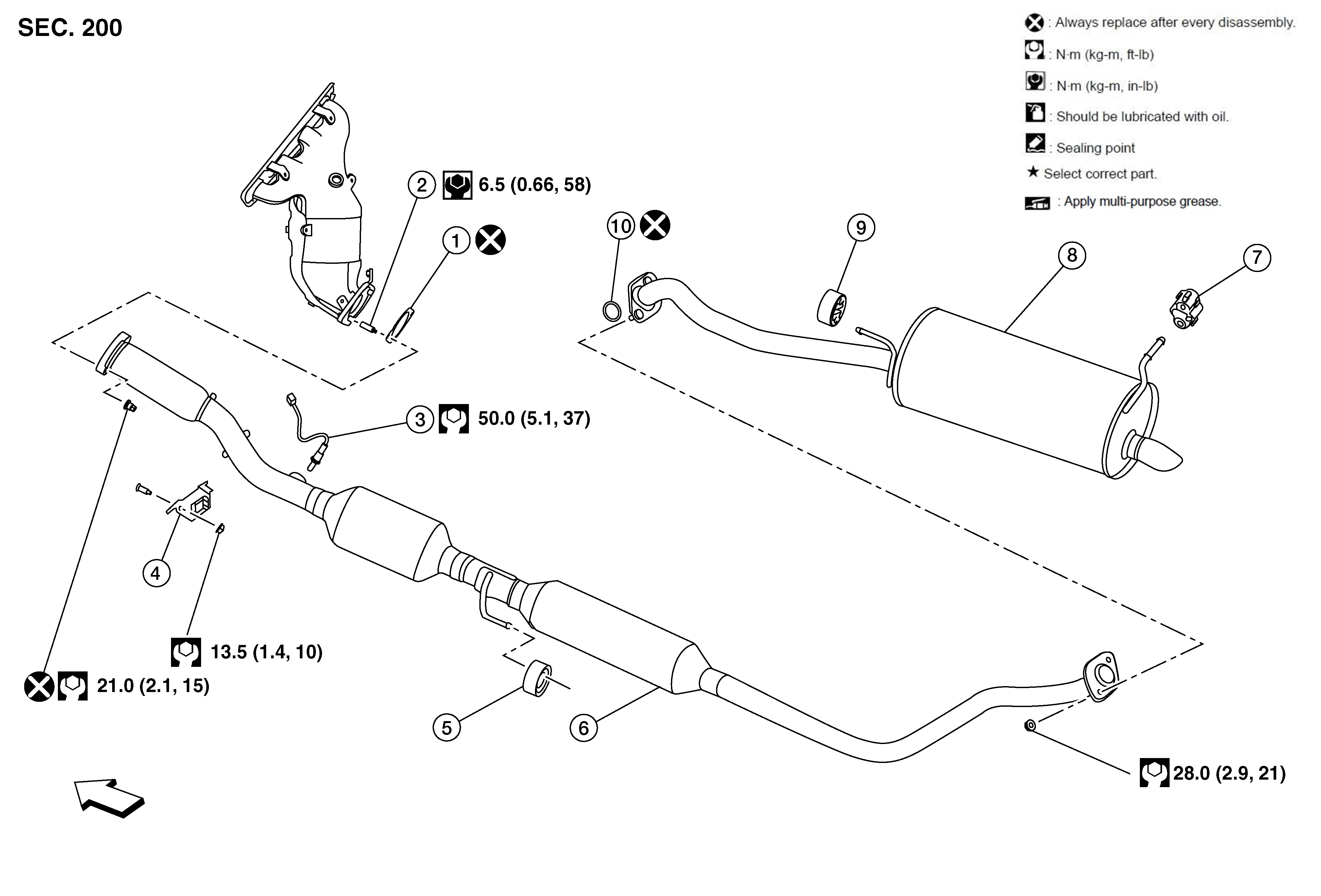

Fig 1: Exhaust System Components With Torque Specifications

GNSAWBIA3019Z-019

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Gasket	2.	Stud	3.	Heated oxygen sensor 2
4.	Mounting rubber	5.	Mounting rubber	6.	Main muffler
7.	Mounting rubber	8.	Muffler	9.	Mounting rubber
10.	Ring gasket		Front
