Exploded View

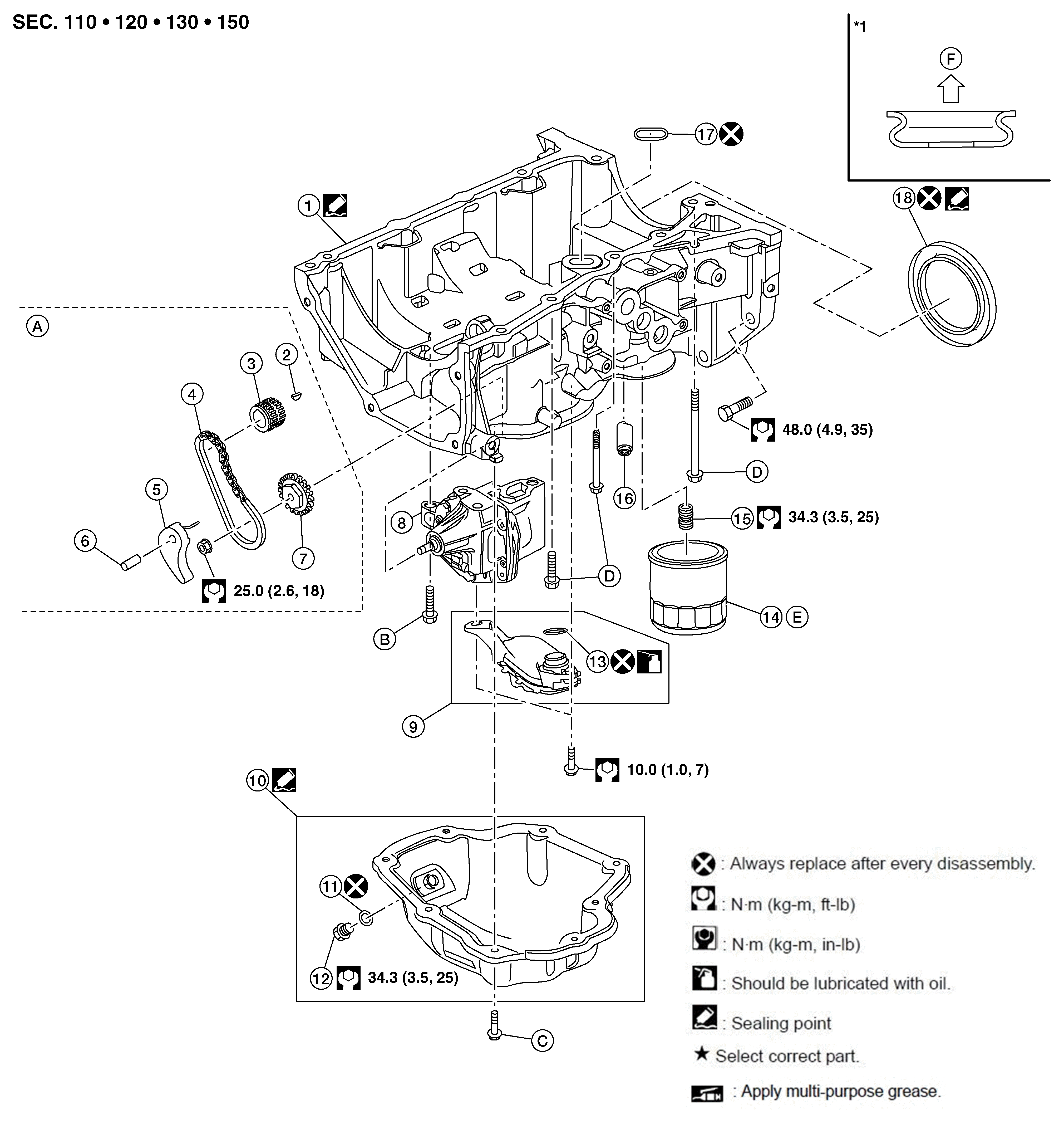

Fig 1: Oil Pump Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pan (upper)	2.	Crankshaft key	3.	Crankshaft sprocket
4.	Oil pump drive chain	5.	Oil pump chain tensioner (for oil pump drive chain)	6.	Oil pump chain tensioner shaft
7.	Oil pump sprocket	8.	Oil pump	9.	Oil strainer
10.	Oil pan (lower)	11.	Drain plug washer	12.	Oil pan drain plug
13.	O-ring	14.	Oil filter	15.	Oil filter stud
16.	Relief valve	17.	O-ring	18.	Rear oil seal
A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .	C.	Refer to Removal and Installation (Lower Oil Pan) .
D.	Refer to Removal and Installation (Upper Oil Pan) .	E.	Refer to Removal and Installation .	F.	Oil pan (lower) side
