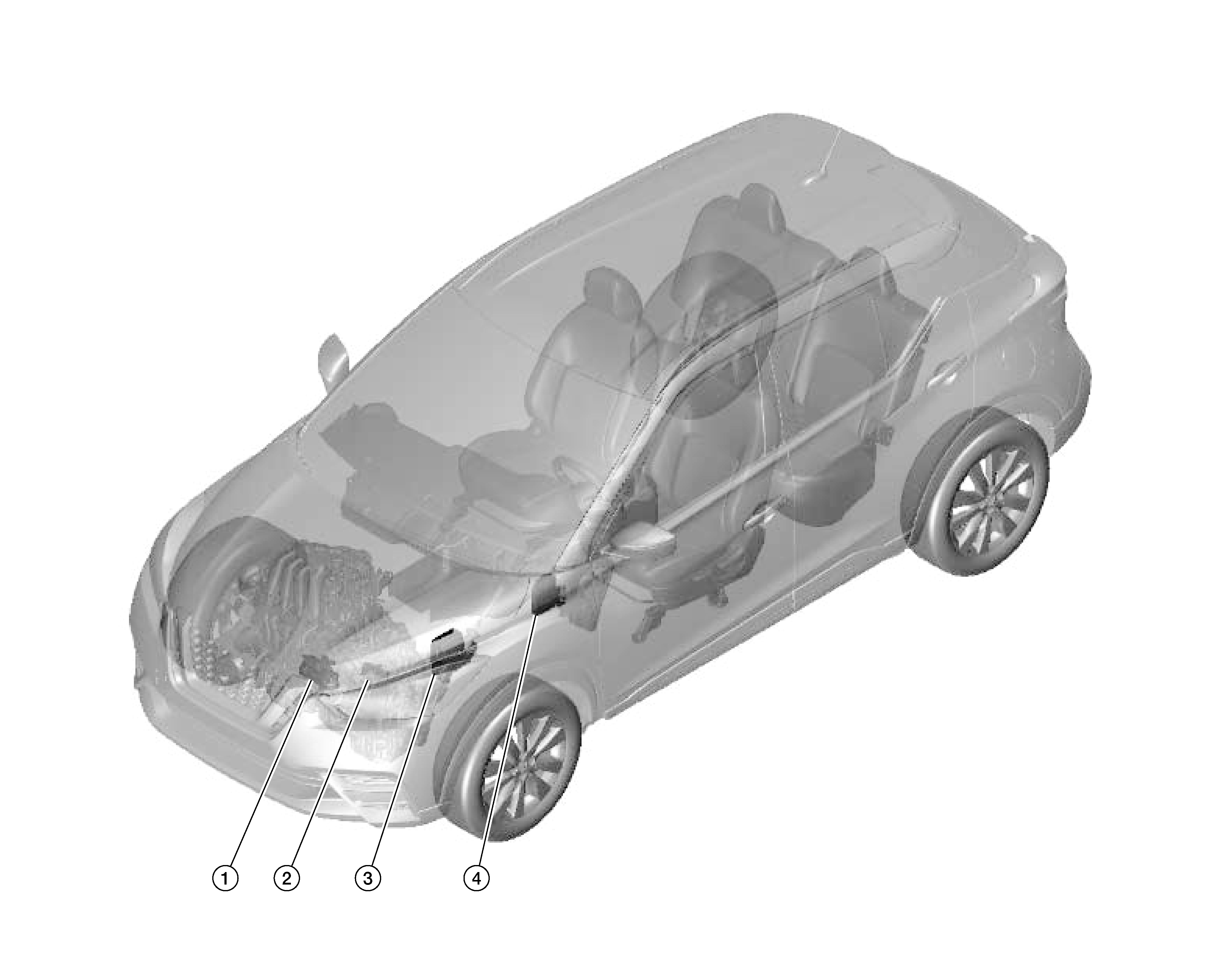

Component Location
|
No. |
Component |
Function |
|
1. |
Starter motor |
Refer to Starter Motor. |
|
2. |
Transmission range switch |
Supplies power to the starter cut relay (inside IPDM E/R) when the CVT shift selector is shifted into the P or N position. |
|
3. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R operates the starter cut relay when the ignition switch is in the start position. Refer to Component Location for detailed component location. |
|
4. |
BCM (Body Control Module) |
BCM controls the starter relay. Refer to Component Location for detailed component location. |
