Exploded View

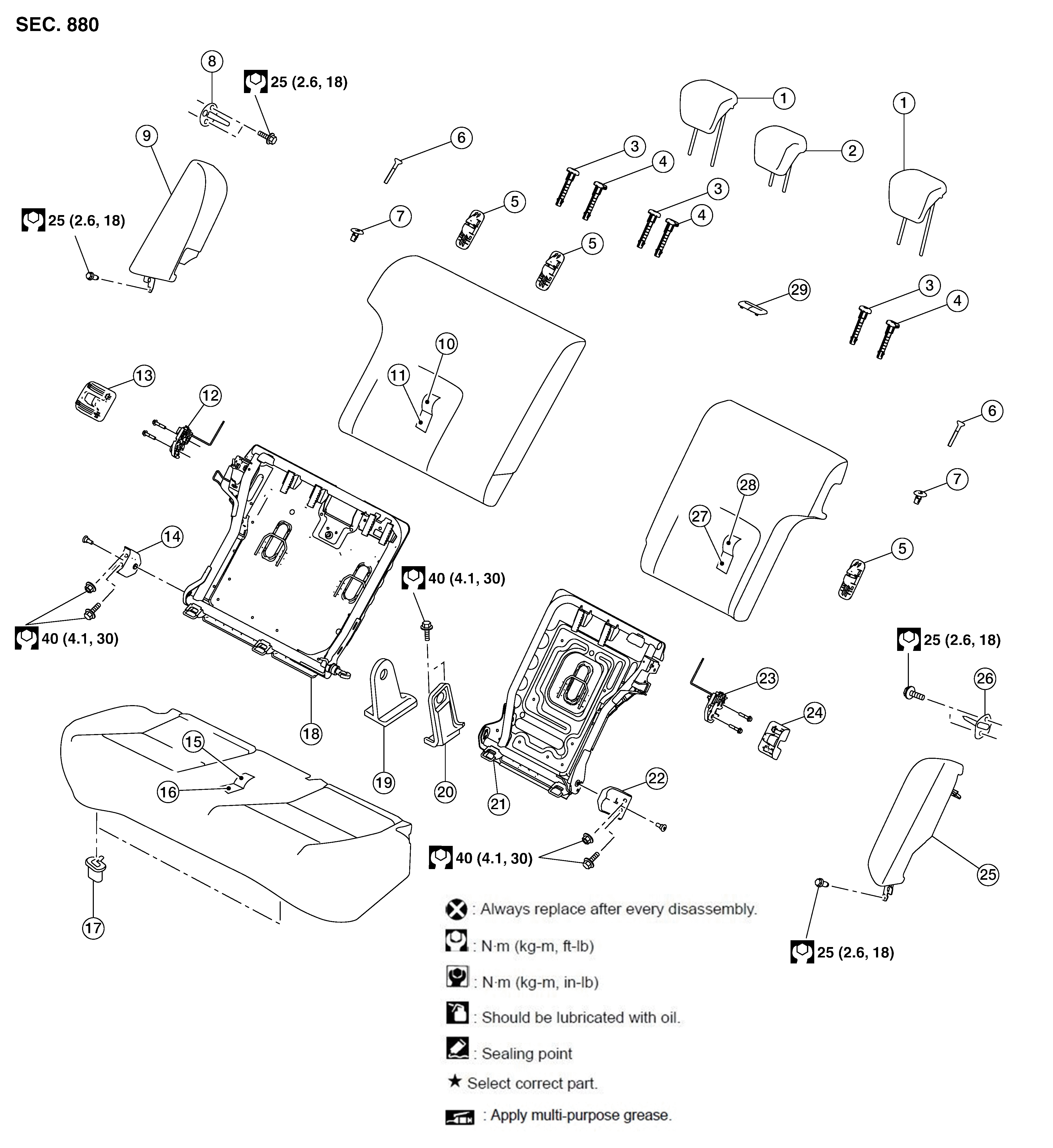

Fig 1: Rear Seat With Torque Specifications
GNSAWJIA0527Z-527Courtesy of NISSAN NORTH AMERICA, INC.

1.

Headrest (RH/LH)

2.

Headrest (center)

3.

Headrest holder (free)

4.

Headrest holder (locked)

5.

Tether anchor finisher

6.

Seatback latch release knob

7.

Seatback latch release knob finisher

8.

Seatback striker (RH)

9.

Rear seat bolster (RH)

10.

Seatback trim (RH)

11.

Seatback pad (RH)

12.

Seatback latch assembly (RH)

13.

Seatback latch finisher (RH)

14.

Seatback hinge (RH)

15.

Seat cushion trim

16.

Seat cushion pad

17.

Seat cushion hook

18.

Seatback frame assembly (RH)

19.

Seatback hinge finisher

20.

Seatback hinge (center)

21.

Seatback frame assembly (LH)

22.

Seatback hinge (LH)

23.

Seatback latch assembly (LH)

24.

Seatback latch finisher (LH)

25.

Rear seat bolster (LH)

26.

Seatback striker (LH)

27.

Seatback pad (LH)

28.

Seatback trim (LH)

29.

Seat belt guide
